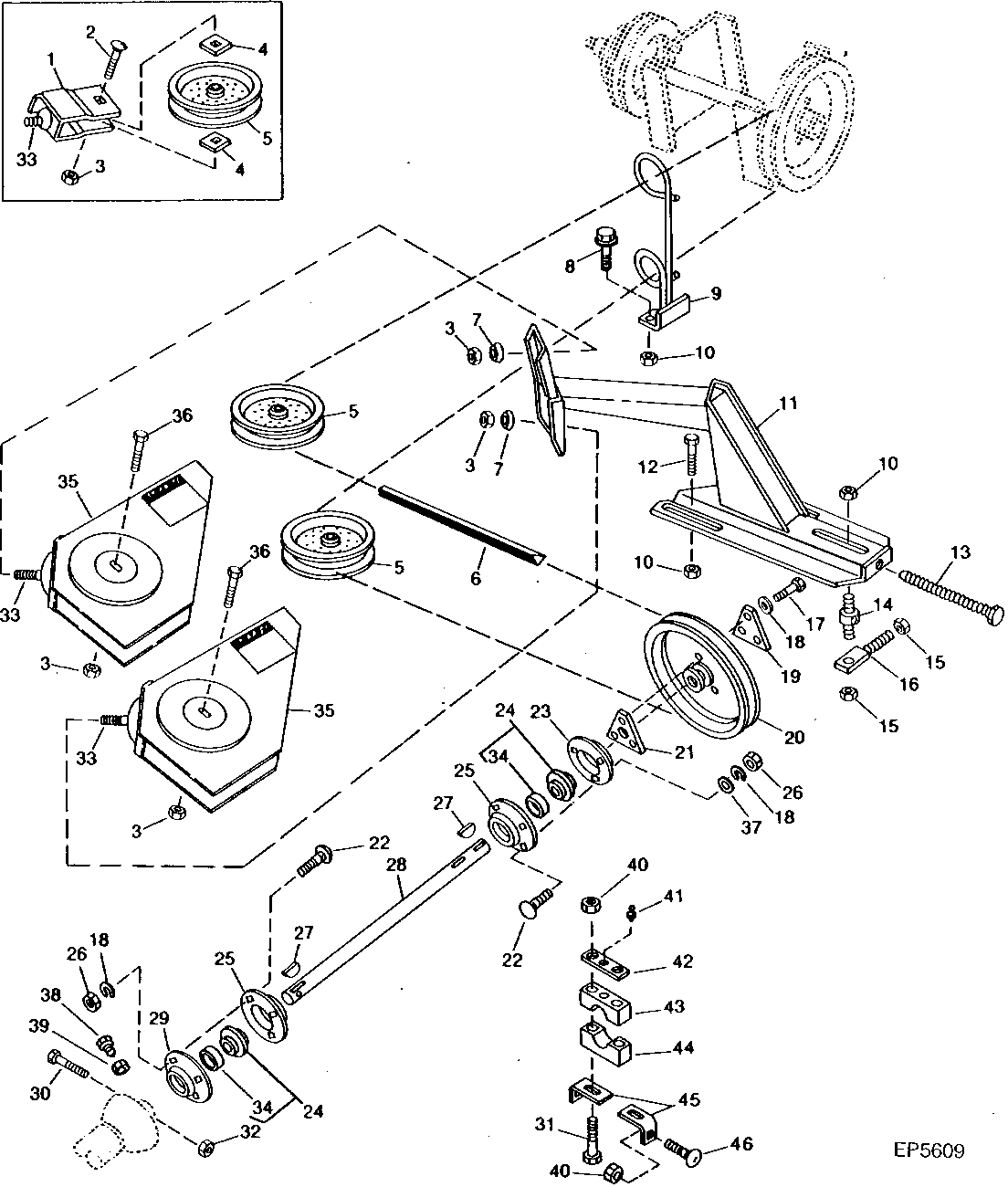

MAIN DRIVE SHAFT, BELT AND SHEAVE (DRIVELINE SUPPORT BEARING TO MAIN COUNTER SHAFT) [A23]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW24824	2	BRACKET	-
2	03H1780	2	Bolt	5/8" X 2-1/2"
3	K40015	4	Lock Nut	5/8"
4	W36137	4	WASHER	-
5	AW24823	2	PULLEY	-
6	W36215	1	BELT	-
7	W36112	2	WASHER	-
8	03H1659	2	Bolt	1/2" X 1"
9	AW24833	1	GUIDE	-
10	A11455	5	NUT	-
11	AW24821	1	BRACKET	-
12	T56211	2	Screw	1/2" X 1"
13	AW24769	1	BOLT	-
14	W36214	1	NUT	-
15	K40014	2	Lock Nut	1/2"
16	AW24845	1	EYEBOLT	-
17	19H1944	3	Cap Screw	3/8" X 2-3/4"
18	12H304	9	Lock Washer	3/8"
19	W36163	1	PLATE	-
20	AW24784	1	PULLEY	540 RPM (12 1/2" (320MM) O.D.)
20	AW24790	1	PULLEY	1000 RPM (9 1/2" (240MM) O.D.)
21	W36162	1	PLATE	-
22	03H1500	6	Bolt	3/8" X 1"
23	AW24789	1	FLANGE	-
24	AE48965	2	BALL BEARING	(SUB FOR AW24017 AND JD9366)
25	C3056E	2	Pressed Flanged Housing	-
26	14H1076	6	Nut	3/8"
27	26H90	2	Shaft Key	5/16" X 1-1/8"
28	W36161	1	DRIVE SHAFT	21' (6.4M), 25' (7.6M), 30' (9.1M)
28	W36489	1	SHAFT	36' (10.9M)
29	AE26161	1	Pressed Flanged Housing	-
30	19H1904	1	Cap Screw	5/16" X 3"
31	03H1506	2	Bolt	(A) 5/16" X 3"
32	K40002	1	Lock Nut	5/16"
33	09H1587	2	Bolt	5/8" X 2"
34	JD9220	2	Eccentric Locking Collar	(SUB FOR AW24035)
35	AW25055	2	BRACKET	-
36	19H1708	2	CAP SCREW	5/8" X 1-3/4"
37	24M7028	3	Washer	10.500 X 20 X 2 MM
38	22H836	1	Set Screw	3/8" X 1"
39	14H732	1	Nut	3/8"
40	K40002	4	Lock Nut	(A) 5/16"
41	JD7803	1	Lubrication Fitting	(A)
42	AW26318	1	BEARING CAP	(A)
43	W36466	1	CHOCK BLOCK	(A) (WITH GREASE HOLE)
44	W36467	1	CHOCK BLOCK	(A) (NO GREASE HOLE)
45	W36468	2	PLATE	(A)
46	03H1540	2	Bolt	(A) 5/16" X 3/4"
