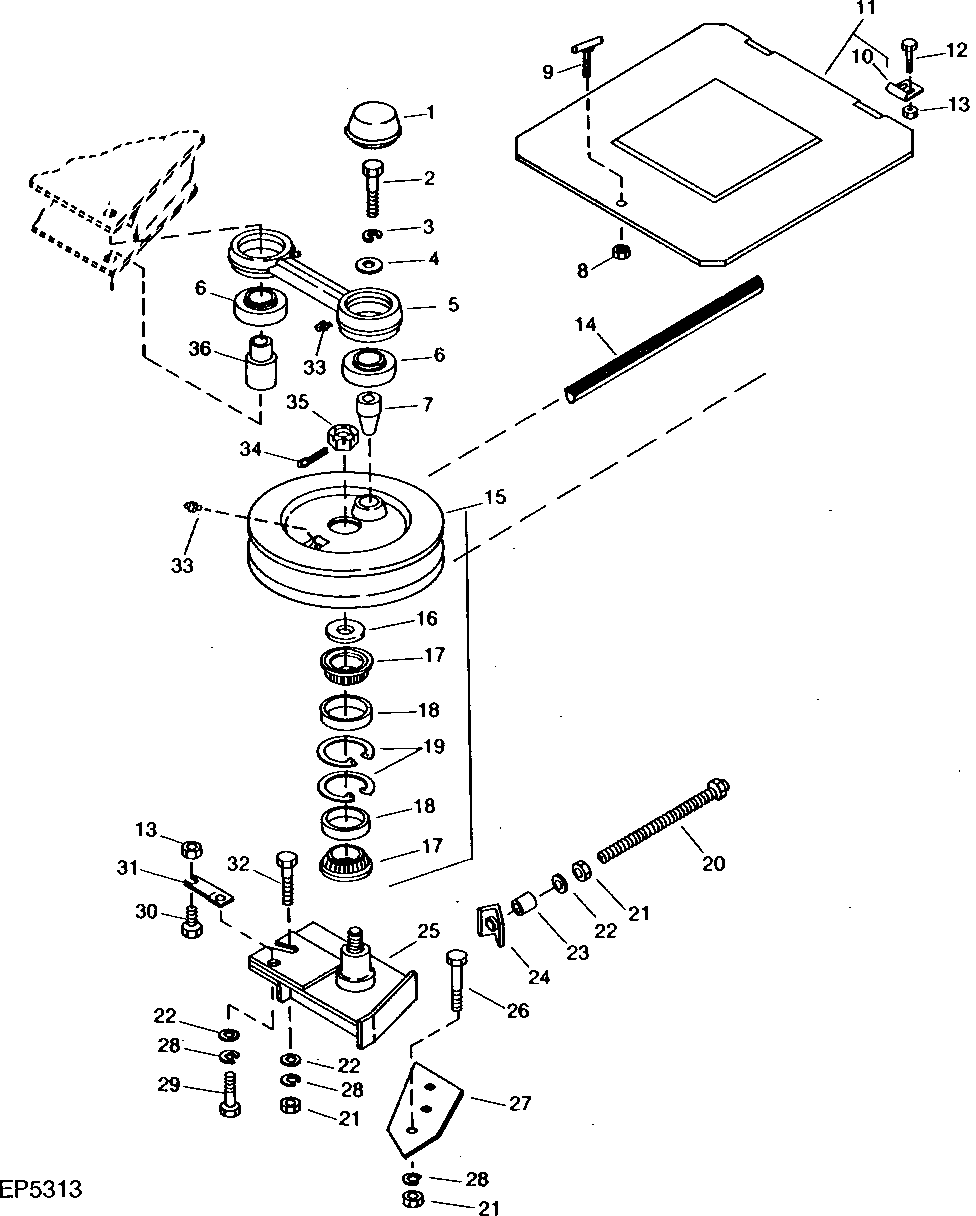

KNIFE DRIVE BELT, SHEAVES, PITMAN AND SHIELD (36 FT (10.9M) WINDROWER) [B07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W36329	1	CAP	-
2	19H3520	1	Cap Screw	1/2" X 3-1/4" (HS, SAE 8)
3	12H301	1	Lock Washer	1/2"
4	24H1252	1	Washer	1/2" X 1-1/2" X 0.060"
5	AW26493	1	PITMAN	(INCLUDES (2) AW26535 AND (2) JD7842)
6	AW26535	2	BEARING	-
7	W36486	1	PIN FASTENER	-
8	K40003	1	Lock Nut	3/8"
9	AW24915	1	BOLT	-
10	W36234	2	HINGE	-
11	AW24800	1	COVER	(INCLUDES (2) W36234)
12	N10214	4	Self-Locking Screw	3/8" X 1"
13	N10215	5	Lock Nut	3/8"
14	W36142	1	BELT	-
15	AW26492	1	PULLEY	(INCLUDES W35654, (2) AW24927, (2) JD8271, JD7842 AND (2) 40M7090)
16	W35654	1	WASHER	-
17	AW24927	2	BEARING CONE	(INCLUDES SEAL)
18	JD8271	2	Bearing Cup	-
19	40M7090	2	Snap Ring	(SUB FOR W36487)
20	AW24769	1	BOLT	-
21	14H1040	5	Nut	1/2"
22	24H1341	6	Washer	17/32" X 15/16" X 0.060"
23	L36649	1	Spacer	-
24	AW24768	1	NUT	-
25	AW26491	1	SPINDLE	-
26	03H1596	3	Bolt	1/2" X 3"
27	W36141	1	PLATE	-
28	12H301	5	Lock Washer	1/2"
29	19H1721	1	CAP SCREW	1/2" X 1-1/2"
30	03H1765	1	Bolt	3/8" X 3/4"
31	AW24765	1	BRACKET	-
32	03H1764	1	Bolt	1/2" X 1-3/4"
33	JD7842	3	Lubrication Fitting	-
34	11M7087	1	Cotter Pin	4 X 40 MM
35	14H902	1	Nut	3/4", SLOTTED
36	W36488	1	PIN FASTENER	-

KNIFE DRIVE BELT, SHEAVES, PITMAN AND SHIELD (36 FT (10.9M) WINDROWER) [B07]
