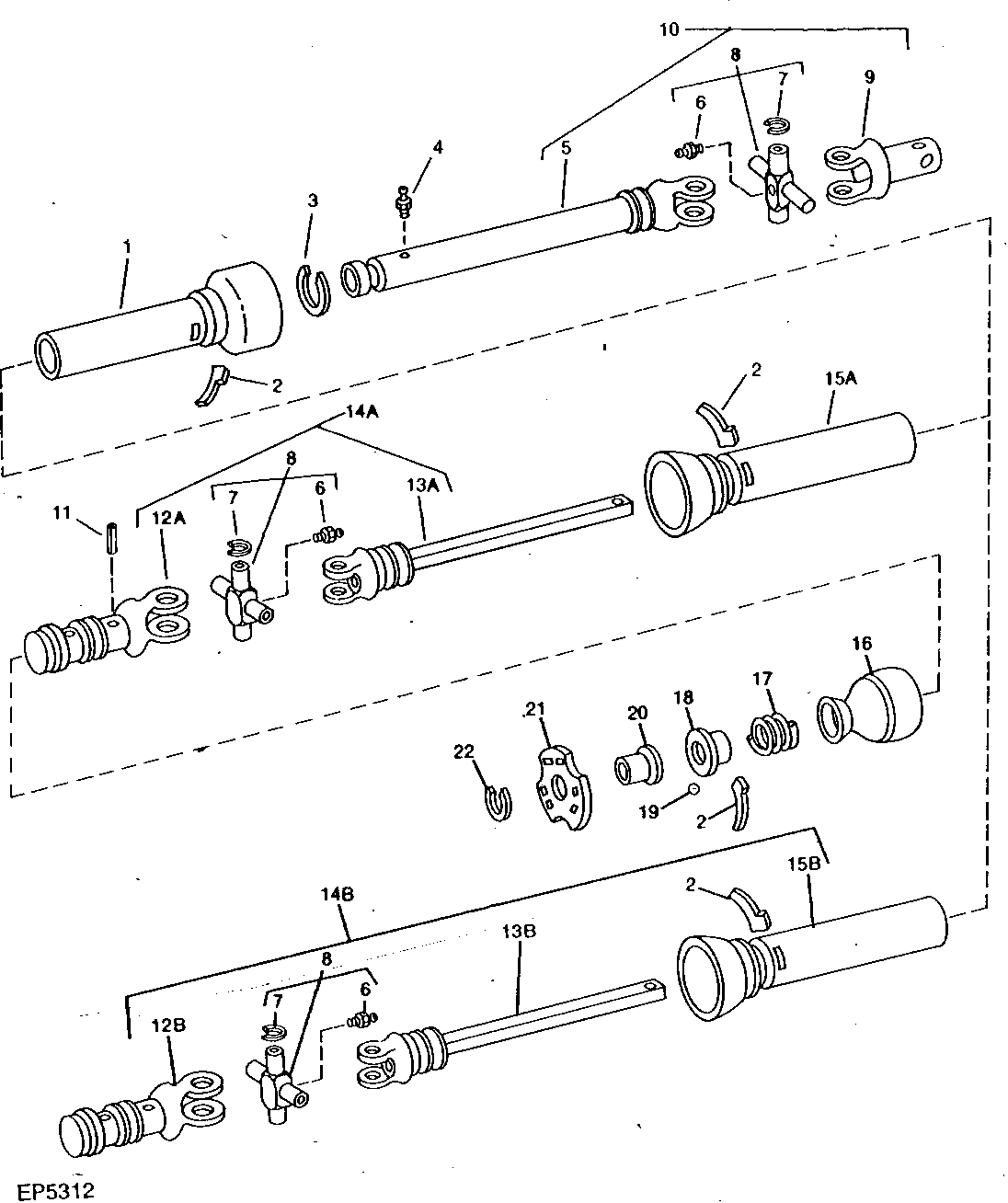

DRIVELINE (TRACTOR TO DRIVELINE SUPPORT BEARING) [A21]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AW20917	1	Powershaft Shield	-
2	W36368	4	PTO SHIELD RETAINER	-
3	W33238	1	Bearing	-
4	JD7842	2	Lubrication Fitting	-
5	AW24891	1	YOKE WITH TUBE	-
6	JD7760	2	Lubrication Fitting	-
7	BP13669	2	Snap Ring	-
8	AE23716	1	Cross And Bearing Assembly	-
9	W36292	1	UNIVERSAL JOINT YOKE	-
10	AW24890	1	UNIVERSAL JOINT WITH TUBE	-
11	34H386	1	Spring Pin	1/4" X 2"
16	AE30924	1	PTO POWR-GARD TM SHIELD	-
17	E61946	1	SPRING	-
18	E52199	1	RETAINER	-
19	E51019	3	BALL	-
20	AE30920	1	LATCH	-
21	E52198	1	PTO POWR-GARD TM SHIELD	-
22	E52817	1	Snap Ring	-
12A	E52213	1	YOKE	1000 RPM, (SUB FOR W36293)
12A	E52207	1	UNIVERSAL JOINT YOKE	540 RPM, (SUB FOR W36294)
12B	ES10872	1	UNIVERSAL JOINT YOKE	1000 RPM
12B	ES10871	1	UNIVERSAL JOINT YOKE	540 RPM
13A	AW24898	1	YOKE WITH SHAFT	-
13B	ES10834	1	YOKE	-
14A	AW24895	1	UNIVERSAL JOINT WITH SHAFT	1000 RPM
14A	AW24889	1	UNIVERSAL JOINT WITH SHAFT	540 RPM
14B	ES10788	1	U-JOINT WITH SHAFT & SHIELD	540 RPM
14B	ES10789	1	U-JOINT WITH SHAFT & SHIELD	1000 RPM
15A	AW24897	1	POWERSHAFT SHIELD	-
15B	ES10832	1	KIT	-

DRIVELINE (TRACTOR TO DRIVELINE SUPPORT BEARING) [A21]
