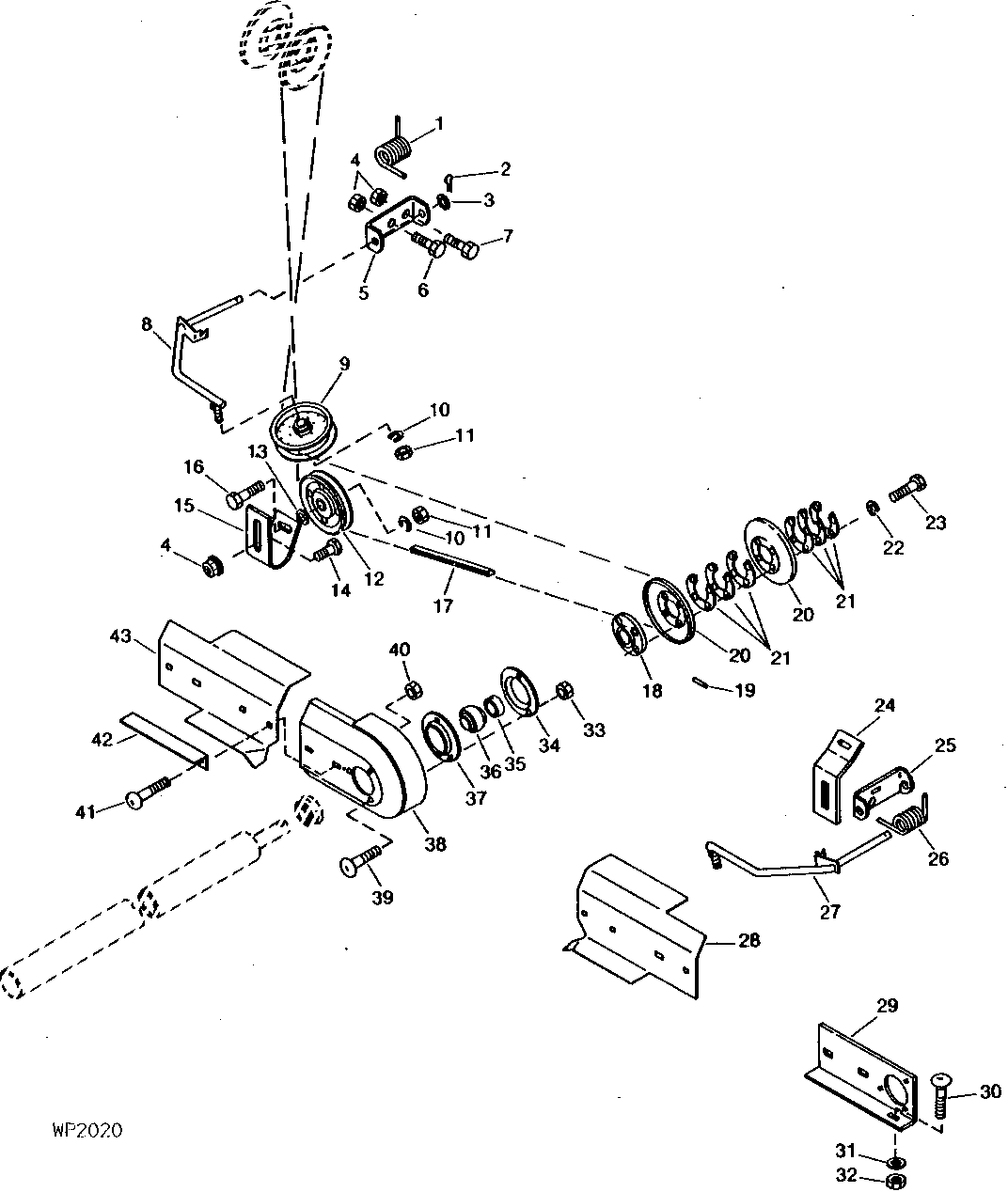

DRAPER DRIVE (DRAPER DRIVE SHAFT TO DRIVE ROLLER) [B19]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W36149	1	TORSION SPRING	R.H.
2	11M7015	2	Cotter Pin	3.200 X 25 MM
3	24H1341	1	Washer	17/32" X 15/16" X 0.060"
4	A11455	6	NUT	1/2"
5	W36150	2	BRACKET	(1 USED ON 36' (10.9M), R.H.)
6	19H1792	2	Cap Screw	1/2" X 1"
7	T56211	2	Screw	1/2" X 1"
8	AW24776	1	TIGHTENER	R.H.
9	AW24774	2	PULLEY	-
10	12H301	4	Lock Washer	1/2"
11	14H1040	4	Nut	1/2"
12	C17222	2	IDLER	-
13	24H1368	2	Washer	21/32" X 1-5/16" X 0.090"
14	03H1731	2	Bolt	1/2" X 1-1/2"
15	W36147	2	BRACKET	(1 USED ON 36' (10.9M), R.H.)
16	03H1492	2	Bolt	1/2" X 2"
17	W36115	2	BELT	77.9" (1979MM) (WIDE WINDROW OPENING) 21' (6.4M), 25' (7.6M), 30' (9.1M) AND R.H. 36' (10.9M)
17	W36143	1	BELT	92.9" (2360MM) (NARROW WINDROW OPENING) 21' (6.4M), 25' (7.6M), 30' (9.1M) (2 USED WITH NARROW OPENING OPTION)
17	W36465	1	BELT	L.H. 36' (10.9M)
18	W36113	1	HUB	-
19	34H331	1	Spring Pin	5/16" X 1-1/2"
20	W30386	2	FLANGE	-
21	W30390	12	SHIM	(SUB FOR W36146)
22	12H303	3	Lock Washer	5/16"
23	19H1905	3	Cap Screw	5/16" X 1"
24	W39830	1	TIGHTENER	L.H. 36' (10.9M) ONLY
25	W39829	1	SWIVEL	L.H. 36' (10.9M) ONLY
26	W36148	1	TORSION SPRING	L.H.
27	AW24775	1	TIGHTENER	L.H. 21' (6.4M), 25' (7.6M), 30' (9.1M)
27	AW26538	1	TIGHTENER	L.H. 36' (10.9M)
28	W36235	1	EXTENSION	L.H. (USED IN NARROW OPENING OPTION)
29	W39828	1	SUPPORT	L.H. 36' (10.9M) ONLY
30	03H1500	1	Bolt	3/8" X 1"
31	24M7028	1	Washer	10.500 X 20 X 2 MM
32	K40003	1	Lock Nut	3/8"
33	N10213	3	Lock Nut	5/16"
34	AN50686	1	Pressed Flanged Housing	(INCLUDES GREASE FITTING)
35	JD8554	1	Eccentric Locking Collar	-
36	JD9273	1	Ball Bearing	-
37	H76654	1	Pressed Flanged Housing	-
38	AW24772	2	SUPPORT	(1 USED ON 36' (10.9M), R.H.)
39	03H1540	3	Bolt	5/16" X 3/4"
40	N10215	6	Lock Nut	3/8"
41	03H1765	6	Bolt	3/8" X 3/4"
42	W36332	1	ANGLE	(2 USED WITH NARROW OPENING OPTION) (NOT USED ON 36' (10.9M)) (SUB FOR W36145)
43	W36144	1	EXTENSION	R.H. (NOT USED ON 36' (10.9M))
