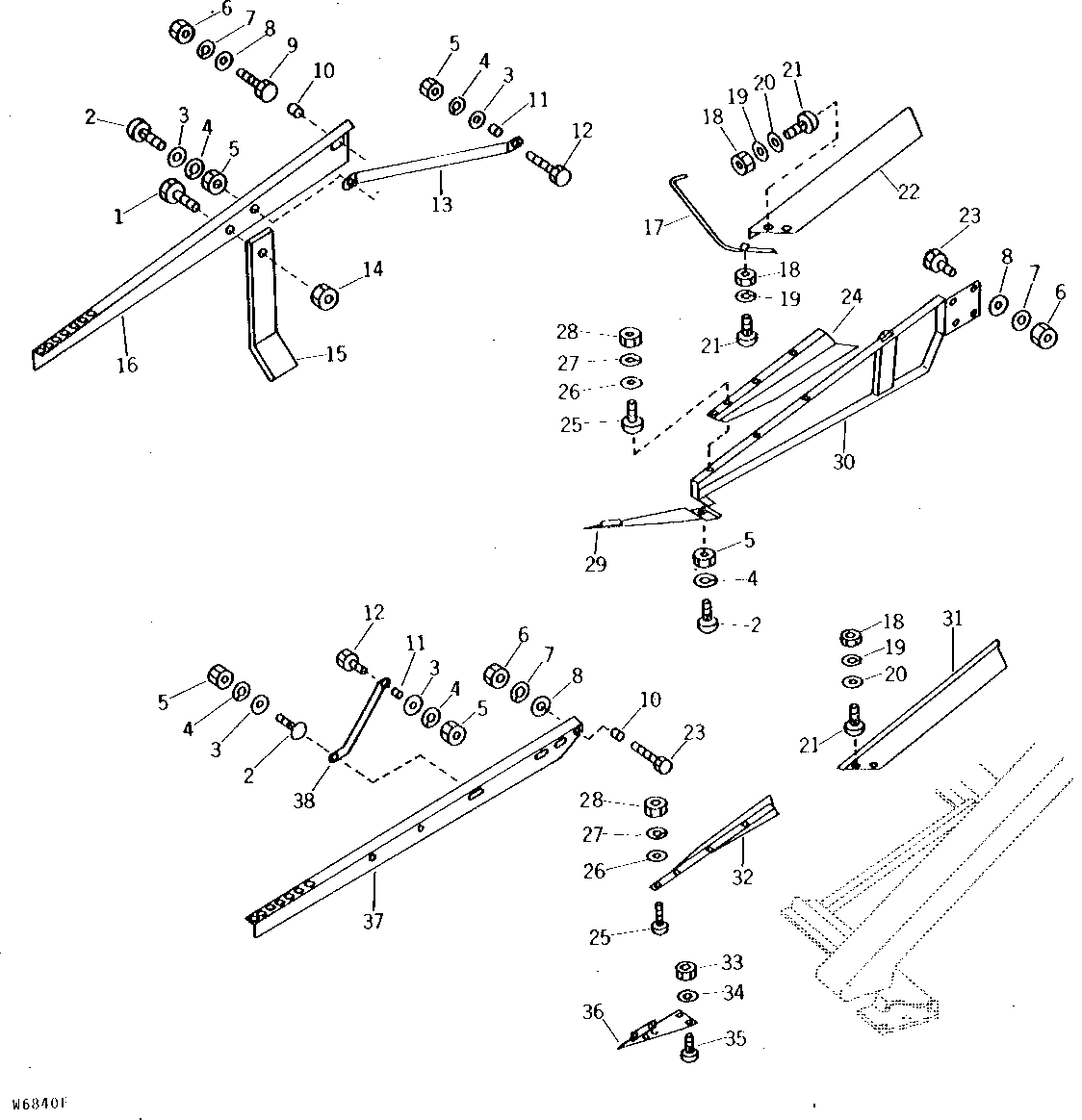

REEL SUPPORT ARMS AND END FRAMES [A24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1815	2	Cap Screw	1/2" X 1-1/4"
2	03H1522	3	Bolt	1/2" X 1-1/4"
3	24H1227	4	Washer	17/32" X 13/16" X 0.060"
4	12H301	5	Lock Washer	1/2"
5	14H1040	5	Nut	1/2"
6	14H1039	6	Nut	5/8"
7	12H294	6	Lock Washer	5/8"
8	24H1658	6	Washer	21/32" X 1" X 0.060"
9	19H2706	1	Cap Screw	5/8" X 2" (HS, SAE 8)
9	19H2233	1	CAP SCREW	5/8" X 3-1/2"
10	B28625	1	BUSHING	(A)
10	N71942	1	BUSHING	(A)
11	W36188	1	SPACER	(A) (SUB FOR W30378)
11	M40509	1	Spacer	(A)
12	19H1721	2	CAP SCREW	1/2" X 1-1/2"
13	W30375	1	BRACE	R.H. (18 FT. (5.5M))
13	W30377	1	BRACE	R.H. (21 FT. (6.4M), 25 FT. (7.6M))
14	K40014	2	Lock Nut	1/2"
15	W30388	2	GUARD	-
16	AW20662	1	ARM	R.H. (18 FT. (5.5M)) (SUB AW20743, AW21089, W30513 AND 19H1863)
16	AW20663	1	ARM	R.H. (21 FT. (6.4M), 25 FT. (7.6M))
16	AW21089	1	ARM	R.H. (18 FT. (5.5M))
17	AW20664	1	PARTITION	-
18	14H785	6	Nut	5/16"
19	12H303	6	Lock Washer	5/16"
20	24H1243	4	WASHER	11/32" X 5/8" X 1/16"
21	03H1524	6	Bolt	5/16" X 1"
22	W30380	1	PARTITION	-
23	19H1708	5	CAP SCREW	5/8" X 1-3/4"
24	W30372	1	DEFLECTOR	-
25	03H1701	12	Bolt	1/4" X 3/4"
26	24H1286	12	Washer	9/32" X 1/2" X 1/16"
27	12H302	12	Lock Washer	1/4"
28	14H786	12	Nut	1/4"
29	AW20661	1	SHOE	R.H.
30	AW20660	1	FRAME	-
31	W30382	1	PARTITION	L.H.
32	W30387	1	DEFLECTOR	L.H.
33	14H1076	2	Nut	3/8"
34	12H304	2	Lock Washer	3/8"
35	03H1519	2	Bolt	3/8" X 1"
36	AW20666	1	SHOE	L.H.
37	AW20665	1	ARM	L.H. (SUB AW20743, AW21090, W30513, 19H1863)
37	AW21090	1	ARM	L.H.
38	W30381	1	BRACE	L.H.
