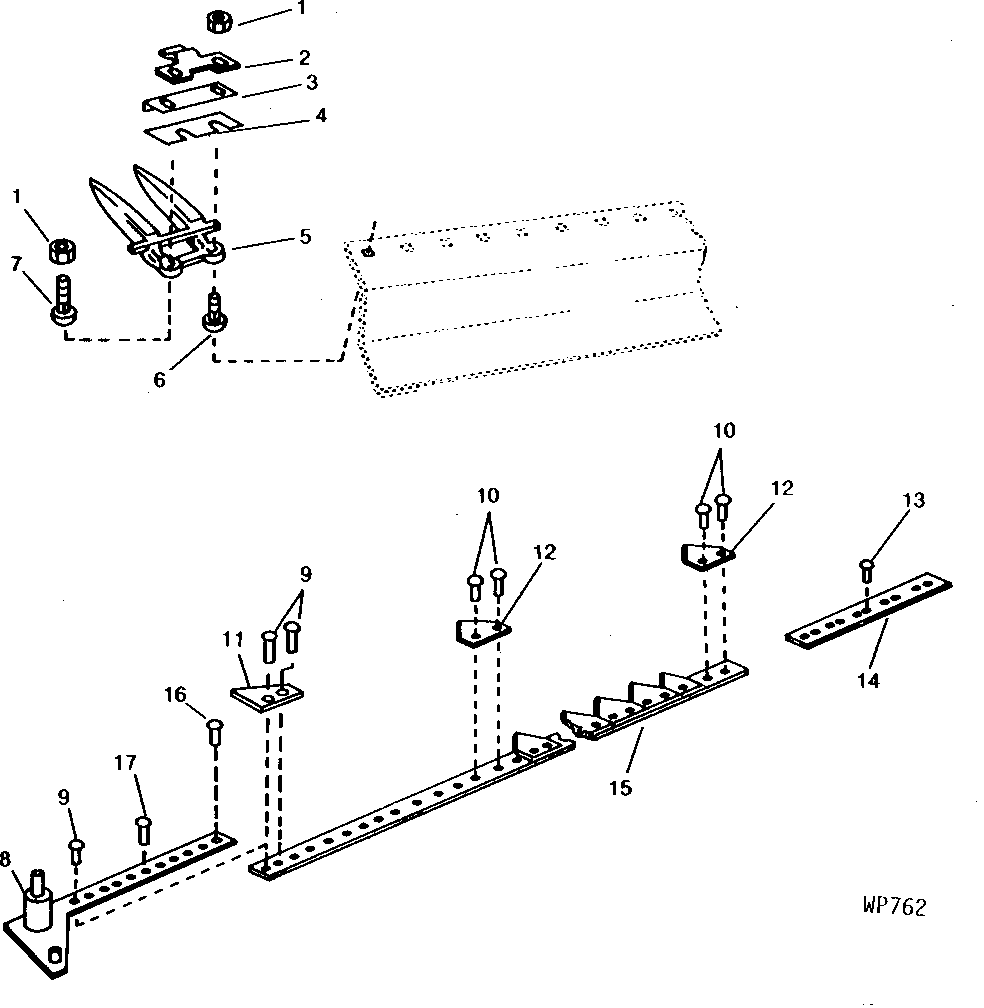

KNIFE, SECTIONS, GUARDS AND HOLD DOWN CLIPS [A20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H1047	1	Nut	(C) 7/16"
2	W30343	1	CLIP	(B)
3	E47954	1	Cutterbar Wear Plate	(B) (SUB FOR W30368)
4	W30342	1	SHIM	(B)
5	W30341	1	GUARD	(D)
6	03H1574	1	BOLT	(E) 7/16" X 1-1/2"
7	03H1686	1	Bolt	(F) 7/16" X 1-1/4"
8	AW20655	1	KNIFEHEAD	(A) 18 FT. (5.5M) (SUB AW22618, W33751 AND 16H1905)
8	AW22618	1	KNIFEHEAD	18 FT. (5.5M)
8	AW20655	1	KNIFEHEAD	(A) 21 FT. (6.4M) (SUB AW22618, W33751, 16H1905)
8	AW22618	1	KNIFEHEAD	21 FT. (6.4M)
8	AW20655	1	KNIFEHEAD	(A) 25 FT. (7.6M) (SUB AW22618, W33751 AND 16H1905)
8	AW22618	1	KNIFEHEAD	25 FT. (7.6M)
9	16H1905	5	RIVET	13/64" X 7/8", (USE WITH AW22618) (SUB FOR 16H719)
10	16H1742	1	RIVET	(G) 13/64" X 5/8"
11	W30367	1	KNIFE	-
12	W36402	1	SECTION	(H) (0.22"(5.59 MM) DIA. HOLES) (SUB FOR W30344)
12	W30365	3	KNIFE	(0.26"(6.60 MM) DIA. HOLES)
12	W30366	1	KNIFE	(0.22" AND 0.26"(5.59 MM AND 6.60 MM) DIA. HOLES)
13	16H1905	1	RIVET	13/64" X 7/8", (25 FT. (7.6M))
14	W30345	1	PLATE	SPLICE (25 FT. (7.6M))
15	AW20651	1	KNIFE	KNIFE ASSEMBLY LESS HEAD (18 FT. (5.5M))
15	AW20652	1	KNIFE	KNIFE ASSEMBLY LESS HEAD (21 FT. (6.4M))
15	AW20653	1	KNIFE	L.H. KNIFE ASSEMBLY LESS HEAD (25 FT. (7.6M))
15	AW20654	1	KNIFE	R.H. KNIFE ASSEMBLY AND SPLICE (25 FT. (7.6M)
16	16H1905	2	RIVET	13/64" X 7/8", (SUB FOR W33802) (USED WITH AW22618)
17	16H697	1	Rivet	1/4" X 1", (9 USED WITH AW20655, 4 USED WITH AW22618)

KNIFE, SECTIONS, GUARDS AND HOLD DOWN CLIPS [A20]
