TRANSMISSION OIL FILTER AND OIL PUMP INTAKE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2676	2	Cap Screw	3/8" X 1"
2	12H304	2	Lock Washer	3/8"
3	14H812	2	NUT	3/8"
4	AR58904	1	OIL TUBE	-
5	R33363	1	GASKET	-
6	R33364	1	CLAMP	-
7	R54750	1	SCREW	-
7	R65894	1	Screw	-
8	R394R	2	O-Ring	-
9	R39794	1	COVER	TRANSMISSION OIL COOLER
9	R58652	1	Cover	-
10	R34733	2	WASHER	-
11	R66064	2	SPRING	-
12	24H1227	2	Washer	17/32" X 13/16" X 0.060"
13	F2741R	2	Packing	-
14	R65892	2	RETAINER	-
15	R32507	2	Snap Ring	-
16	AR75603	2	FILTER ELEMENT	-
16	AR98098	2	Filter Element	-
17	R41041	2	CAP SCREW	SPECIAL
18	R54962	1	Housing	HYDRAULIC OIL FILTER VALVE
19	R57559	1	VALVE	FILTER RELIEF
20	R33259	1	O-Ring	-
21	R26686	1	SPRING	FILTER RELIEF VALVE
22	R48013	1	Washer	-
23	R33282	1	Snap Ring	-
24	U13457	1	Back-Up Ring	ALSO ORDER U12198
24	U12198	1	O-Ring	-
25	A3606R	1	O-RING	-
26	R84270	1	ADAPTER FITTING	-
27	19H2732	2	Cap Screw	3/8" X 2-3/4"
28	12H304	2	Lock Washer	3/8"
29	R28110	1	GASKET	-
30	AR26375	1	SCREEN	TRANSMISSION OIL PUMP INTAKE
31	A4808R	1	WASHER	-
32	R40147	1	FITTING	-
33	R39796	1	COVER	HYDRAULIC OIL FILTER
33	R63093	1	COVER	-
34	R54751	1	SCREW	-
34	R54750	1	SCREW	-

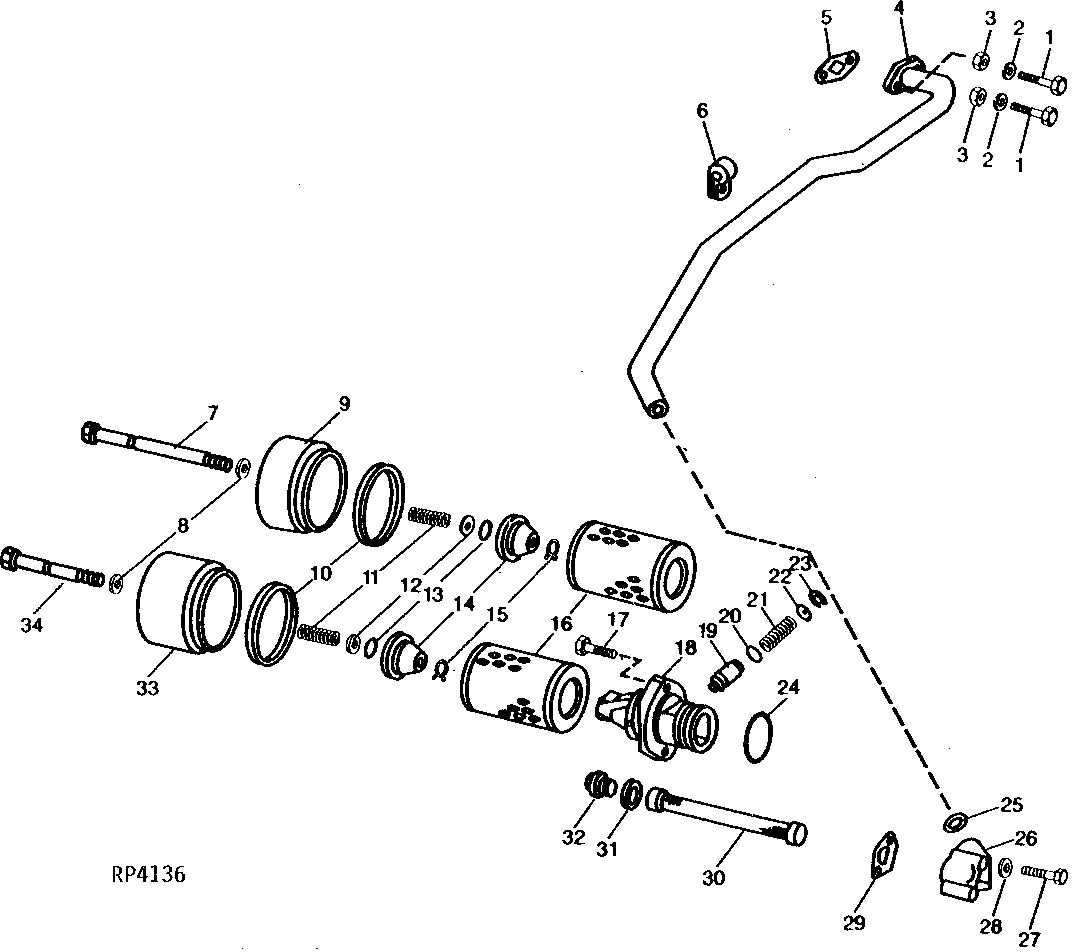

TRANSMISSION OIL FILTER AND OIL PUMP INTAKE
