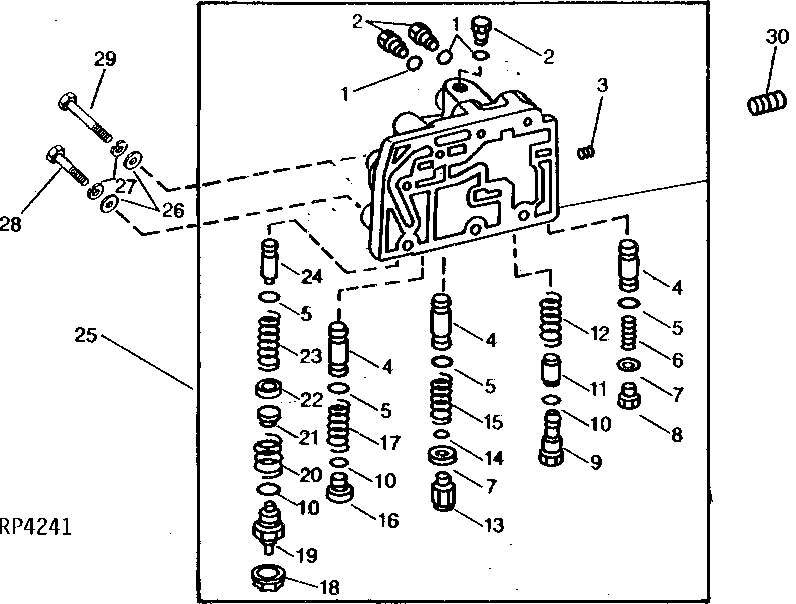

TRANSMISSION CLUTCH REGULATING VALVE

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R26286	3	O-Ring	-
2	R27094	3	Drain Plug	-
3	15H571	1	PIPE PLUG	3/8"
4	R63980	3	Valve	(R, P, AND L-BORE)
5	R28776	4	O-Ring	-
6	R56782	1	Compression Spring	(R-BORE)
7	R1742R	2	WASHER	-
8	R52589	1	FITTING PLUG	(R-BORE)
9	R60396	1	FITTING	(C-BORE)
10	R26375	3	O-Ring	-
11	R60092	1	CHECK VALVE	(C-BORE)
12	F3322R	1	SPRING	(C-BORE)
13	R51577	1	FITTING PLUG	(P-BORE)
14	R56351	1	SOLID SHIM	0.76 MM (.030") (P-BORE)
15	T60314	1	Compression Spring	(P-BORE)
16	R33138	1	Fitting	(L-BORE)
17	R39133	1	SPRING	(L-BORE)
18	14H631	1	Nut	0.190"
19	AR40795	1	TOUCH SWITCH	(F-BORE) (BYPASS VALVE, OIL FILTER)
20	R65651	1	Spring	(F-BORE)
21	R65652	1	GUIDE	(F-BORE)
22	24H1283	1	Washer	7/32" X 1/2" X 0.049"
23	R70693	1	Spring	(F-BORE)
24	R61371	1	VALVE	(F-BORE)
25	RE66057	1	Bearing Kit	(SUB FOR RE66057)
26	24H1325	7	Washer	15/32" X 59/64" X 0.065"
27	12H293	7	Lock Washer	7/16"
28	19H2055	4	CAP SCREW	7/16" X 2-1/4"
28	19H1978	1	Cap Screw	7/16" X 1-1/2"
29	19H3197	1	CAP SCREW	7/16" X 4"
29	19H2347	1	Cap Screw	7/16" X 3"
30	RE57836	1	Pipe Plug	12.700 mm (1/2"), (SUB FOR 15H624)TRANSMISSION OIL TEMPERATURE SENDER

TRANSMISSION CLUTCH REGULATING VALVE
