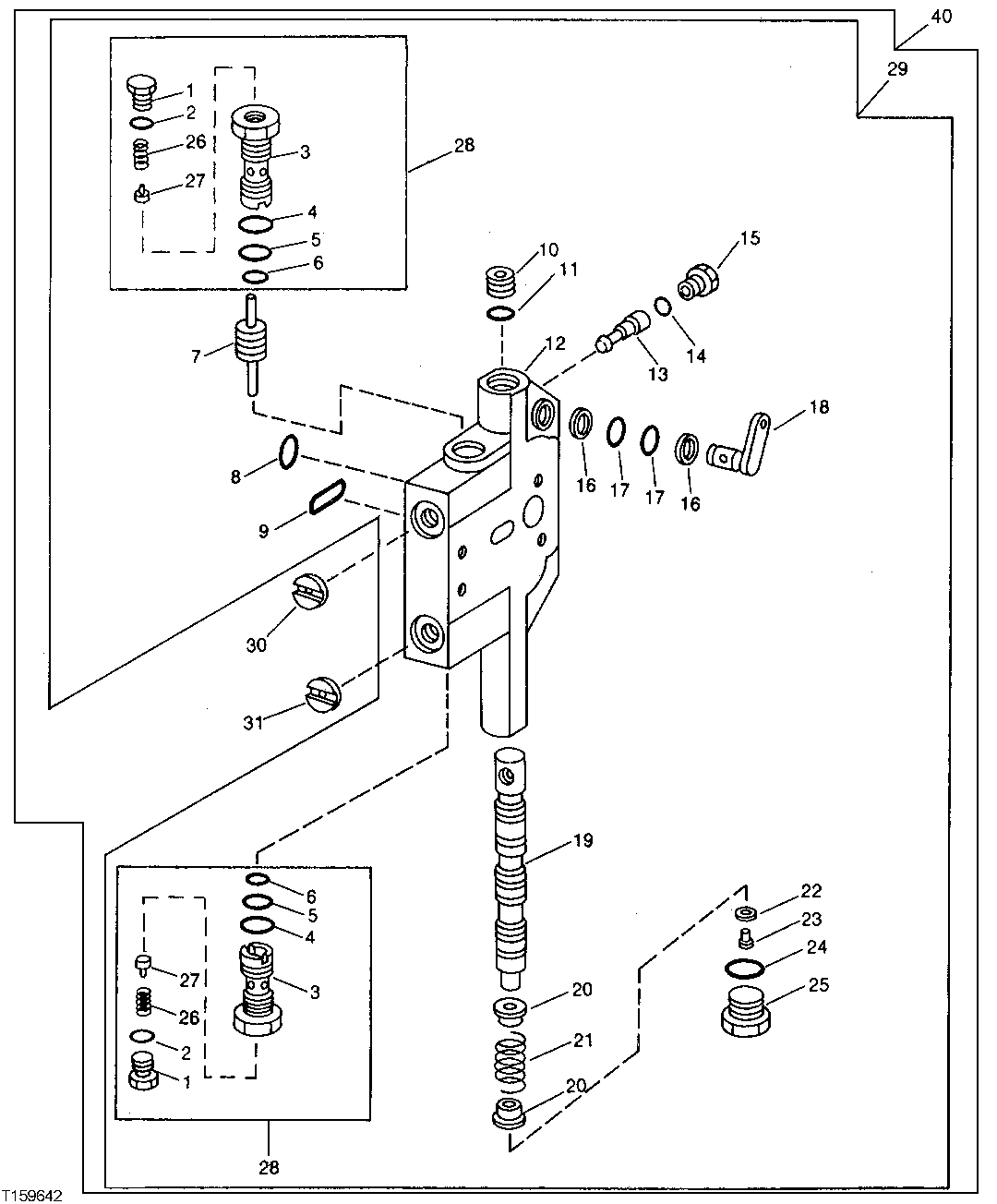

Replacement Hydraulic Control Valve Section (Wheel Lean, Circle Side-Shift, Blade Pitch, Blade Side-Shift)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT125691)
2	R26286	1	O-Ring	-
3	-	1	Part 3	(SUB AT125691)
4	R26906	1	O-Ring	-
5	32246	1	O-Ring	-
6	T107034	1	Back-Up Ring	-
7	T103775	1	Pin	-
8	T107035	1	O-Ring	-
9	T77928	1	O-Ring	-
10	E62096	1	Fitting	-
11	R26375	1	O-Ring	-
12	-	1	Part 12	(SUB AT166472)
13	T103931	1	Lever	-
14	R26448	1	O-Ring	-
15	R27218	1	Fitting Plug	-
16	T57374	2	Back-Up Ring	-
17	T77857	2	O-Ring	(SUB FOR T107036)
18	AT106151	1	Pin	-
19	-	1	Part 19	(SUB AT166472)
20	T185445	2	Guide	-
21	T107260	1	Spring	(RED)
22	24H1286	1	Washer	9/32" X 1/2" X 1/16"
23	T107262	1	Cap Screw	-
24	U17409	1	O-Ring	-
25	T107263	1	Fitting Plug	-
26	-	1	Part 26	(SUB AT125691)
27	-	1	Part 27	(SUB AT125691)
28	AT125691	2	Check Valve	-
29	AT166472	4	Hyd Actuated Control Valve	-
30	U41378	1	Orifice	WHEEL LEAN (NO. 361)
30	W14404	1	Orifice	CIRCLE SIDE-SHIFT (NO. 356)
30	W20862	1	Orifice	BLADE PITCH (NO. 367)
31	W14404	1	Orifice	WHEEL LEAN (NO. 356)
31	W20862	1	Orifice	CIRCLE SIDE-SHIFT (NO. 367)
31	W14404	1	Orifice	BLADE PITCH (NO. 356)
40	-	1	Part 36	(SUB AT300781)(AT166467 NO LONGER AVAILABLE) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)
40	AT300781	1	Valve Stack	(SUB FOR AT166467)(CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)

Replacement Hydraulic Control Valve Section (Wheel Lean, Circle Side-Shift, Blade Pitch, Blade Side-Shift)
