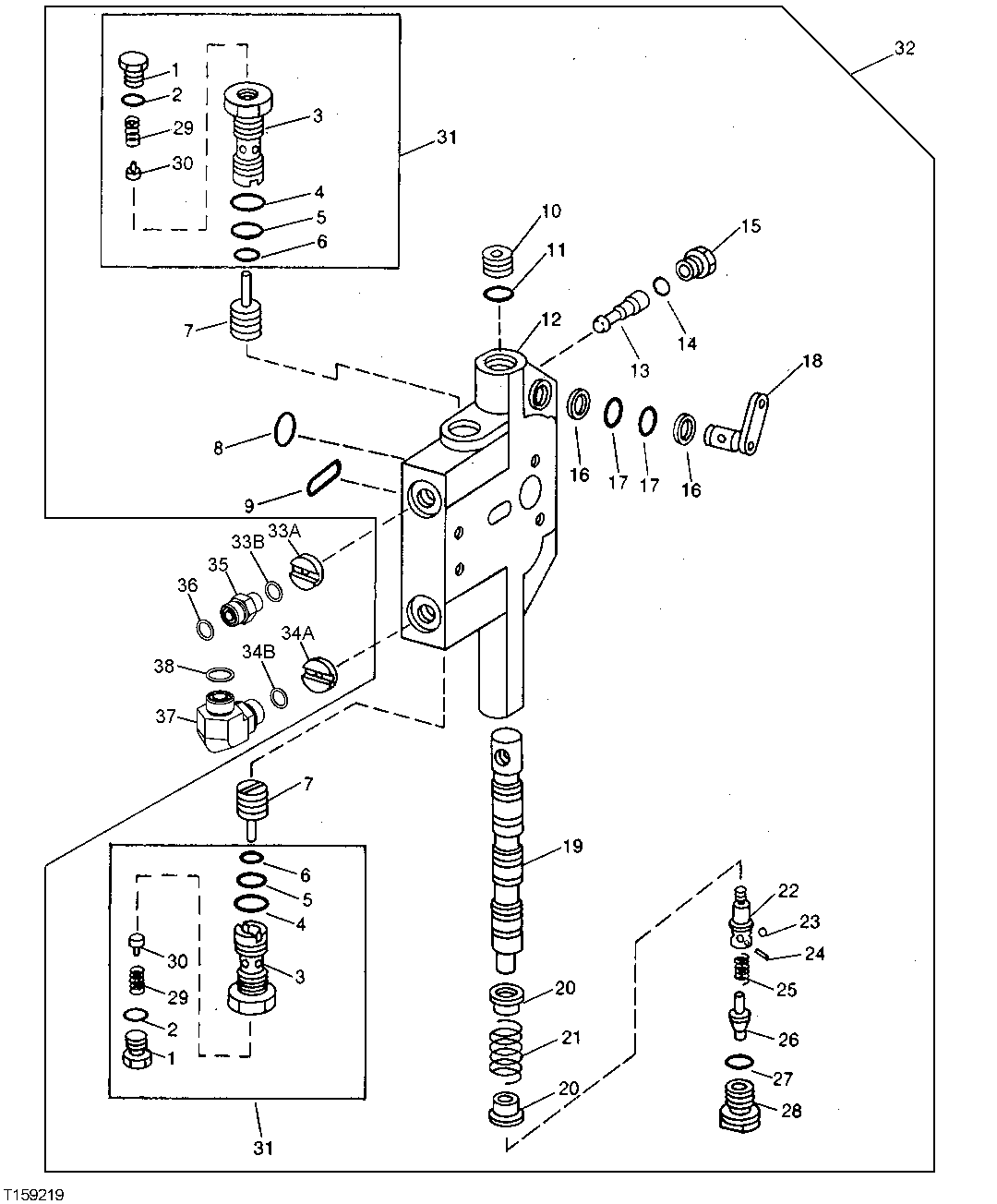

Replacement Hydraulic Control Valve Section (Left Blade Lift, Right Blade Lift, Scarifier)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(SUB AT125691)
2	R26286	1	O-Ring	10.516 X 1.829 mm (0.414" X 0.072")
3	-	1	Part 3	(SUB AT125691)
4	R26906	1	O-Ring	19.177 X 2.464 mm (0.755" X 0.097")
5	32246	1	O-Ring	13.945 X 2.616 mm (0.549" X 0.103")
6	T107034	1	Back-Up Ring	-
7	T103774	2	Pin	-
8	T107035	1	O-Ring	-
9	T77928	1	O-Ring	-
10	E62096	1	Fitting	-
11	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087")
12	-	1	Part 12	(SUB AT125693)
13	T103931	1	Lever	-
14	R26448	1	O-Ring	-
15	R27218	1	Fitting Plug	-
16	T57374	2	Back-Up Ring	-
17	T77857	2	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (SUB FOR T107036)
18	AT106151	1	Pin	-
19	-	1	Part 19	(SUB AT114795)
20	T185445	2	Guide	-
21	T107258	1	Spring	(YELLOW)
22	T103932	1	Retainer	-
23	R63075	4	Ball	-
24	T152175	1	Pin	-
25	T107259	1	Spring	-
26	T103933	1	Poppet	-
27	U17409	1	O-Ring	-
28	T150474	1	Plug	-
29	-	1	Part 29	(SUB AT125691)
30	-	1	Part 30	(SUB AT125691)
31	AT125691	2	Check Valve	-
32	AT166470	3	Hyd Actuated Control Valve	-
35	38H1161	1	Adapter Fitting	(FOR USE WITH SCARIFIER)
36	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (FOR USE WITH SCARIFIER)
37	38H1005	1	Elbow Fitting	(FOR USE WITH SCARIFIER)
38	T77857	1	O-Ring	12.421 X 1.778 mm (0.489" X 0.070"), (FOR USE WITH SCARIFIER)
40	AT300781	1	Valve Stack	(SUB FOR AT166467)(NOT ILLUSTRATED) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)
40	-	1	Part 41	(SUB AT300781)(AT166467 NO LONGER AVAILABLE) (CONTAINS ALL ITEMS ON THIS PAGE - ADDITIONAL COMPONENTS LISTED ON SEPARATE PAGES)
33A	-	1	Part 33	(NOT REQUIRED)
33B	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087"), (FOR USE WITH SCARIFIER)
34A	W14403	1	Orifice	(LEFT OR RIGHT BLADE LIFT) (NO. 347)
34B	R26375	1	O-Ring	16.358 X 2.210 mm (0.644" X 0.087"), (FOR USE WITH SCARIFIER)
