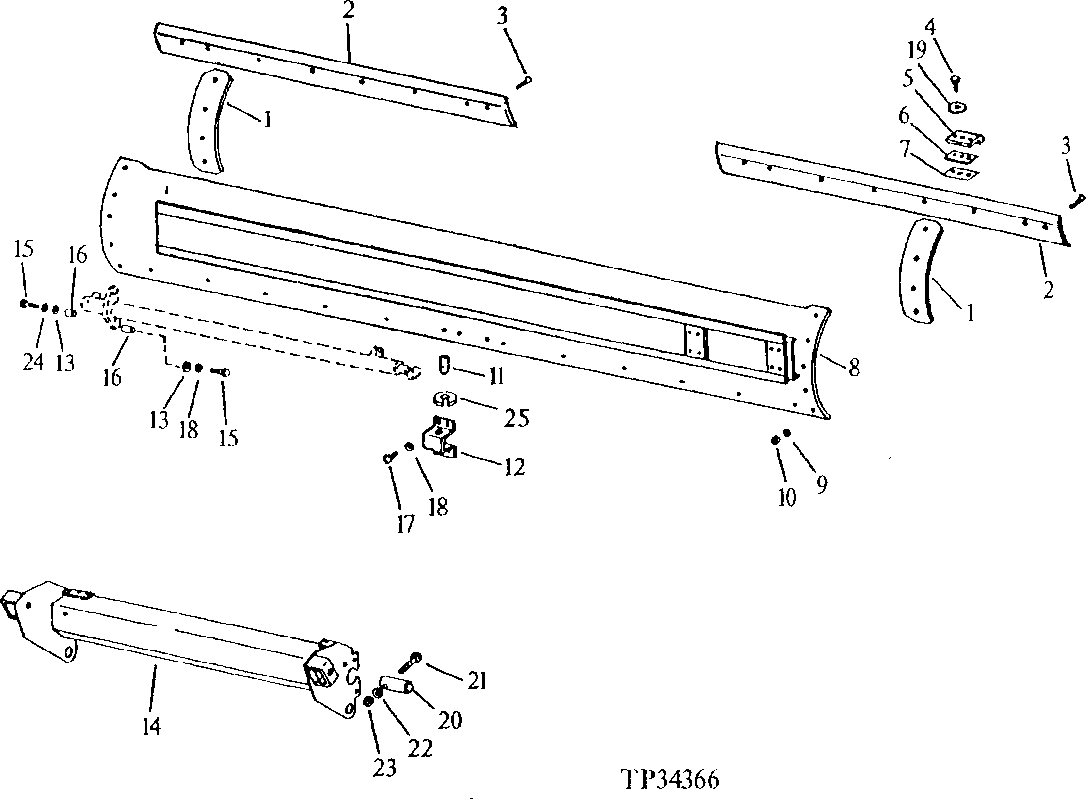

MOLDBOARDS AND CUTTINGS EDGES ( - 551920)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42495	2	Dura-Max Cutting Edge	-
2	T66702	2	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL CURVED EDGE, 5/8" X 6" X 1 829 MM (6') LONG
2	T71978	2	Dura-Max Cutting Edge	DURA-MAX THROUGH HARDENED DOUBLE BEVEL CURVED EDGE, 5/8" X 8" X 1 829 MM (6') LONG
2	T48840	2	Cutting Edge	SELECTIVE HARDENED SINGLE BEVEL CURVED EDGE, 3/4" X 6" X 1 829 MM (6') LONG
3	09H1759	1	Bolt	5/8" X 2-1/4"
4	19H1768	12	Cap Screw	3/4" X 2"
5	T43503	4	Retainer	-
6	U42490	1	SHIM	.25 MM (.010")
7	U42491	1	STRAP	1.27 MM (.050")
8	-	1	Part 10	15.9 MM (5/8") THICK 3 658 MM (12') LONG SUB AT40492 WITH 17 INCH CURVATURE)
8	-	1	Part 11	19 MM (3/4") THICK 3 658 MM (12') LONG (SUB AT40492 WITH 17 INCH CURVATURE)
9	-	1	Part 12	( 12H294 NO LONGER REQUIRED), (USE WITH 14H1039)
10	14H800	1	Nut	5/8", (SUB FOR 14H1039 ) (USE WITH 12H294)
11	-	1	Part 14	( U42493 NO LONGER AVAILABLE), (SUB T149334 AND 40M7109)
11	T149334	1	DOWEL PIN	-
12	U42492	1	BRACKET	-
13	24H1401	2	WASHER	25/32" X 1-3/4" X 0.194"
14	AT35427	1	PIVOT	-
15	19H1768	2	Cap Screw	3/4" X 2"
16	U42501	2	SPACER	-
17	19H2716	4	Cap Screw	3/4" X 1-1/2", 3/4" X 1-1/2"
18	12H236	6	Lock Washer	3/4", 3/4"
19	N231749	12	Washer	(SUB FOR T33089)
20	U42502	1	PIN FASTENER	-
21	19H1904	1	Cap Screw	5/16" X 3"
22	12H303	1	Lock Washer	5/16"
23	14H785	1	Nut	5/16"
24	12H236	4	Lock Washer	3/4"
25	40M7109	2	Snap Ring	(USE WITH T149334)
26	24H1540	1	Washer	1-17/32" X 2-1/2" X 1/4"

MOLDBOARDS AND CUTTINGS EDGES ( - 551920)
