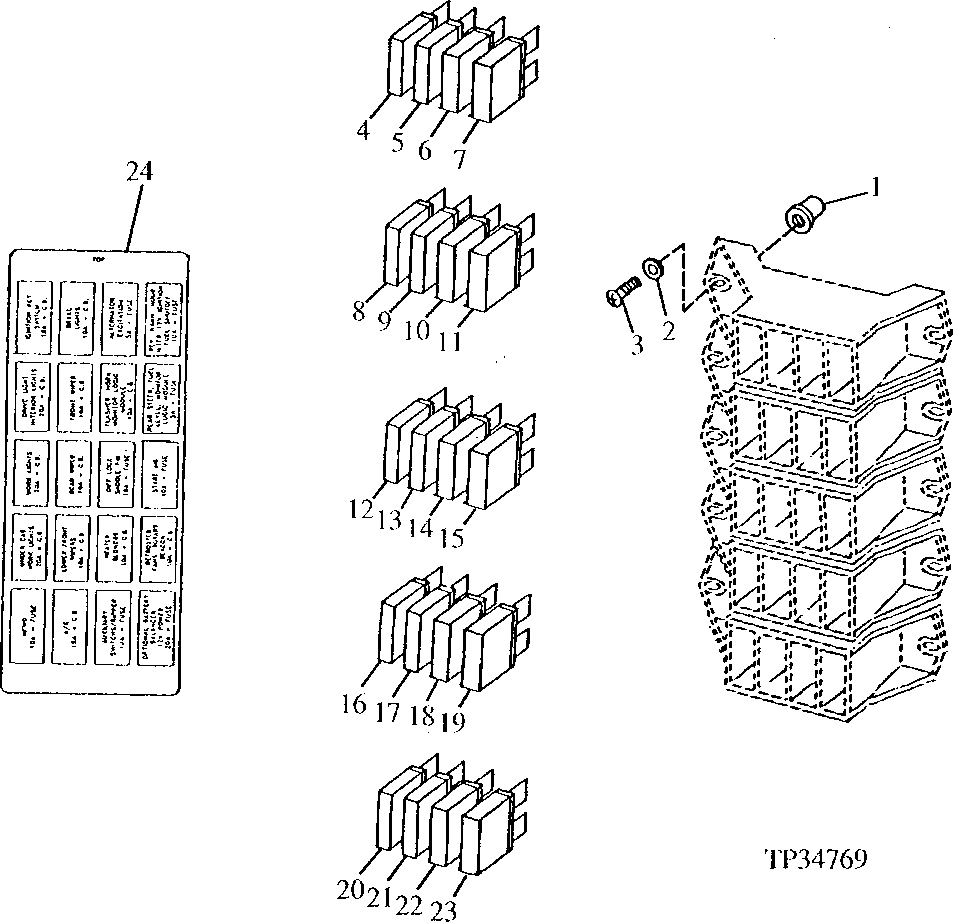

MAIN FUSE BOX WITH FUSES AND LABEL (543490 - )

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T82780	5	Nut	-
2	24H1283	5	Washer	7/32" X 1/2" X 0.049"
3	21H1419	5	Screw	0.190" X 1"
4	T103463	1	Circuit Breaker	10 en_USAMP, IGNITION KEY SWITCH
5	T103463	1	Circuit Breaker	10 en_USAMP, BRAKE LIGHTS
6	57M7125	1	Fuse	ALTERNATOR EXCITATION
7	57M7121	1	Fuse	REV. WARNING HORN, HOUR METER, 12V IGNITION RELAY, FUEL SHUTOFF
8	T103834	1	Circuit Breaker	20 en_USAMP, DRIVE/INTERIOR LIGHTS
9	T103463	1	Circuit Breaker	10 en_USAMP, FRONT WIPER
10	T103463	1	Circuit Breaker	10 en_USAMP, HORN FLASHER, MONITOR LOGIC MODULE
11	57M7125	1	Fuse	REAR STEER, FUEL LEVEL, MONITOR LOGIC MODULE
12	T103834	1	Circuit Breaker	20 en_USAMP, WORK LIGHTS
13	T103463	1	Circuit Breaker	10 en_USAMP, REAR WIPER
14	57M7121	1	Fuse	DIFF LOCK SADDLE PIN
15	57M7121	1	Fuse	START AID
16	T103834	1	Circuit Breaker	20 en_USAMP, UNDER CAB WORK LIGHTS
17	T103463	1	Circuit Breaker	10 en_USAMP, LOWER FRONT WIPERS
18	T103463	1	Circuit Breaker	10 en_USAMP, HEATER BLOWERS
19	T103463	1	Circuit Breaker	10 en_USAMP, DEFROSTER FANS, ROTARY BEACON
20	57M7121	1	Fuse	HYDRAULIC FRONT WHEEL DRIVE
21	T108357	1	Circuit Breaker	15 en_USAMP, AIR CONDITIONER
22	57M7121	1	Fuse	AUXILIARY SWITCHES, RIPPER
23	57M7120	1	Fuse	OPTIONAL BATTERY BALANCER, 12V POWER
24	T150742	1	Label	INSIDE OF FUSE BOX COVER, NLA

MAIN FUSE BOX WITH FUSES AND LABEL (543490 - )

Нет текстового описания
