Hydraulic Control Valve Section (Left Blade Lift, Right Blade Lift, Scarifier)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	2	Part 1	(SUB AT125691)
2	R26286	2	O-Ring	-
3	-	2	Part 3	(SUB AT125691)
4	R26906	2	O-Ring	-
5	32246	2	O-Ring	(SUB FOR T107037)
6	T107034	2	Back-Up Ring	-
7	T103774	2	Pin	-
8	T107035	1	O-Ring	-
9	T77928	1	O-Ring	-
10	E62096	1	Fitting	-
11	R26375	1	O-Ring	-
12	-	1	Part 12	(SUB AT125693)
13	T103931	1	Lever	-
14	R26448	1	O-Ring	-
15	R27218	1	Fitting Plug	-
16	T57374	2	Back-Up Ring	-
17	T77857	2	O-Ring	(SUB FOR T107036)
18	AT106151	1	Pin	-
19	-	1	Part 19	(SUB AT125693)
20	T185445	2	Guide	(SUB FOR T103935)
21	T107258	1	Spring	(YELLOW)
22	T103932	1	Retainer	-
23	R63075	4	Ball	(SUB FOR H22694, THIS APPLICATION)
24	T152175	1	Pin	(SUB FOR T107261)
25	T107259	1	Spring	-
26	T103933	1	Poppet	-
27	U17409	1	O-Ring	-
28	T150474	1	Plug	(SUB FOR T103934, THIS APPLICATION)
29	-	1	Part 29	(SUB AT125691)
30	-	1	Part 30	(SUB AT125691)
31	AT125691	2	Check Valve	(SUB FOR AT105581)
32	AT166470	3	Hyd Actuated Control Valve	(SUB FOR AT114795 AND AT125693)
33	N124440	1	Orifice	LEFT BLADE LIFT (NO. 364)
33	N124440	1	Orifice	RIGHT BLADE LIFT (NO. 364)
34	H30826	1	Orifice	LEFT BLADE LIFT (NO. 346)
34	H30826	1	Orifice	RIGHT BLADE LIFT (NO. 346)

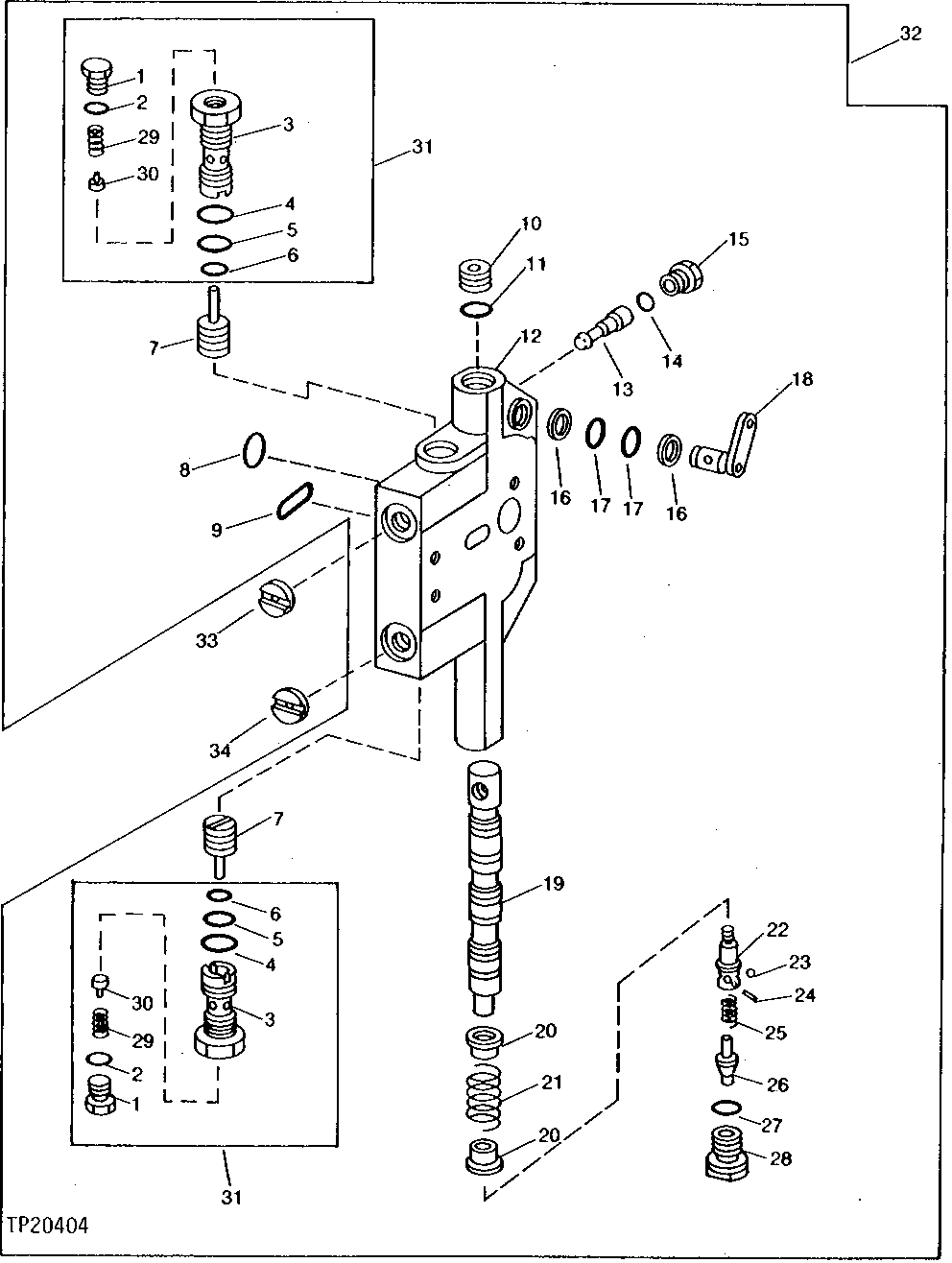

Hydraulic Control Valve Section (Left Blade Lift, Right Blade Lift, Scarifier)
