Engine Side Shields (With Sound Reduction Package) (543264 - 548664)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H1833	1	Cap Screw	5/8" X 1-1/4"
2	24M7338	1	Washer	17 X 30 X 3 mm
3	T126107	1	Angle	STRIKER
4	14H1039	1	Nut	5/8"
5	AT165245	1	Guard	RIGHT
5	AT165244	1	Guard	LEFT
6	T35635	4	Hinge	-
7	T35636	2	Pin Fastener	-
8	34H284	2	Spring Pin	3/16" X 1-1/4"
9	28H3394	4	Bushing	0.493" X 0.675" X 1/2", 3/8" X 1/2"
10	12H304	8	Lock Washer	3/8"
11	19H2481	4	Cap Screw	-
12	24H1305	6	Washer	13/32" X 13/16" X 0.065"
13	19H2021	4	Cap Screw	3/8" X 5/8"
14	03H1505	2	Bolt	5/16" X 1-3/4"
15	T35637	2	Angle	-
16	12H304	2	Lock Washer	3/8"
17	14H812	2	NUT	3/8"
18	AT211118	1	Lock	-
18	AT195302	1	Key	-
19	AT186172	1	Latch	(SUB FOR AT160080)RD. HD., 3/8" X 1-1/2"
20	H85233	4	Rivet	4.750 mm (3/16")
21	21H1135	4	Screw	0.164" X 1-1/2", (SOUND REDUCTION)
22	T35633	2	Retainer	-
23	11M7015	2	Cotter Pin	3.200 X 25 mm
24	T35632	1	Rod	-
25	24H1136	2	Washer	11/32" X 11/16" X 0.065"
26	AT34637	1	Bracket	LEFT
26	AT34638	1	Bracket	RIGHT
27	03H1540	2	Bolt	5/16" X 3/4"
28	12M7065	2	Lock Washer	8 mm
29	14H785	2	Nut	5/16"
30	28H3420	2	Bushing	0.622" X 0.840" X 1-1/4", (USE WITH SOUND REDUCTION PANELS)
31	T41341	2	Isolator	(SOUND REDUCTION)
32	T41342	1	Isolator	(SOUND REDUCTION)
33	T149211	1	Panel	RIGHT (SOUND REDUCTION)
33	T149210	1	Panel	LEFT (SOUND REDUCTION)

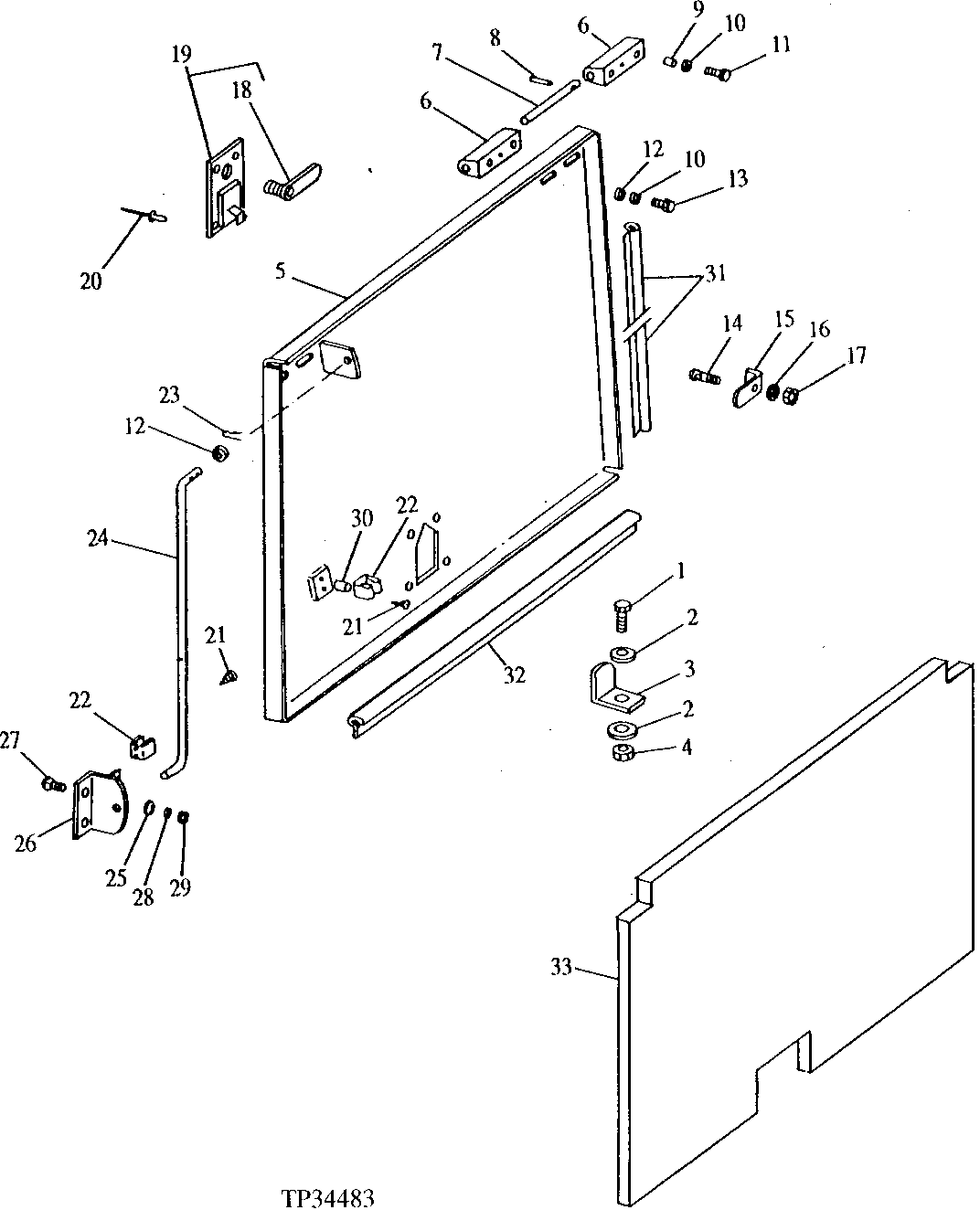

Engine Side Shields (With Sound Reduction Package) (543264 - 548664)
