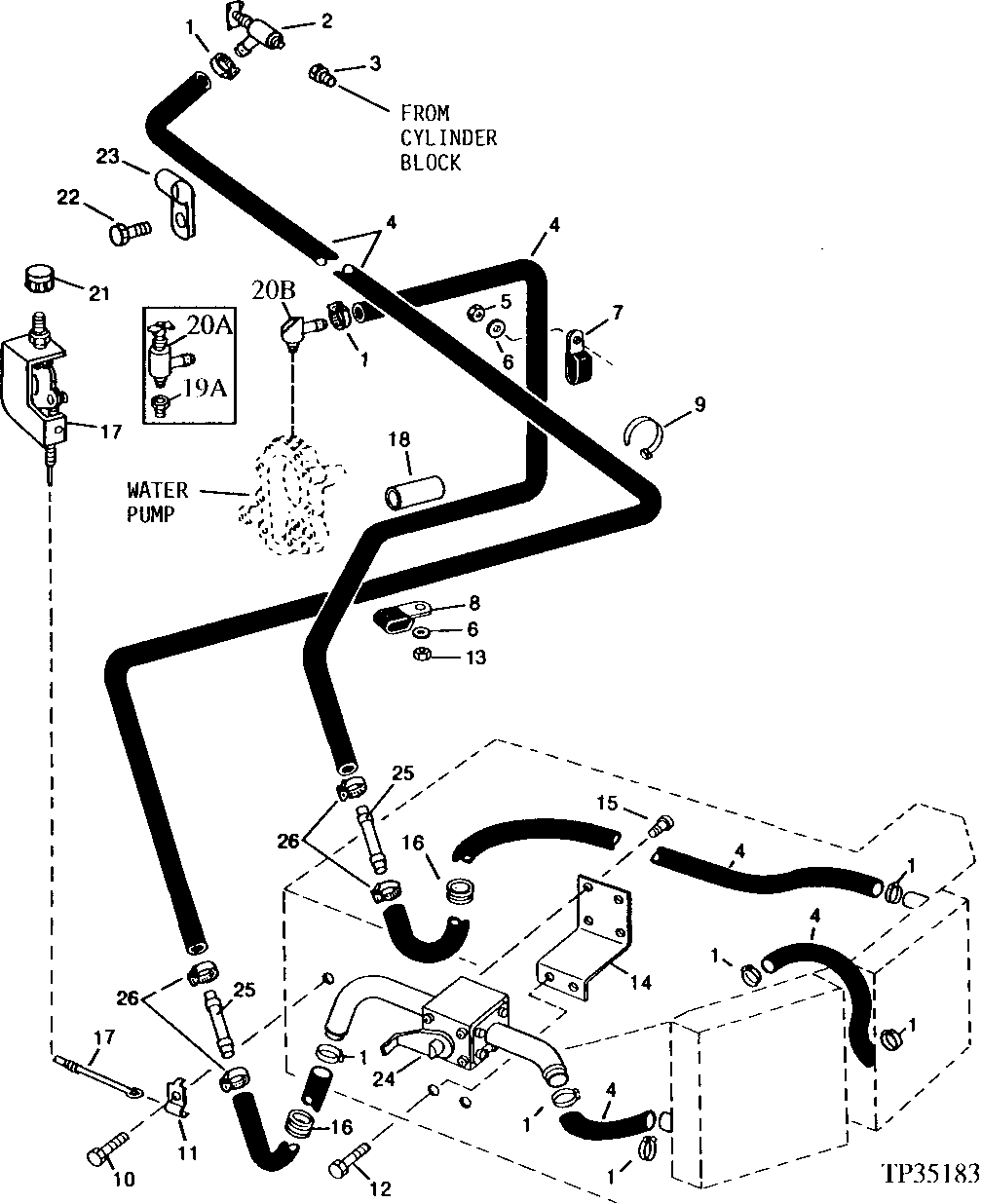

CAB HEATER HOSES AND CONTROLS (520352 - 548823)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	AR21837	8	Clamp	(SUB FOR RE65978, THIS APPLICATION)
2	AT35831	1	Drain Valve	(SUB FOR AT169553, THIS APPLICATION)
3	15H576	1	Pipe Bushing	3/8"
4	-	2	Part 4	(MAKE FROM T60811 BULK MATERIAL, CUT TO LENGTH)
5	T11234	1	Lock Nut	-
6	24H1305	2	Washer	13/32" X 13/16" X 0.065"
7	AH90990	2	Clip	-
8	M85483	3	Clip	-
9	R44302	1	Tie Band	-
10	T124407	1	Screw	(SUB FOR R67654, THIS APPLICATION)
11	T121734	1	Clip	-
12	19H1948	2	Cap Screw	1/4" X 3/4"
13	14H812	1	NUT	3/8"
14	AT125673	1	Bracket	-
15	37M7181	4	Screw	-
16	T121691	2	Grommet	-
17	AT130139	1	Control	(SUB FOR AT56096, THIS APPLICATION)
18	T103907	1	Cover	-
21	AL58295	1	Knob	(SUB FOR AR69370)
22	-	1	Part 23	( 19H1895 NO LONGER AVAILABLE)
23	R72659	1	Clamp	(SUB FOR T24432, THIS APPLICATION)
24	AT132776	1	Thermostatic Control Valve	(SUB FOR AT125653)
25	T76200	2	Tube	-
26	AR21837	4	Clamp	(SUB FOR RE65978, THIS APPLICATION)
19A	15H586	1	Adapter Fitting	3/8"
20A	-	1	Part 20	( AT169553 NO LONGER AVAILABLE)
20B	T27077	1	Hose Fitting	(SUB FOR AT169553, THIS APPLICATION)

CAB HEATER HOSES AND CONTROLS (520352 - 548823)
