Открытый узел

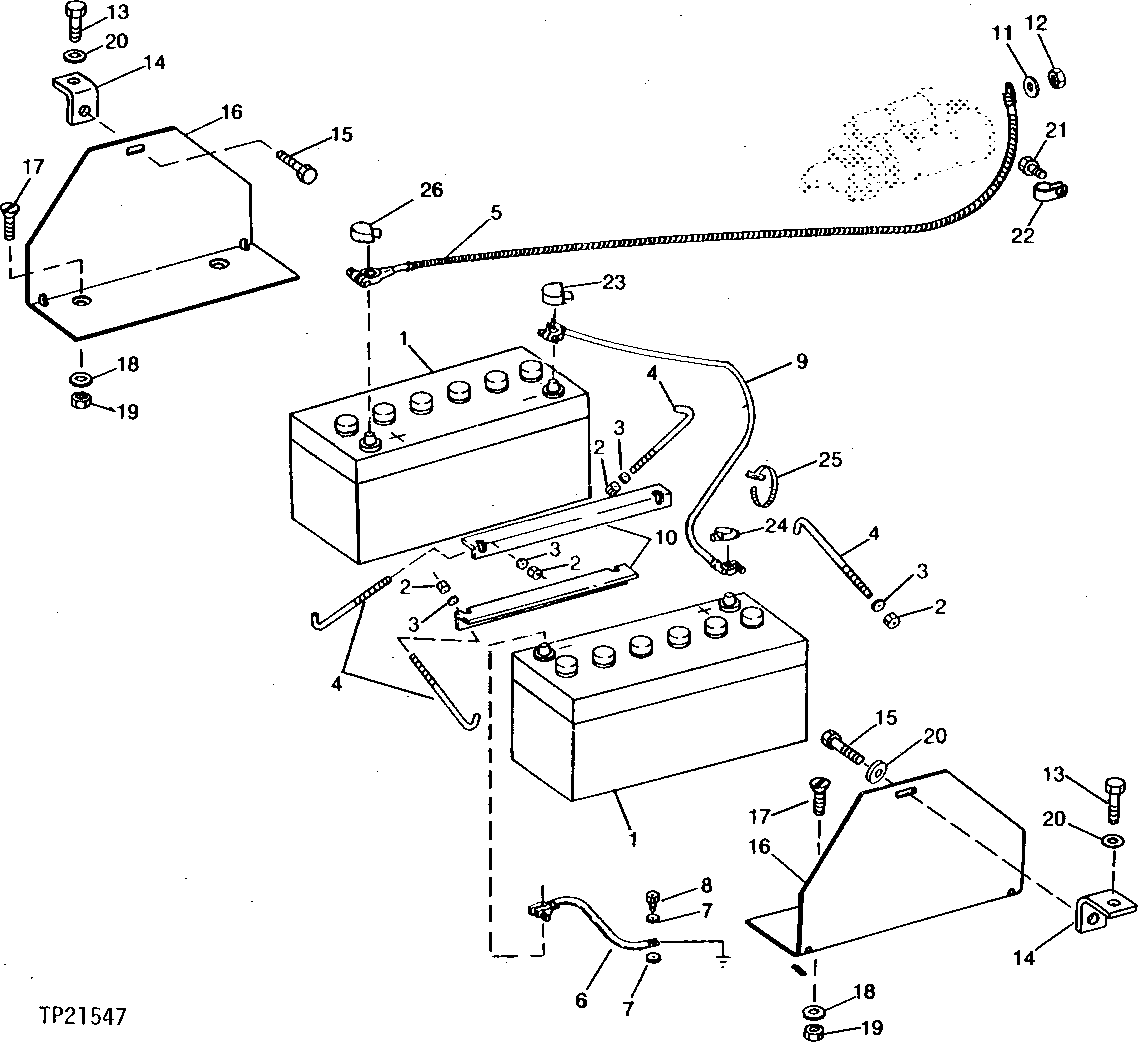

BATTERIES, CABLES AND CLAMPS ( - 543489)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	TY25803B	2	Wet Charged Battery	(SUB FOR TY6127, THIS APPLICATION ) (SUB FOR TY21766), SUB FOR TY25803
2	M40333	4	Lock Nut	6.350 mm (1/4")
2	14M7166	4	Lock Nut	M8
3	24H1305	4	Washer	13/32" X 13/16" X 0.065"
4	T22571	4	Bolt	BATTERY CLAMP
4	T145818	4	Bolt	(SUB FOR T138510, THIS APPLICATION)
5	AT42044	1	Battery Cable	BATTERY TO STARTER
6	AT39643	1	GROUND CABLE	-
7	12H331	2	LOCK WASHER	3/8"
8	T34037	1	Screw	(SUB FOR T22728, THIS APPLICATION)
9	AT158463	1	Battery Cable	BATTERY TO STARTER, (SUB FOR AT42045)
10	T64105	2	Angle	-
10	T121288	2	Angle	-
11	12H301	1	Lock Washer	1/2"
12	14H1040	1	Nut	1/2", (SUB FOR 14H809)
13	19H1648	2	Cap Screw	3/8" X 3/4"
14	T107485	1	Angle	-
15	19H1936	2	Cap Screw	3/8" X 3/4"
16	T107484	2	Base	-
17	21H1253	4	SCREW	1/2" X 1-1/4"
18	12H301	4	Lock Washer	1/2"
19	14H1040	4	Nut	1/2", (SUB FOR 14H809)
20	24H1305	4	Washer	13/32" X 13/16" X 0.065"
21	19H1781	1	CAP SCREW	1/2" X 3-1/2"
22	R72659	1	Clamp	(SUB FOR R73384, THIS APPLICATION)
23	T107115	1	Cover	(USE WITH RIGHT-HAND BATTERY CABLE END)
24	T107114	1	Cover	(USE WITH LEFT-HAND BATTERY CABLE END)
25	R44302	2	Tie Band	-
26	T107117	1	Cover	STRAIGHT

BATTERIES, CABLES AND CLAMPS ( - 543489)

Нет текстового описания
