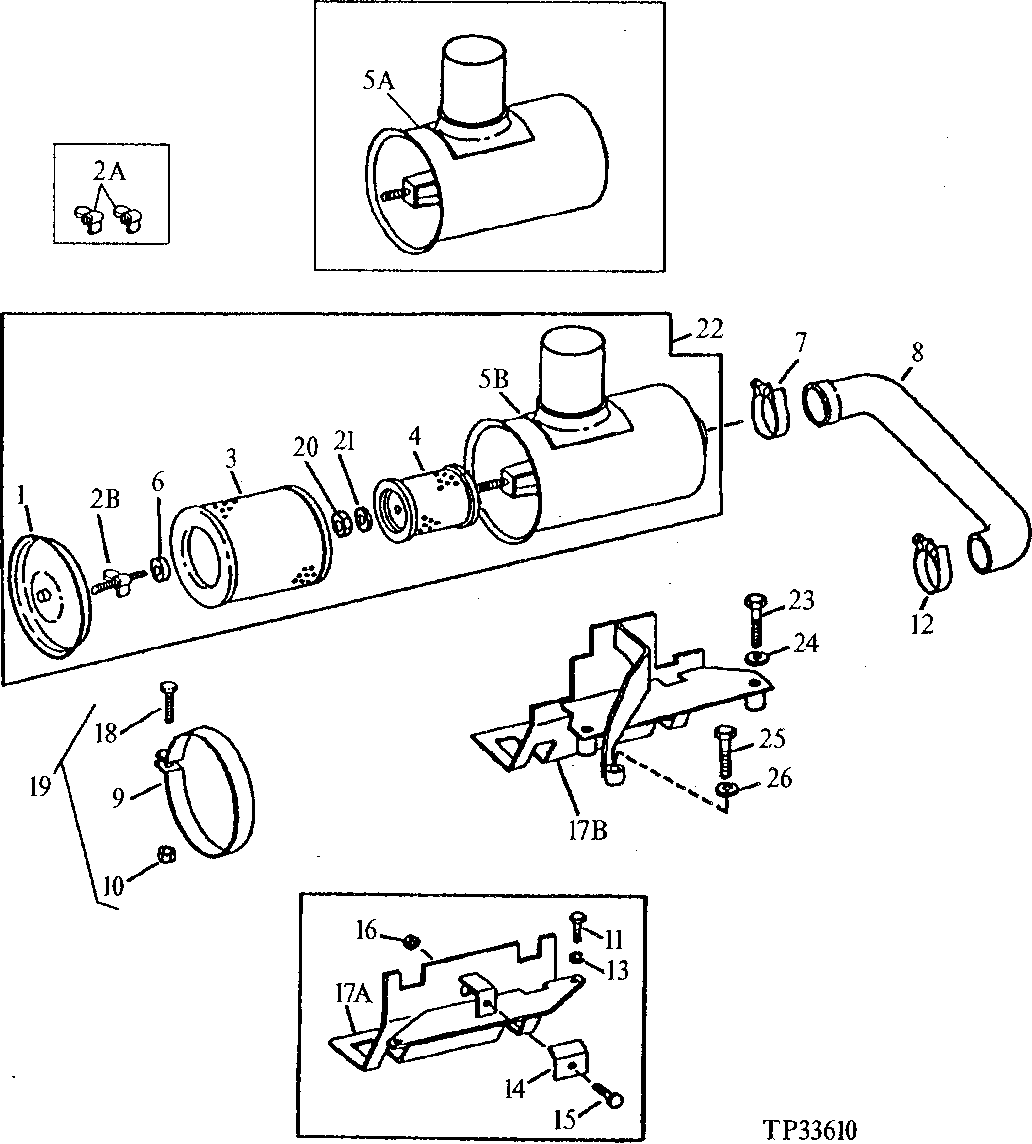

Air Cleaner And Bracket (Wth Turbocharger)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	(SUB AT135946)(USE WITH FRAM) ( AT71476 NO LONGER AVAILABLE)
1	AT71475	1	COVER	(USE WITH DONALDSON)
3	AT39124	1	FILTER ELEMENT	PRIMARY
4	AT31227	1	FILTER ELEMENT	SECONDARY
6	AR52065	1	Sealing Washer	-
7	AT50924	1	Hose Clamp	-
8	T107554	1	Suction Hose	-
9	T38019	2	CLAMP	-
10	14H785	2	Nut	5/16"
11	19H3239	2	Cap Screw	3/8" X 1-1/4"
12	AT50923	1	Hose Clamp	(SUB FOR AT56659, THIS APPLICATION)
13	12H304	2	Lock Washer	3/8"
14	T38029	1	Angle	-
15	19H2676	1	Cap Screw	3/8" X 1"
16	T11234	1	Lock Nut	-
18	19H2440	2	CAP SCREW	5/16" X 2-1/2"
19	AT159005	2	Clamp	-
20	E17421	1	Lock Nut	-
21	AR52066	1	Sealing Washer	-
22	AT135946	1	Air Cleaner	(SUB FOR AT66045 ) (SUB FOR AT71476, THIS APPLICATION)
23	19H1726	2	Cap Screw	3/8" X 2-1/4"
24	24M7239	2	Washer	10.700 X 21 X 2.500 mm
25	19H1990	1	Cap Screw	1/2" X 2-1/4"
26	24M7240	1	Washer	13 X 25 X 3 mm
2A	AH20849	2	Wing Nut	-
2B	AT159355	1	Wing Screw	-
5A	-	1	Part 7	-
5B	-	1	Part 8	(SUB AT135946)
17A	AT112231	1	BRACKET	-
17B	AT141728	1	Bracket	-

Air Cleaner And Bracket (Wth Turbocharger)

Нет текстового описания
