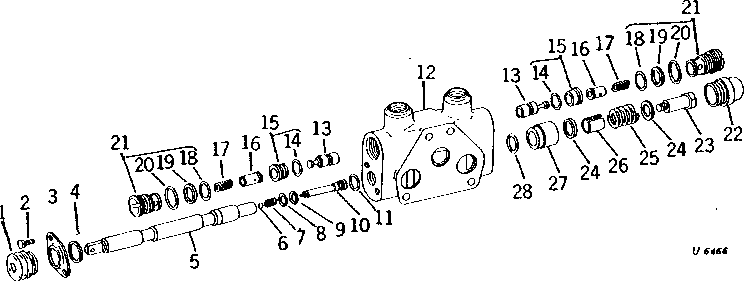

WHEEL LEAN AND FRAME STEER CONTROL VALVE (SERIAL NO. 002227- ) [01J10]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42800	1	BOOT	(A)
2	21H1294	2	Screw	0.190" X 5/16"
3	U42790	1	RETAINER	-
4	U42796	1	WASHER	-
5	-	1	Part 5	(SUB AT38775)
5	-	1	Part 6	-
6	H60816	1	Ball	-
7	U42797	1	SPRING	-
8	U42902	1	O-Ring	(A)
9	A3917R	1	O-Ring	(A)
10	U42901	1	PLUG	-
11	T107142	1	O-RING	(A) (SUB FOR H36256, THIS APPLICATION)
12	-	1	Part 13	(SUB AT38775)
12	-	1	Part 14	-
13	AU41860	2	PLUNGER	(SUB AT74664)
13	AT74664	2	PLUNGER	-
14	32246	2	O-Ring	(A) (SUB FOR R459R, THIS APPLICATION)
15	AU41857	1	SEAT	-
16	U42786	2	POPPET	-
17	N85304	2	SPRING	-
18	P48347	2	O-Ring	(A)
19	H60330	2	BACK-UP RING	(A)
20	N130510	2	O-Ring	(A) (SUB FOR 32240, THIS APPLICATION)
21	AU41855	2	PLUG	-
22	AU42362	1	CAP	-
23	U42794	1	SCREW	-
24	N31767	2	WASHER	-
25	U43629	1	SPRING	-
26	U43626	1	BUSHING	-
27	U43627	1	BUSHING	-
28	T107141	1	O-Ring	(A) (SUB FOR R375R, THIS APPLICATION)
..	AT38775	2	VALVE	(SUB AT74669)
..	AT74669	2	SPOOL VALVE	-
..	AT74666	1	SEAL KIT	(ALL PARTS MARKED(A)) (SUB FOR AU41864) (SUB FOR AT73424)

WHEEL LEAN AND FRAME STEER CONTROL VALVE (SERIAL NO. 002227- ) [01J10]
