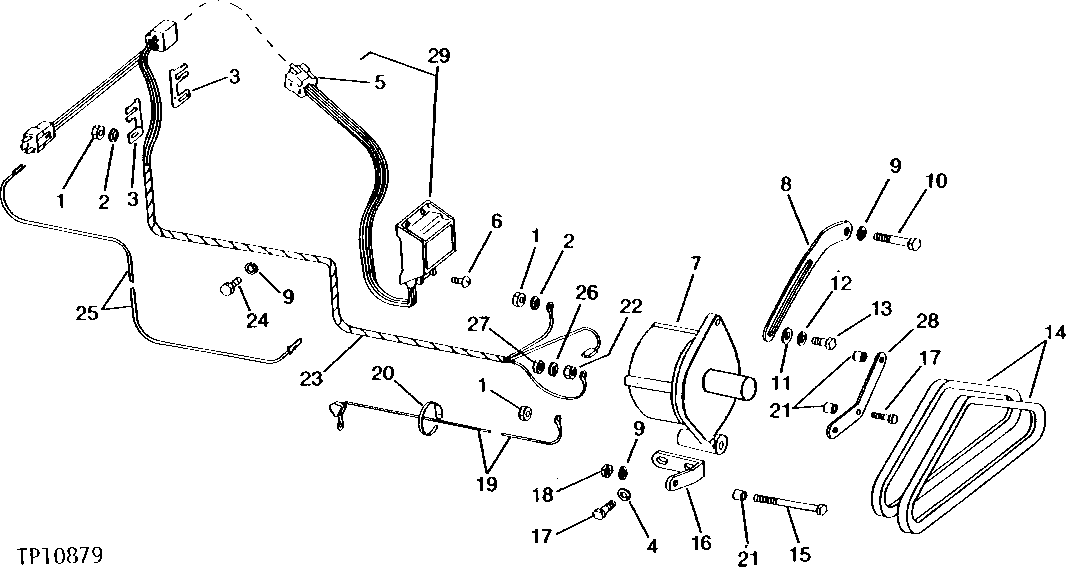

VOLTAGE REGULATOR, ALTERNATOR, AND WIRING HARNESS (ENGINE SERIAL NO. -130705) [02L14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	14H778	7	Nut	0.190"
2	12H246	5	LOCK WASHER	0.190"
3	T25017	2	Clip	-
4	24H1305	2	Washer	13/32" X 13/16" X 0.065"
5	T25316	1	ELECTRICAL CONNECTOR ASSY	-
6	21H1148	3	Screw	0.190" X 3/4"
7	TY1899	1	ALTERNATOR	(MOTOROLA NO. 8MA2X01) (SUB FOR AT31670)
7	TY1899	1	ALTERNATOR	(55 AMPERE) (MOTOROLA) (REMANUFACTURED)
8	R108404	1	Strap	(SUB FOR T20204 AND R107734)
9	12H304	4	Lock Washer	3/8"
10	19H1765	1	Cap Screw	3/8" X 1-3/4"
11	24H1685	1	Washer	11/32" X 47/64" X 0.083"
12	12H303	1	Lock Washer	5/16"
13	19H2705	1	Cap Screw	5/16" X 1"
14	AT27169	1	BELT SET	(SET OF 2 BELTS)
15	19H2855	1	Cap Screw	3/8" X 3-1/4"
16	T20198	1	BRACKET	-
17	19H3483	3	Cap Screw	3/8" X 1-1/8"
18	14H812	1	NUT	3/8"
19	AT22865	1	WIRING LEAD	ALTERNATOR TO STARTING MOTOR
20	R44302	1	Tie Band	(SUB FOR R27457)
21	28H2547	3	Spacer	3/8" X 1"
22	14H860	1	Nut	1/4"
23	AT25404	1	Wiring Harness	-
24	19H2284	1	Cap Screw	3/8" X 7/8"
25	AT23139	1	Wiring Lead	INJECTION PUMP TO HARNESS
26	12H302	1	Lock Washer	1/4"
27	14H786	1	Nut	1/4"
28	T20202	1	Bracket	-
29	AT42450	1	VOLTAGE REGULATOR	(MOTOROLA NO. RS2J1, RS2J1C AND 8RD2017) (SUB FOR AT21816 AND AT29078)

VOLTAGE REGULATOR, ALTERNATOR, AND WIRING HARNESS (ENGINE SERIAL NO. -130705) [02L14]
