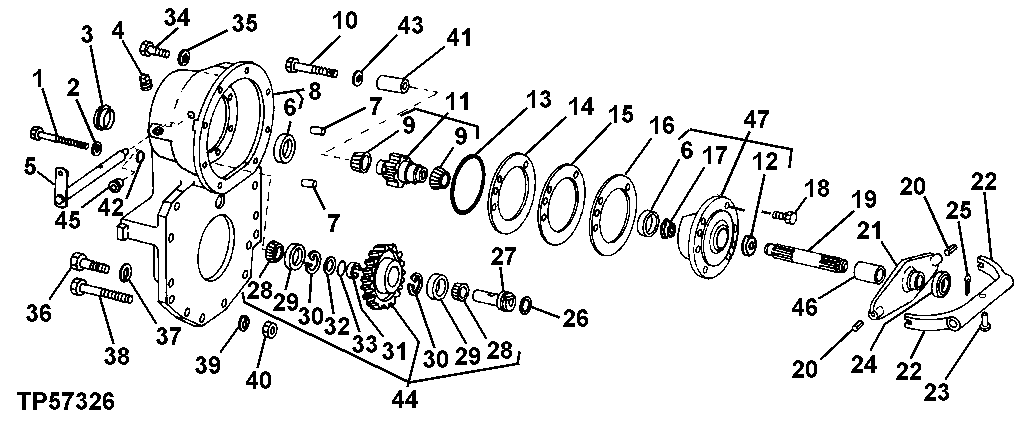

UPPER HALF TRANSFER DRIVE (SERIAL NO. 003134- ) [01I09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3544	1	Cap Screw	1/2" X 4-1/2"
2	T20168	1	Washer	-
3	U42014	1	CAP	-
4	15H585	1	Pipe Plug	3/4" SQ. HD.,
5	AU41311	1	SHAFT	-
6	JD7418	2	Bearing Cup	-
7	U42011	2	Dowel Pin	-
8	AT44089	1	HOUSING	(MARKED T127345) WITH TWO JD7418 BEARING CUPS
9	JD8969	2	BEARING CONE	-
10	19H2553	1	Cap Screw	3/8" X 2-5/8", (SUB FOR T22156, THIS APPLICATION)
11	AT44084	1	GEAR	INPUT, (MARKED T45246)
12	AT58389	1	SEAL	(SUB FOR R35642) (SUB FOR AR70406, THIS APPLICATION)
13	U42016	1	O-Ring	-
14	U42017	1	SHIM	.13 MM (.005")
15	U42621	1	SHIM	.08 MM (.003")
16	U42622	1	SHIM	.25 MM (.010")
17	T130870	1	SPACER	OIL DEFLECTOR
18	19H3483	6	Cap Screw	(SUB FOR R46567 AND R63300, THIS APPLICATION)
19	T148413	1	SHAFT	(SUB FOR T107316)
20	R35075	2	QUICK LOCK PIN	-
21	U41893	1	CRADLE	CLUTCH THROW-OUT BEARING
22	U41839	1	FORK	CLUTCH
23	5218SC	1	PIN FASTENER	-
24	AM3983T	1	THRUST BEARING	-
25	11M7059	1	Cotter Pin	3.200 X 20 MM
26	P50631	1	O-Ring	-
27	U42012	1	SHAFT	-
28	JD8182	2	Bearing Cone	-
29	JD8228	2	Bearing Cup	-
30	U42675	2	Snap Ring	-
31	U42003	1	SPACER	-
32	U42004	1	Shim	.102 MM (.004")
33	T41319	1	Shim	.15 MM (.006")
34	19H2633	10	Cap Screw	3/8" X 1-1/2"
35	12H304	10	Lock Washer	3/8"
36	19H2735	6	Cap Screw	1/2" X 2"
37	12H301	6	Lock Washer	1/2"
38	19H2725	4	Cap Screw	3/4" X 3-3/4"
39	12H236	4	Lock Washer	3/4"
40	14H858	4	NUT	3/4"
41	T45254	1	BUSHING	-
42	R26448	1	O-Ring	-
43	R57696	1	Washer	(SUB FOR 24H1122, THIS APPLICATION)
44	AT44085	1	GEAR	UPPER, (MARKED T45247)
45	M3470T	1	Plug	(WITHOUT CLUTCH DISCONNECT)
46	T45251	1	BUSHING	-
47	AT162246	1	BEARING HOUSING W/O BEARING	UPPER, (SUB FOR AT44088) (INCLUDES T130870)

UPPER HALF TRANSFER DRIVE (SERIAL NO. 003134- ) [01I09]
