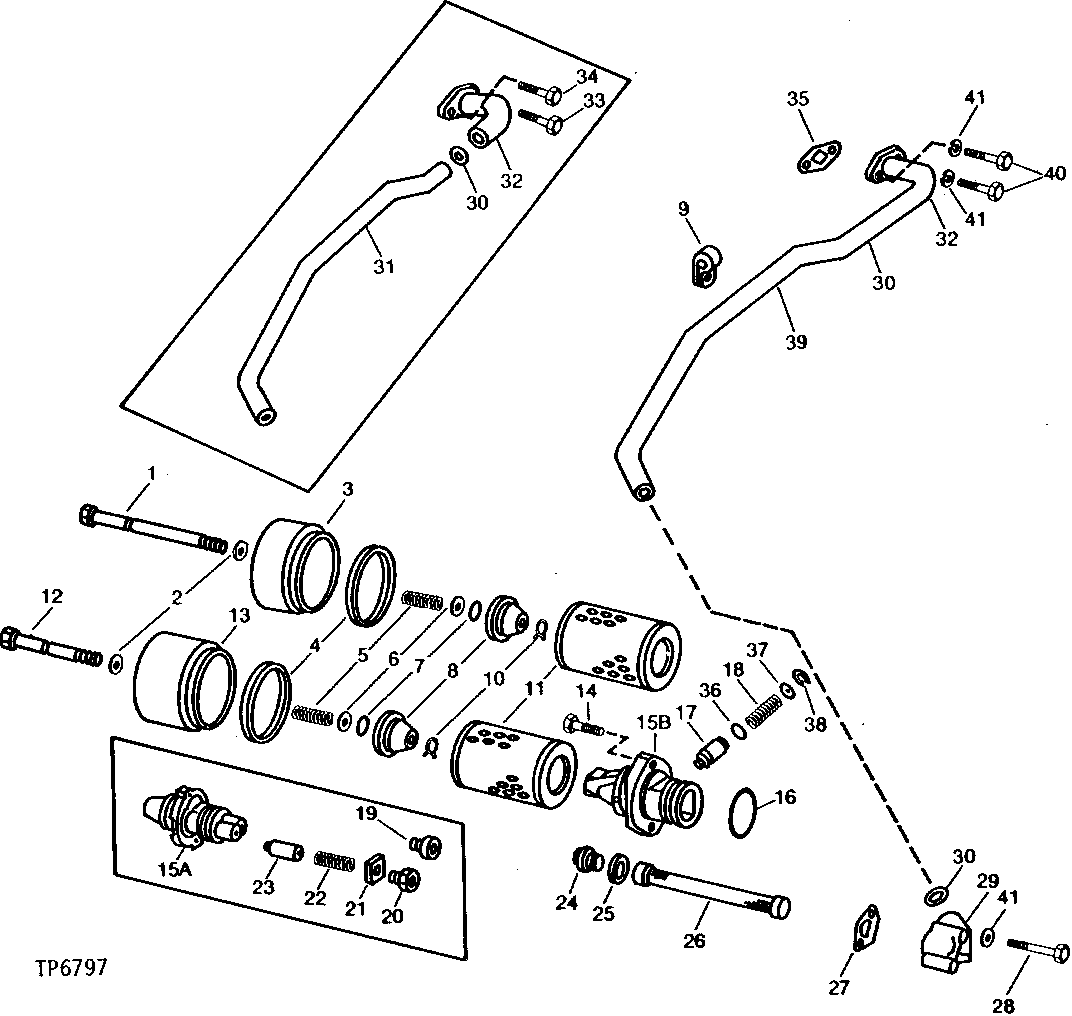

TRANSMISSION OIL FILTER AND OIL PUMP INTAKE [01I11]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R54750	1	SCREW	-
1	R39795	1	CAP SCREW	(SUB R54750)
2	R394R	2	O-Ring	-
3	R39794	1	COVER	TRANSMISSION OIL COOLER
4	R34733	2	WASHER	-
5	R66064	2	SPRING	(SUB FOR H819R, THIS APPLICATION)
6	24H1227	2	Washer	17/32" X 13/16" X 0.060"
7	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
7	F2741R	2	Packing	(USE WITH R65892 RETAINER)
8	R28593	1	RETAINER	(SUB R65892 AND F2741R) (USE WITH R394R ROUND CROSS-SECTION O-RING)
8	R65892	2	RETAINER	(USE WITH F2741R SQUARE CROSS-SECTION O-RING)
9	R33364	1	CLAMP	-
10	R32507	2	Snap Ring	-
11	AR75603	2	FILTER ELEMENT	(SUB FOR AR28271, AT34670 AND AR75601)
12	R39797	1	CAP SCREW	(SUB R54751)
12	R54751	1	SCREW	-
13	R39796	1	COVER	HYDRAULIC OIL FILTER
14	R41041	2	CAP SCREW	SPECIAL
16	U12198	1	O-Ring	-
17	R33162	1	VALVE	(SUB R57559 AND R33259)
17	R57559	1	VALVE	FILTER RELIEF
18	R26686	1	SPRING	FILTER RELIEF VALVE
19	R33138	1	Fitting	FILTER RELIEF
20	T55452	1	FITTING	-
20	R46979	1	PLUG	SURGE RELIEF VALVE, (SUB T55452 AND T55451)
21	R44858	1	LOCK PLATE	(SUB T55451 AND T55452)
21	T55451	1	STRAP	-
22	R39808	1	SPRING	SURGE RELIEF VALVE
23	R39847	1	VALVE	SURGE RELIEF
24	R40147	1	FITTING	(SUB FOR A4806R)
25	A4808R	1	WASHER	-
26	AR26375	1	SCREEN	TRANSMISSION OIL PUMP INTAKE, (SUB FOR R53169, THIS APPLICATION)
27	R28110	1	GASKET	-
28	19H2732	2	Cap Screw	3/8" X 2-3/4"
29	-	1	Part 37	(SUB R28110 AND R84270 FOR R33911)
29	R84270	1	ADAPTER FITTING	-
30	A3606R	2	O-RING	-
30	A3606R	1	O-RING	-
31	R33361	1	OIL LINE	TRANSMISSION OIL PUMP INTAKE
32	AR41885	1	ADAPTER FITTING	WITH PLUG
33	19H1765	1	Cap Screw	3/8" X 1-3/4"
34	19H3239	1	Cap Screw	3/8" X 1-1/4"
35	R33363	1	GASKET	-
36	R33259	1	O-Ring	-
37	R48013	1	Washer	-
38	R33282	1	Snap Ring	-
39	AR58904	1	OIL TUBE	-
40	19H2676	2	Cap Screw	3/8" X 1"
41	12H304	4	Lock Washer	-
15A	R33606	1	HOUSING	HYDRAULIC OIL FILTER VALVE
15B	R54962	1	Housing	HYDRAULIC OIL FILTER VALVE
