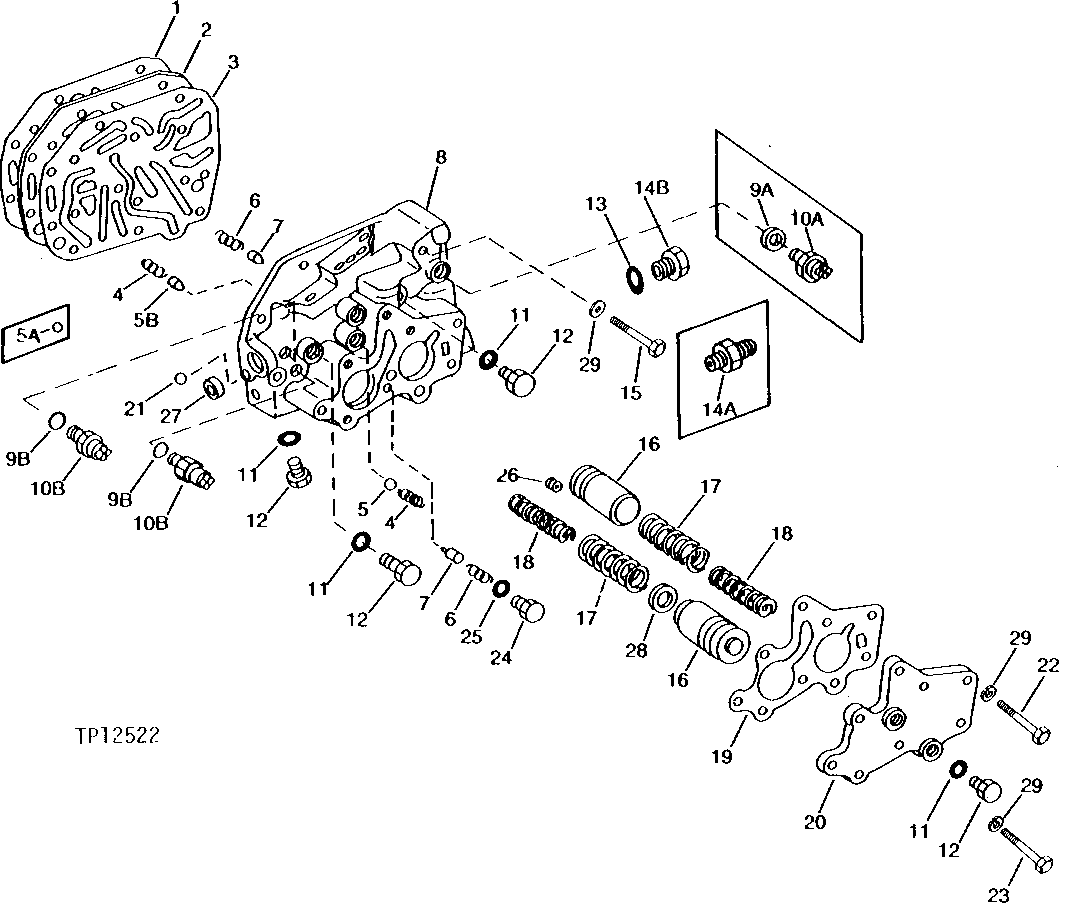

TRANSMISSION CONTROL VALVE (SERIAL NO. 001700- ) [01I02]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R94321	1	GASKET	(SUB FOR R50567 AND R68817)
2	R50566	1	PLATE	(SUB FOR R33304)
3	R100308	1	GASKET	(SUB FOR R50568 AND R68818)
3	R94322	1	GASKET	(SUB FOR R68819)
4	R81631	2	SPRING	(SUB FOR R47816, THIS APPLICATION)
6	R33277	2	SPRING	-
7	R42697	2	DETENT	-
8	AR60519	1	HOUSING	(MARKED R53604 OR R57382) (SUB FOR AR50171) (MARKED R46042) (SUB RE20832, R82024, R82116, RE38390, (2) R26448, D2361R, R47816 AND AT66938)
8	AR87115	1	HOUSING	(MARKED R67037) (SUB RE20832, R82024, R82116, RE38390, (2) R26448, R42697, R81631 AND AT66938)
8	AR95903	1	HOUSING	(A) (MARKED R72409) (SUB RE20832)
8	RE20832	1	HOUSING	(MARKED R82100) (SUB FOR RE13781, MARKED R78742)
11	R26286	9	O-Ring	-
12	R27094	9	Drain Plug	-
13	R26906	1	O-Ring	-
15	19H2458	1	Cap Screw	3/8" X 3"
15	19H3239	2	Cap Screw	3/8" X 1-1/4"
15	19H2855	1	Cap Screw	3/8" X 3-1/4"
16	R47319	2	PISTON	-
17	R47449	2	Compression Spring	OUTER
18	R47450	2	SPRING	INNER
19	R98929	1	GASKET	(SUB FOR R47445, R52971 AND R68820)
20	R47321	1	COVER	(SUB R79852, (4) 19H3330 AND (4) 19H2676)
20	R79852	1	COVER	-
21	R42849	1	Ball	-
22	19H3180	4	CAP SCREW	3/8" X 6-1/4"
22	19H3041	4	Cap Screw	-
23	19H3239	4	Cap Screw	3/8" X 1-1/4"
23	19H2676	4	Cap Screw	-
24	R27218	2	Fitting Plug	-
25	R26448	2	O-Ring	-
26	R47448	2	ORIFICE	-
27	A3910R	1	PLUG	(A)
27	30H13	1	PLUG	(A) 1"
28	24M7101	1	Washer	11 X 34 X 3 MM
29	02H304	12	BOLT	-
30	R26448	1	O-Ring	(USE WITH RE13781 AND RE20832)
31	R27218	1	Fitting Plug	(USE WITH RE13781 AND RE20832)
5A	D2361R	2	Ball	(SUB R42697, THIS APPLICATION)
5B	R42697	2	DETENT	-
9A	T16911	1	SHIM	(A) .38 MM (.015")
9B	R26448	2	O-Ring	(A)
10A	RE38390	1	SWITCH	-
10A	AT85153	1	SWITCH	(A) SAFETY START, (SUB FOR R36265, AR85323 AND AR89691) (SUB RE38390)
10B	AT86950	2	Switch	-
10B	AT85152	2	Switch	(A) NEUTRAL START, (SUB FOR RE12411 AND AR89691) (SUB AT86950)
14A	R27270	1	Fitting	-
14B	R27474	1	Drain Plug	-
