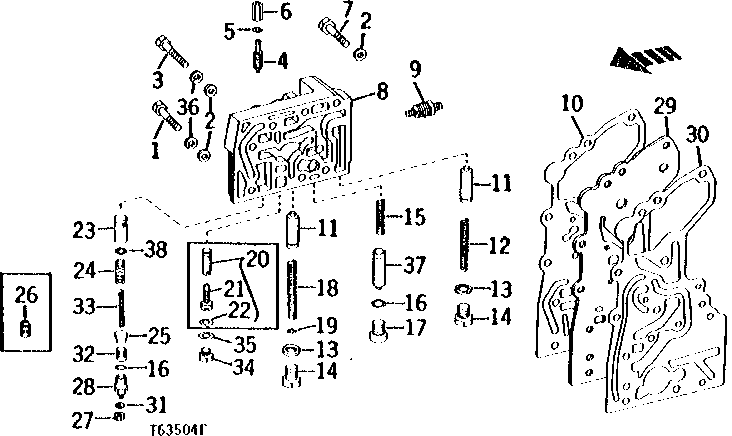

TRANSMISSION CLUTCH REGULATING VALVE (SERIAL NO. -406497) [01H05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H2055	5	CAP SCREW	7/16" X 2-1/4"
2	24H1325	7	Washer	15/32" X 59/64" X 0.065"
3	19H3197	2	CAP SCREW	7/16" X 4"
4	R39587	1	SET SCREW	HYDRAULIC OIL BYPASS
5	F2846R	1	WASHER	ALUMINUM
6	F2847R	1	NUT	-
7	19H2106	1	Cap Screw	7/16" X 2-3/4"
8	-	1	Part 8	WITH PLUG, (MARKED R41404) (WHEN AR44030 IS NO LONGER AVAILABLE SUB R41404 AND RE57836)
8	R41404	1	HOUSING	(DOES NOT INCLUDE PIPE PLUG)
8	15H561	1	Pipe Plug	1/2", (NOT ILLUSTRATED)
9	AT28163	1	SENDER	TEMPERATURE
10	R98926	1	GASKET	(SUB FOR R33178, R46816 AND R51573)
11	R57559	2	VALVE	(SUB FOR R33162) (ALSO ORDER R33259)
12	R39808	1	SPRING	RELIEF VALVE
13	R1742R	2	WASHER	ALUMINUM
14	R52589	2	FITTING PLUG	(SUB FOR R33163)
15	R28914	1	SPRING	CHECK VALVE
16	R26375	2	O-Ring	-
17	R33138	1	Fitting	-
18	R41850	1	SPRING	PRESSURE VALVE
19	R33521	1	Shim	.76 MM (.030") (DO NOT USE R56351 THIS APPLICATION ONLY)
20	R45573	1	ORIFICE	(DOES NOT INCLUDE BOLT AND O-RING)
20	-	1	Part 22	CHARGING, ACCUMULATOR, (SUB FOR T24533) (WHEN AR47611 IS LONGER AVAILABLE SUB R45573, R10093 AND R34028
21	R34028	1	Bolt	-
22	R10093	1	O-Ring	-
23	R57560	1	VALVE	BYPASS OIL FILTER, (SUB FOR R49198) (ALSO ORDER R33259)
24	R42057	1	Spring	BYPASS VALVE
25	R41148	1	GUIDE	-
26	R41147	1	Spring	BYPASS VALVE
27	14H631	1	Nut	0.190"
28	AR40795	1	TOUCH SWITCH	BYPASS VALVE, OIL FILTER
29	R33164	1	PLATE	-
30	R94331	1	GASKET	(SUB FOR R33177 AND R46815 AND T67029)
31	24H1283	1	Washer	7/32" X 1/2" X 0.049"
32	R46426	1	SPRING	-
33	R33173	1	Spring	-
34	R27094	1	Drain Plug	-
35	R26286	1	O-Ring	-
36	12H293	7	Lock Washer	7/16"
37	R57559	1	VALVE	(DOES NOT REQUIRE O-RING)
38	R33259	1	O-Ring	-

TRANSMISSION CLUTCH REGULATING VALVE (SERIAL NO. -406497) [01H05]
