Открытый узел

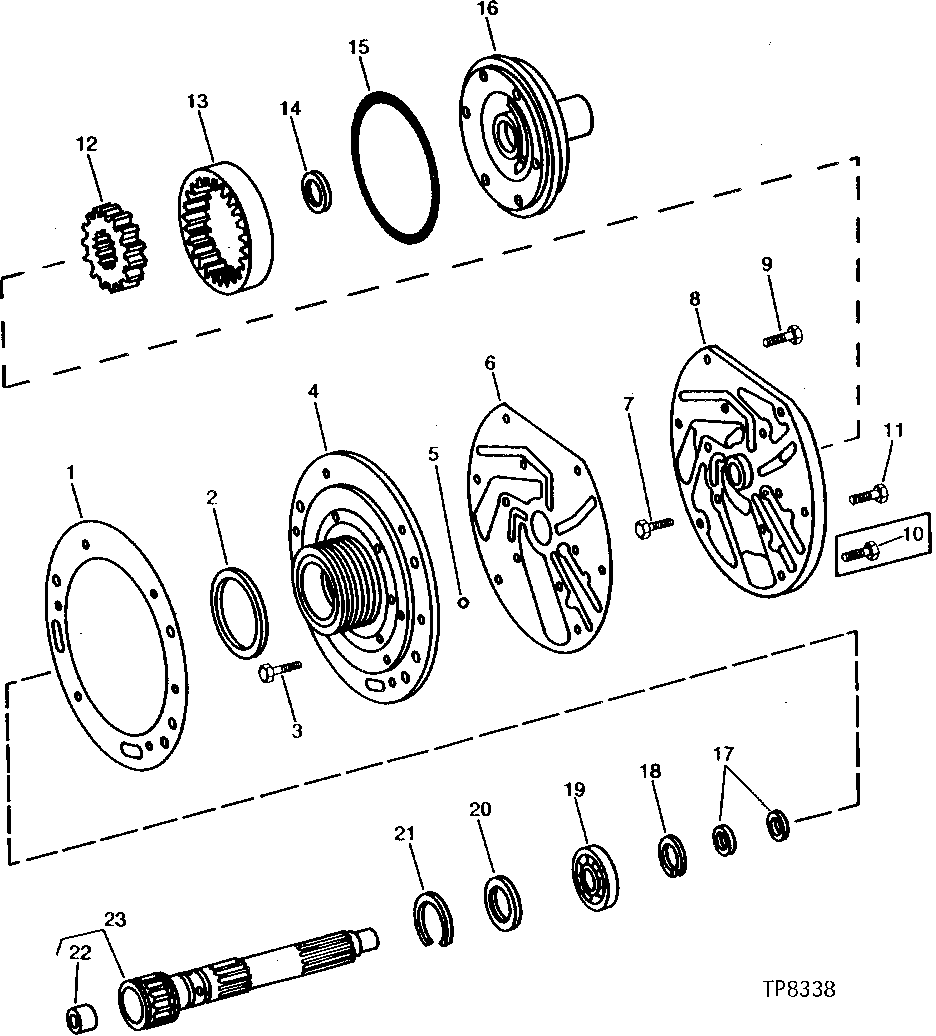

TRANSMISSION CLUTCH OIL PUMP AND MANIFOLD [01H15]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R100231	1	GASKET	(A) (SUB FOR R69309)
1	R100232	1	GASKET	(A) (SUB FOR R33171, R69585 AND R49294)
2	R33167	4	Ring	-
2	R76514	3	RING	(B) (C) (SUB FOR R43752)
3	R41035	6	CAP SCREW	(B) (C)
4	RE62596	1	MANIFOLD	(ALSO ORDER R59494) (SUB FOR R33061 AND R69588)
4	RE62596	1	MANIFOLD	(B) (SUB FOR R48649 AND R69588)
4	R52173	1	MANIFOLD	(A) (C)
5	R42849	2	Ball	(B) (C) (SUB FOR 405R)
6	R100234	1	GASKET	(A) (B) (SUB FOR R33166 AND R49295, THIS APPLICATION) (SUB FOR R57915, R70251 AND R69587)
6	R70249	1	GASKET	(A) (C) (ORDER IF AVAILABLE)
6	R100233	1	GASKET	(SUB FOR R70249)
7	19H2664	1	Cap Screw	(B) (C) (D) (E) 5/16" X 3/4"
8	-	1	Part 14	(B) (C) (D) (E) (SUB AR91607 OR AR59239, THIS APPLICATION)
9	R41041	2	CAP SCREW	(B) (C) (SUB FOR T31784) (SUB FOR R41041, THIS APPLICATION)
10	T31785	1	CAP SCREW	(SUB FOR R41920, THIS APPLICATION) (SUB T31783, THIS APPLICATION)
11	T31783	8	BOLT	(SUB FOR R40808, THIS APPLICATION)
12	-	1	Part 18	(B) (C) (D) (E) (SUB AR91607 OR AR59239, THIS APPLICATION)
13	-	1	Part 19	(B) (C) (D) (E) (SUB AR91607 OR AR59239, THIS APPLICATION)
14	R34650	1	SEAL	(B) (C) (D) (E)
15	R39876	1	Packing	(B) (C) (D) (E)
16	-	1	Part 22	(B) (C) (D) (E) (SUB AR91607 OR AR59239, THIS APPLICATION)
17	R26753	2	RING	(B) (C)
18	F2370R	1	SNAP RING	(B) (C)
19	JD7145	1	Ball Bearing	(B) (C)
20	R34295	1	THRUST WASHER	(B) (C)
21	A3815R	1	Snap Ring	(B) (C)
22	R33168	1	BUSHING	(B) (C)
23	AR32461	1	SHAFT	(A) (B)
23	AR56920	1	SHAFT	(A) (C)
..	AR91601	1	CLUTCH	(A) (SUB FOR AR53204, THIS APPLICATION) (SUB FOR AR52747)
..	AR98251	1	Clutch	(A)
..	AR91607	1	OIL PUMP	(A) (SUB FOR AR53213)
..	AR59239	1	OIL PUMP	(A)

TRANSMISSION CLUTCH OIL PUMP AND MANIFOLD [01H15]

Нет текстового описания
