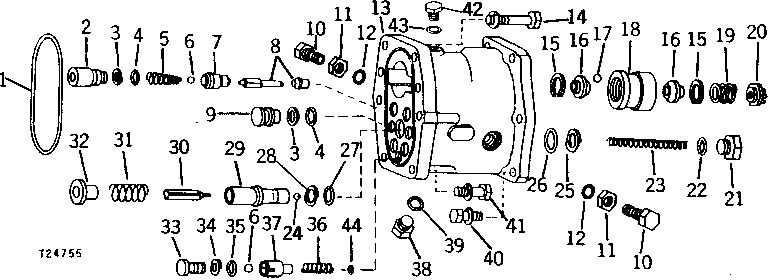

STEERING VALVE (SERIAL NO. -002365) [02B05]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34733	1	WASHER	(A)
2	R41724	4	PLUG	-
3	R32588	6	Back-Up Ring	(A)
4	R459R	6	O-Ring	(A)
5	R26565	4	COMPRESSION SPRING	-
6	400R	5	Ball	-
7	R59083	4	VALVE	(SUB FOR R28124)
8	AR49535	2	SHAFT	METERING, UPPER, (SUB FOR AR30589)
8	AR49536	2	SHAFT	METERING, LOWER, (SUB FOR AR30590)
9	R34131	2	Plug	-
10	R40338	2	DRAIN PLUG	-
11	R27296	2	Nut	-
12	R26286	2	O-Ring	(A)
13	AR47849	1	HOUSING	(MARKED R45812) WITH GUIDES
13	-	1	Part 14	WITH GUIDES AND METERING SHAFTS (SUB FOR AR42259 AND R41792) (WHEN AR47847 MARKED R45812 IS NO LONGER AVAILABLE SUB AR47849, R44254, R44255 AND R44256)
14	19H1990	4	Cap Screw	HS, SAE 8, 1/2" X 2-1/4", (SUB FOR R48784)
14	12H301	4	Lock Washer	1/2"
15	R26425	2	SNAP RING	-
16	R40595	2	BEARING RACE	-
17	R26552	13	Ball	-
18	R40757	1	BUSHING	-
19	R40596	1	SPRING	-
20	R40597	1	LOCK NUT	-
21	R39112	1	Fitting	-
22	R26375	1	O-Ring	(A)
23	R31278	1	SPRING	CHECK VALVE
24	R42849	1	Ball	-
25	R30323	1	BACK-UP RING	(A)
26	P48347	1	O-Ring	(A) (SUB FOR T12860 AND R34404)
27	B2762R	1	O-Ring	(A)
28	R26546	1	BACK-UP RING	(A)
29	R34123	1	VALVE SEAT	CHECK VALVE
30	R42661	1	SEAT	-
31	R26151	1	SPRING	-
32	R34122	1	STOP	-
33	AR40453	1	SEAT	INLET CHECK VALVE, WITH COVER
34	R34129	1	Back-Up Ring	(A)
35	A4365R	1	O-Ring	(A)
36	R44256	1	SPRING	-
37	R44254	1	GUIDE	-
38	R27216	1	DRAIN PLUG	(SUB FOR R31631)
39	R26287	1	O-Ring	-
40	19H3483	6	Cap Screw	3/8" X 1-1/8"
40	12H304	6	Lock Washer	3/8"
41	19H2993	2	Cap Screw	1/2" X 1-1/2", (SUB FOR R48785)
41	12H301	2	Lock Washer	1/2"
42	R27216	1	DRAIN PLUG	(SUB FOR R31631)
43	R26287	1	O-Ring	-
44	R44255	1	WASHER	-
..	AR41931	1	VALVE	COMPLETE
..	AR39585	1	KIT	STEERING PISTON CYLINDER AND VALVE ASSEMBLY
