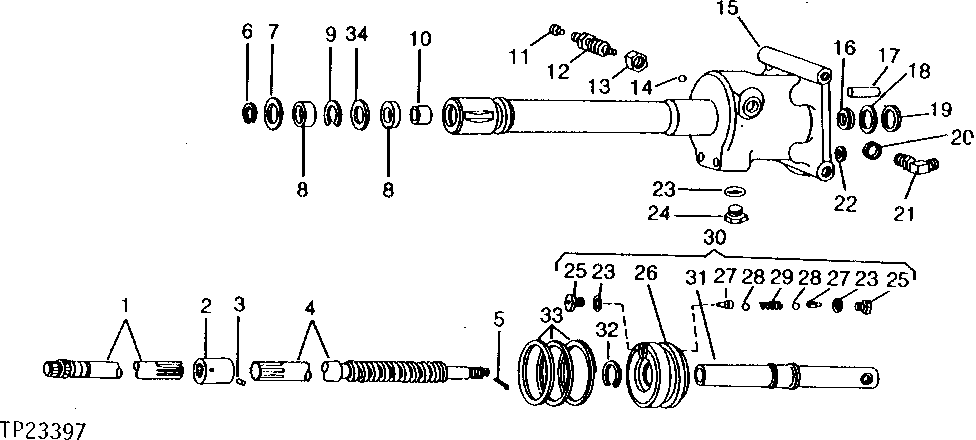

STEERING PISTON AND HOUSING (SERIAL NO. -002365) [02B03]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R28137	1	STEERING SHAFT	-
2	R27319	1	SPLINED COUPLING	-
3	34H282	1	Spring Pin	3/16" X 1"
4	R34125	1	SHAFT	STEERING VALVE OPERATING
5	11M7081	1	Cotter Pin	2.500 X 20 MM
6	B169R	1	SNAP RING	-
7	R42629	1	WASHER	-
8	R32730	2	SEAL	(A) (SUB FOR AR34172, THIS APPLICATION)
9	R26933	1	SNAP RING	-
10	R27320	1	BUSHING	-
11	21H979	1	SCREW	0.190" X 5/16" RD. HD.,
12	R27299	1	SCREW	BLEED
13	R27453	1	Nut	-
14	400R	1	Ball	1/4"
15	AR32699	1	CYLINDER	HOUSING, WITH BUSHING
16	R27087	1	WASHER	-
17	R32186	2	DOWEL PIN	-
18	R26441	2	BACK-UP RING	(A)
19	A3606R	2	O-RING	(A)
20	R26448	1	O-Ring	(A)
21	AT35121	1	Elbow Fitting	90°, ADJUSTABLE, (SUB FOR AR26725)
22	-	1	Part 22	(A) ( R55462, NO LONGER AVAILABLE) (SUB AR67783 KIT)
23	R26287	3	O-Ring	(USE WITH R31202)
24	R27216	1	DRAIN PLUG	(SUB FOR R31631)
25	R31202	2	VALVE	RELIEF VALVE
26	AR30298	1	PISTON	-
27	R31201	2	SHAFT	SYNCHRONIZING VALVE
28	H871R	2	Ball	-
29	A4816R	1	SPRING	-
30	AR30297	1	PISTON	-
31	-	1	Part 31	(SUB AR30298 PISTON)
32	F534R	1	Snap Ring	-
33	R40567	3	WASHER	(A)
34	R32731	1	WASHER	(A)
..	AR41931	1	VALVE	"COMPLETE STEERING VALVE ASSEMBLY"
..	AR39585	1	KIT	STEERING PISTON CYLINDER AND VALVE ASSEMBLY OVERHAUL
