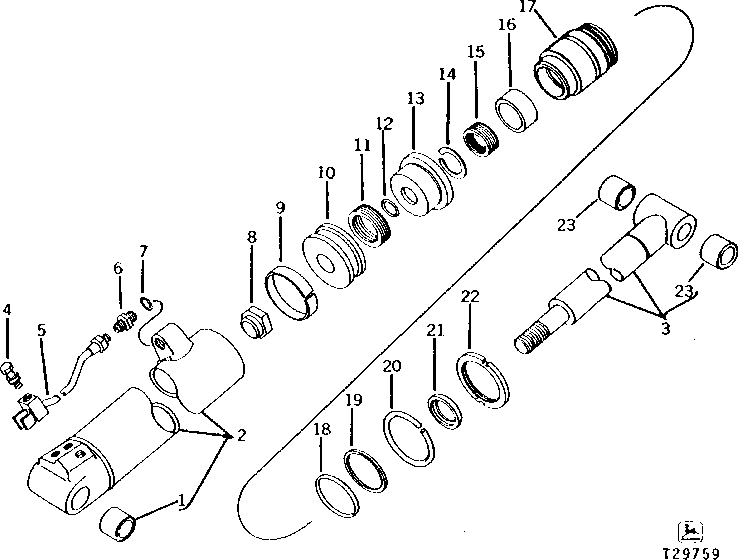

SCARIFIER AND SNOWPLOW LIFT CYLINDER [02E15]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U10745	2	BUSHING	-
2	AU41267	1	HYDRAULIC CYLINDER BARREL	1/4"
3	RE23955	1	HYDRAULIC CYLINDER ROD	(SUB FOR AU41270)
4	19H3239	1	Cap Screw	3/8" X 1-1/4"
4	12H304	1	Lock Washer	3/8"
4	24H1305	1	Washer	13/32" X 13/16" X 0.065"
5	AU41272	1	TUBE	-
6	R27212	1	Fitting	-
7	R26448	1	O-Ring	-
8	L2235CU	1	LOCK NUT	-
9	U17337	1	WEAR RING	(A)
10	U17334	1	PISTON	-
11	T37381	1	PACKING	(A) (SUB RE11904, R77809 AND (2) R78389, THIS APPLICATION) (SUB FOR U12968, THIS APPLICATION) (SUB FOR R72830)
12	R29463	1	O-Ring	(A)
13	U17347	1	PISTON	(SUB RE11904, R77809 AND (2) R78389)
14	U14128	1	SNAP RING	-
15	T54809	1	PACKING	(A) (SUB FOR U12972, THIS APPLICATION) (SUB FOR R72831)
15	R76802	1	SEAL	(A) (SUB FOR U44948 AND T36998)
16	U41823	1	WEAR RING	(A)
17	U41950	1	HYDR. CYLINDER ROD GUIDE	(SUB FOR AU41686) (ALSO ORDER U41823)
18	L2301CU	1	O-Ring	(A)
19	L2309CU	1	BACK-UP RING	(A)
20	L2300CU	1	SNAP RING	-
21	U11019	1	SEAL	(A)
22	U12103	1	NUT	-
23	U11121	2	BUSHING	-
..	-	1	Part 27	WITH RETURN TUBE ( AU41266 NO LONGER AVAILABLE) (SUB AU43107)
..	-	1	Part 28	WITH RETURN TUBE ( AU43107 NO LONGER AVAILABLE, SUB RE30870)
..	AU41650	1	KIT	(SUB AR105410)
..	-	1	Part 30	(SUB FOR AU43127) (SUB FOR AR96531, THIS APPLICATION) ( AR105410 NO LONGER AVAILABLE, SUB RE30874, RE16118 AND R77809)
