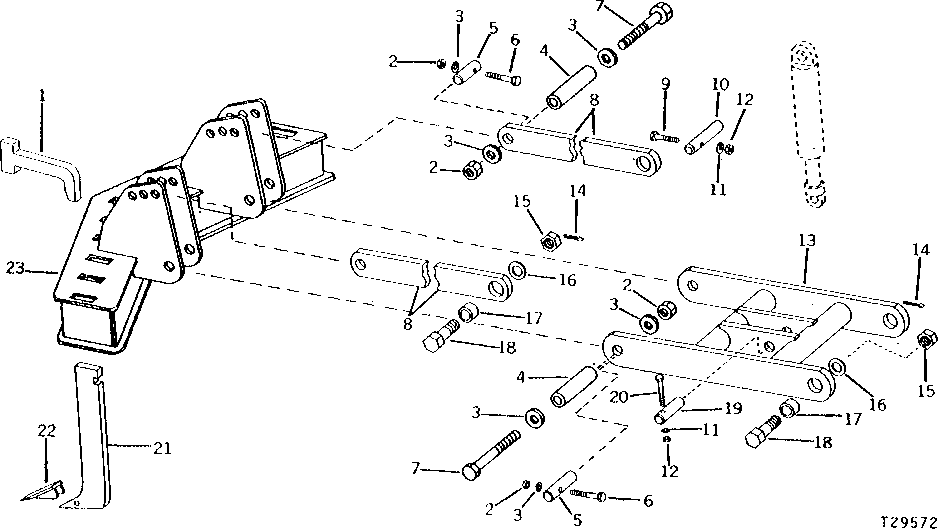

SCARIFIER AND BULLDOZER LINKAGE (SERIAL NO. 002362- ) [02G06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T104223	9	Retainer	(A) (SUB FOR T38062)
2	K40014	4	Lock Nut	(A) (SCARIFIER) (SUB FOR BP12214, THIS APPLICATION)
2	K40014	4	Lock Nut	(BULLDOZER) (SUB FOR U12622 AND BP12214)
3	24H1374	8	Washer	(A) 21/32" X 3" X 3/8", (SCARIFIER)
3	12H301	4	Lock Washer	1/2", (BULLDOZER)
4	T40387	4	BUSHING	(A) (SCARIFIER)
5	T33236	4	PIN	(BULLDOZER)
6	19H1868	4	CAP SCREW	1/2" X 3-3/4", (BULLDOZER)
7	19H3586	4	Cap Screw	(A) 1/2" X 4-1/4", (SCARIFIER)
8	U42934	2	STRAP	-
9	19H2458	1	Cap Screw	3/8" X 3"
10	U42423	1	PIN	-
11	12H304	4	Lock Washer	3/8"
12	14H812	2	NUT	3/8"
13	AU41996	1	SCARIFIER BOOM	-
14	11M7085	4	Cotter Pin	6.300 X 63 MM
15	14H991	4	Nut	1-1/2"
16	24H1540	4	Washer	1-17/32" X 2-1/2" X 1/4"
17	U42424	4	BUSHING	-
18	T79785	4	BOLT	(SUB FOR U42947, THIS APPLICATION)
19	U42421	1	PIN	-
20	19H2700	1	Cap Screw	3/8" X 4-1/2"
21	T114792	5	Shank	(A) (SUB FOR U41915 AND T71802)
22	T1L	5	TOOTH	(A) (SUB FOR U41916)
23	-	1	Part 25	(A) ( AT38966 NO LONGER AVAILABLE)
..	-	1	Part 26	( AT38971 NO LONGER AVAILABLE,SUB COMPONENTS)
..	-	1	Part 27	(A) ( AT32464 NO LONGER AVAILABLE,SUB COMPONENTS)

SCARIFIER AND BULLDOZER LINKAGE (SERIAL NO. 002362- ) [02G06]
