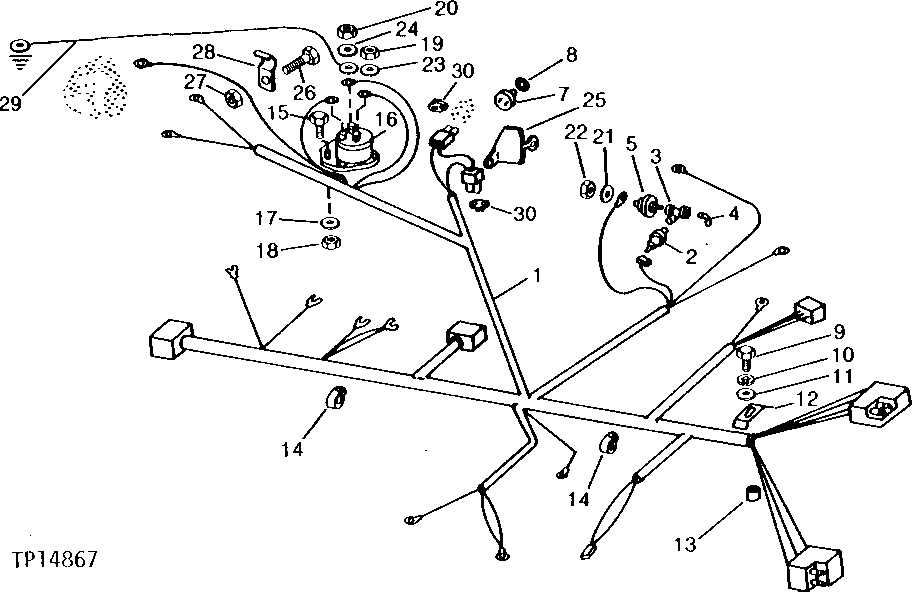

REAR WIRING HARNESS (SERIAL NO. 010571- ) [02J11]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 2	( AT105777 NO LONGER AVAILABLE FOR SERVICE)
1	-	1	Part 1	( AT66935 AND AT75146 NO LONGER AVAILABLE) (SUB AT105777 AND AT85152)
2	AT85174	1	Switch	(SUB FOR AR27977)
3	T19158	1	Tee Fitting	-
4	15H197	1	Elbow Fitting	1/8", 90°
5	AT84200	1	SENDER	(SUB FOR AT24102)
6	R72415	1	SHIELD	-
7	AT86950	2	Switch	-
7	AT85152	2	Switch	(SUB FOR RE12411) (SUB AT86950)
7	RE38390	2	SWITCH	-
7	AT85153	2	SWITCH	(SUB FOR R36265, AR85323 AND AR89691) (SUB RE38390)
8	T16911	1	SHIM	-
9	19H3065	1	Cap Screw	3/8" X 2"
10	12H304	1	Lock Washer	3/8"
11	24H1305	1	Washer	13/32" X 13/16" X 0.065"
12	U16463	1	CLAMP	-
13	28H2497	1	Spacer	3/8" X 5/8"
14	R35668	4	Clamp	-
15	19H1919	2	Cap Screw	1/4" X 5/8"
16	RE38391	1	Starter Relay	-
16	-	1	Part 20	( AT68973 NO LONGER AVAILABLE) (SUB FOR AM52191, AR44999 AND AM53945, THIS APPLICATION) (ALSO ORDER 12H246, 14H631, (2) 12H303 AND (2) 14H785) (SUB RE38391)
17	12H302	2	Lock Washer	1/4"
18	14H786	2	Nut	1/4"
19	14H785	2	Nut	5/16", (USE WITH AM52191 OR AM53945)
19	14H650	2	Nut	5/16", (USE WITH AR44999)
20	14H631	1	Nut	0.190", (USE WITH AM52191 OR AM53945)
20	14H605	1	Nut	0.164", (USE WITH AR44999)
21	12H295	1	Lock Washer	0.190"
22	14H631	1	Nut	0.190"
23	12H303	2	Lock Washer	5/16", (USE WITH AM52191 OR AM53945)
24	12H246	1	LOCK WASHER	0.190", (USE WITH AM52191 OR AM53945)
25	R72415	1	SHIELD	-
26	19H1948	1	Cap Screw	1/4" X 3/4"
27	14H786	1	Nut	1/4"
28	R27573	1	Clamp	-
29	AU42892	1	Wiring Lead	-
30	R78048	2	Elec. Connector Accessory	-

REAR WIRING HARNESS (SERIAL NO. 010571- ) [02J11]
