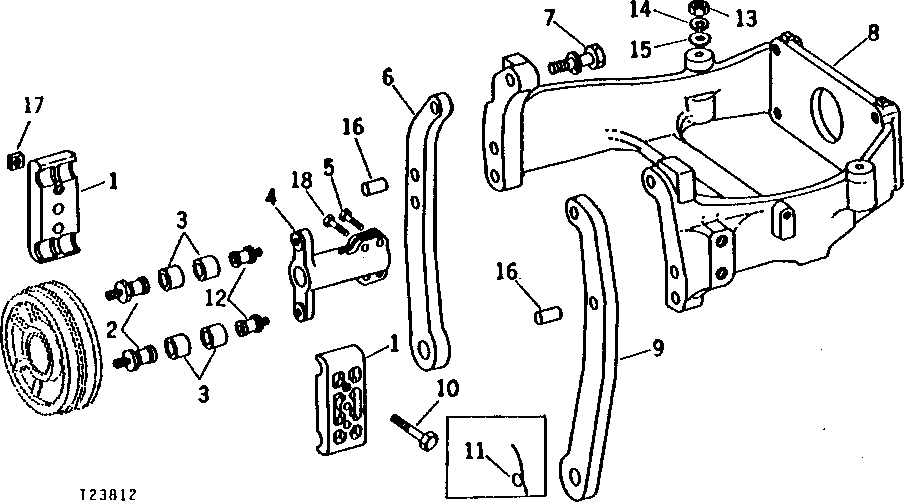

HYDRAULIC PUMP DRIVE AND ENGINE SUPPORT (SERIAL NO. -010078) [02C12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R34362	2	CLAMP	(SUB AT68668, THIS APPLICATION)
2	T37252	2	SCREW	(SUB FOR U42206, THIS APPLICATION)
3	AR49427	1	BUSHING	(A) (SET OF 4) (SUB FOR AR34098)
4	T36523	1	DRIVE SHAFT	(A) (SUB AT68668, THIS APPLICATION)
5	19H3239	2	Cap Screw	3/8" X 1-1/4"
6	T38182	1	SUPPORT	ENGINE, L.H. (SUB FOR U42205)
7	19H3208	4	Cap Screw	5/8" X 3"
7	12H294	4	Lock Washer	5/8"
8	T151256	1	SUPPORT	(SUB FOR R38084, THIS APPLICATION)
9	T38181	1	SUPPORT	ENGINE, R.H. (SUB FOR U42204)
10	19H2467	2	CAP SCREW	3/8" X 2-1/2", (SUB FOR R34363) (ALSO ORDER T11234)
11	-	1	Part 12	304.8 MM LONG (16 GAUGE X 12") (USE WITH R34363)
12	R34360	2	SCREW	(A)
13	14H812	2	NUT	3/8"
14	12H304	2	Lock Washer	3/8"
15	24H1214	2	Washer	13/32" X 1-1/8" X 0.065"
16	U45491	2	DOWEL PIN	-
17	T11234	2	Lock Nut	(USE WITH 19H2116)
18	19H988	2	CAP SCREW	3/8" X 1-1/4"
..	AT42312	1	SHAFT	(NO LONGER AVAILABLE, ORDER INDIVIDUAL COMPONENTS)

HYDRAULIC PUMP DRIVE AND ENGINE SUPPORT (SERIAL NO. -010078) [02C12]
