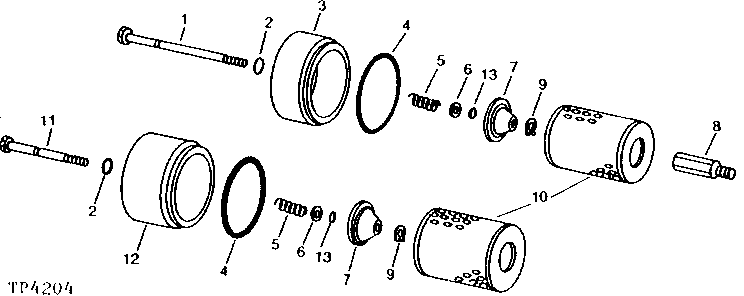

HYDRAULIC AND TRANSMISSION OIL FILTERS (AUTOMATIC BLADE CONTROL SYSTEM) [03C08]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R65894	1	Screw	(SUB FOR R54750 AND R58765, THIS APPLICATION)
2	R394R	2	O-Ring	-
3	R58652	1	Cover	TRANSMISSION OIL FILTER
4	R34733	2	WASHER	-
5	R66064	2	SPRING	(SUB FOR H819R, THIS APPLICATION)
6	24H1227	2	Washer	17/32" X 13/16" X 0.060"
7	R28593	1	RETAINER	(USE WITH R394R ROUND CROSS-SECTION O-RING) (SUB R65892 AND F2741R)
7	R65892	2	RETAINER	(USE WITH F2741R, SQUARE CROSS-SECTION O-RING)
8	-	1	Part 9	( R58765 NO LONGER USED THIS APPLICATION) (SUB R65894)
9	R32507	2	Snap Ring	-
10	AR98098	2	Filter Element	(SUB FOR AR70636) (SUB FOR AR70506, THIS APPLICATION)
11	R54750	1	SCREW	-
12	R63093	1	COVER	HYDRAULIC OIL FILTER (SUB FOR R51654, THIS APPLICATION)
13	R394R	1	O-Ring	(USE WITH R28593 RETAINER)
13	F2741R	2	Packing	(USE WITH R65892 RETAINER)

HYDRAULIC AND TRANSMISSION OIL FILTERS (AUTOMATIC BLADE CONTROL SYSTEM) [03C08]

Нет текстового описания
