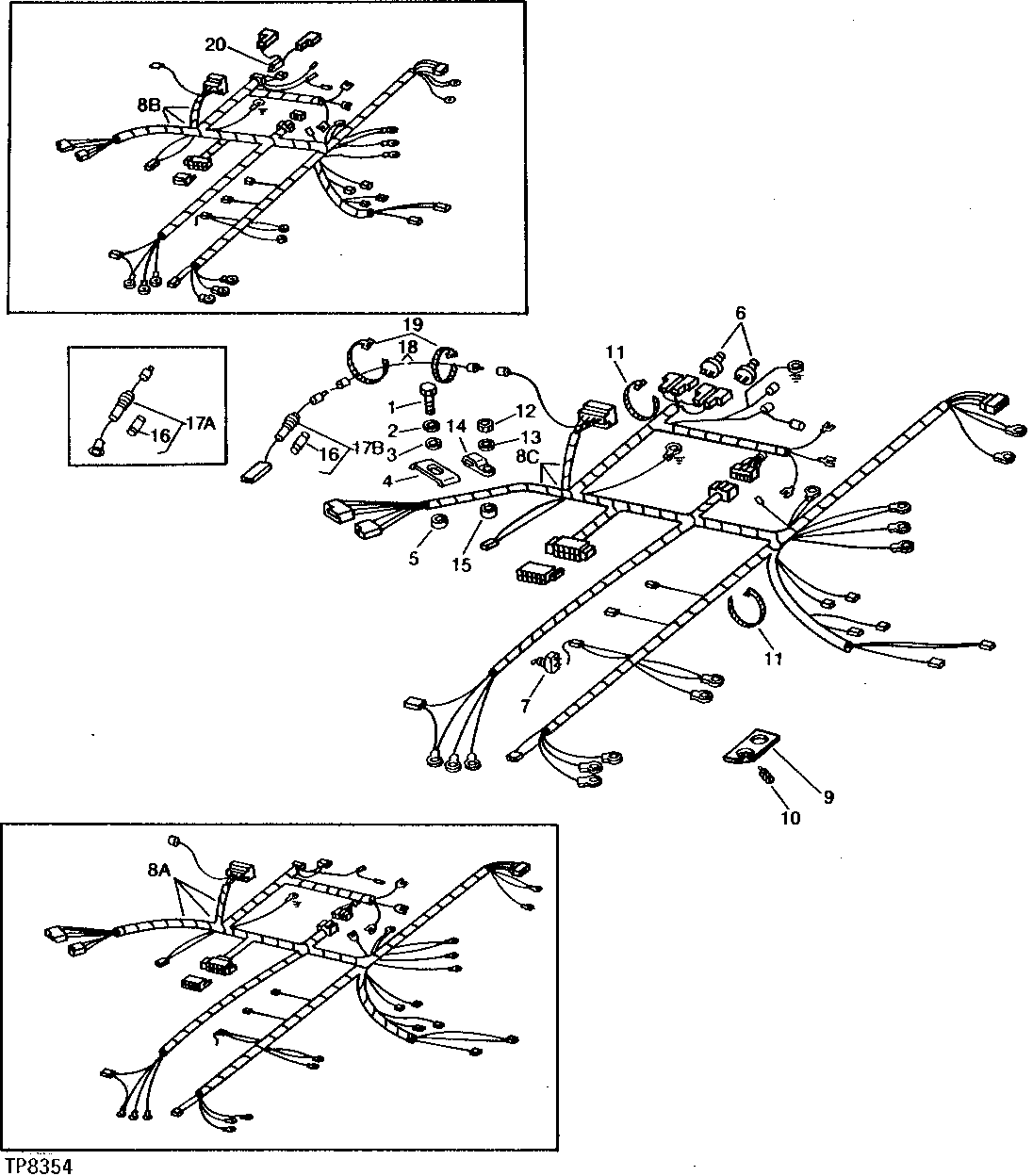

FRONT WIRING HARNESS (SERIAL NO. 001700- ) [02J07]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	19H3065	1	Cap Screw	3/8" X 2"
2	12H304	1	Lock Washer	3/8"
3	24H1305	1	Washer	13/32" X 13/16" X 0.065"
4	U16463	1	CLAMP	-
5	28H2497	1	Spacer	3/8" X 5/8"
6	R32548	2	Pressure Switch	STOP LIGHT, (SUB AR85759 AND AT71012, THIS APPLICATION)
6	AL27809	2	SWITCH	(USE IF AVAILABLE) (ALSO ORDER AT71012) (SUB FOR AR86974 AND AR85759)
6	AL67715	2	Switch	(SUB FOR AL27809)
7	AU41449	6	TOGGLE/ROCKER SWITCH	-
9	U42339	2	PLATE	GROUND
10	21H1300	2	SCREW	0.190" X 3/8"
10	14H778	4	Nut	0.190"
11	H77698	4	Tie Band	(SUB FOR AT30417 AND T44946)
11	H77698	2	Tie Band	(SUB FOR AT30417 AND T44946)
12	14H812	1	NUT	3/8"
13	12H304	1	Lock Washer	3/8"
14	R35668	1	Clamp	-
15	28H2481	1	Spacer	3/8" X 1/2"
16	AT28061	1	FUSE	5 AMPERE
18	AT41987	1	WIRING LEAD	HEATER
19	R44302	2	Tie Band	-
20	AT71012	2	WIRING HARNESS	-
8A	AT43796	1	WIRING HARNESS	(SUB FOR AT33885) (ALSO ORDER AT36376 AND AT41987 WHEN EQUIPPED WITH HEATER) (SUB AT69822)
8B	AT69822	1	WIRING HARNESS	(ALSO ORDER AT36376 AND AT41987 WHEN EQUIPPED WITH HEATER) (SUB AT72532 AND (2) AR85759)
8C	AT72532	1	WIRING HARNESS	(ALSO ORDER AT71012)
17A	AT36376	1	WIRING LEAD	-
17B	AT74928	1	WIRING LEAD	-

FRONT WIRING HARNESS (SERIAL NO. 001700- ) [02J07]
