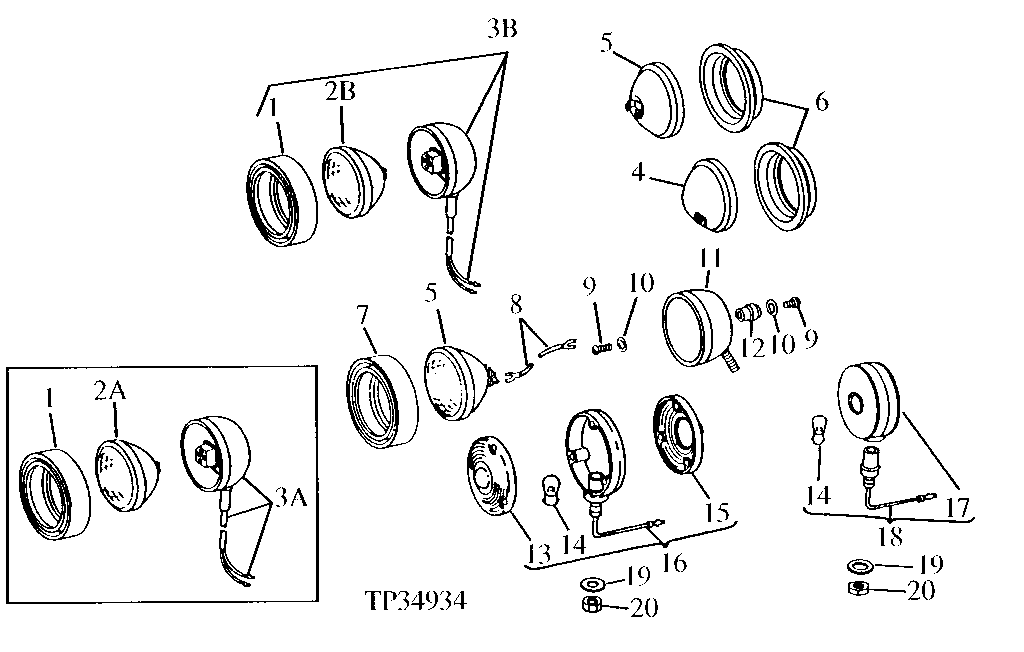

FRONT, REAR, WARNING, AND WORK LAMP PARTS [02J24]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R30182	1	BEZEL	-
4	AU41460	2	TAIL LAMP	-
5	AR21059	4	HEADLIGHT	-
6	U42340	4	Grommet	-
7	R30182	1	BEZEL	(HOBBS)
7	R31250	1	BEZEL	(GUIDE)
8	-	2	Part 11	165 MM LONG (6-1/2") (MAKE FROM R32007 AND TWO R32016 FROM AR84006 WIRE KIT)
9	21H1293	6	SCREW	RD. HD., NO. 8 X 5/16"
10	12M7084	6	Lock Washer	4.300 MM
11	-	2	Part 14	( AR35782 NO LONGER AVAILABLE) (SUB RE27099, E41563, E41564 AND 14H865)
12	R30181	1	PLATE	(HOBBS)
12	AA3495R	1	SUPPORT	WITH SPRING, SCREWS AND LOCK WASHERS (GUIDE)
13	R42666	1	LENS	AMBER (USE WITH GUIDE WARNING LAMP ONLY)
14	AD2062R	1	Bulb	NO. 1073, 32 C.P., 12-16 VOLT (USE WITH GUIDE OR HOBBS)
15	R42666	1	LENS	AMBER (USE WITH GUIDE WARNING LAMP ONLY)
16	AH164498	2	LAMP	(SUB FOR AR38456 AND AT23467) WARNING (INCLUDES TWO AMBER LENS) (GUIDE OR HOBBS)
16	AR54975	1	LAMP	WARNING (ONE AMBER LENS AND ONE BLACK LENS) (COMPLIES WITH IOWA SAFETY CODY)
17	-	1	Part 22	WITH AMBER LENS (USE WITH HOBBS WARNING LIGHT ONLY) ( AR72257 NO LONGER AVAILABLE)
18	AH164498	1	LAMP	(SUB FOR AR38456 AND AT23467) (INCLUDES TWO AMBER LENS) (HOBBS)
19	R38371	1	Washer	-
20	14H865	1	Nut	1/2"
2A	AU41999	1	LAMP	-
2B	RE25125	1	Dual Beam Headlamp	-
3A	-	1	Part 4	( AU42000 NO LONGER AVAILABLE) (SUB AL65870)
3B	AL65870	1	Headlight	(SUB FOR AU42000)

FRONT, REAR, WARNING, AND WORK LAMP PARTS [02J24]
