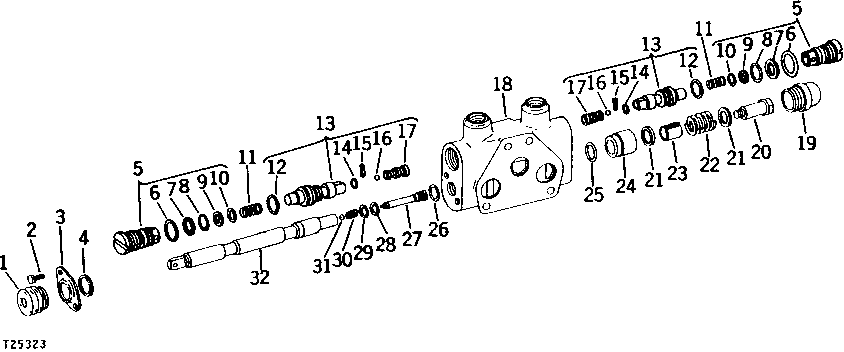

FRAME STEER CONTROL VALVE (SERIAL NO. 001700-002226) [01J09]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42800	1	BOOT	(A)
2	21H1294	2	Screw	0.190" X 5/16"
3	U42790	1	RETAINER	-
4	U42796	1	WASHER	-
5	AU41858	2	PLUG	(SUB AT74667)
6	N130510	2	O-Ring	(A) (SUB FOR 32240, THIS APPLICATION)
7	H60330	2	BACK-UP RING	(A)
8	P48347	2	O-Ring	(A)
9	-	2	Part 9	(A) ( U42806 NO LONGER AVAILABLE)
10	T73704	2	O-RING	(A) (SUB FOR P46051, THIS APPLICATION)
11	U43630	2	SPRING	-
12	32246	2	O-Ring	(A) (SUB FOR R459R, THIS APPLICATION)
13	AU41862	2	PLUNGER	PLUNGER AND POPPET ASSEMBLY, (SUB AT74667)
14	U40962	2	O-Ring	(A) (SUB AU41862, THIS APPLICATION)
15	34H380	2	SPRING PIN	1/16" X 3/8", (SUB AU41862, THIS APPLICATION)
16	U42785	2	BALL	(SUB AU41862)
17	U42791	2	PLUG	(SUB AU41862)
18	-	1	Part 18	(SUB AT38775)
19	AU42362	1	CAP	-
20	U42794	1	SCREW	-
21	N31767	2	WASHER	-
22	U43629	1	SPRING	-
23	U43626	1	BUSHING	-
24	U43627	1	BUSHING	-
25	T107141	1	O-Ring	(A) (SUB FOR R375R, THIS APPLICATION)
26	T107142	1	O-RING	(A) (SUB FOR H36256, THIS APPLICATION)
27	U42901	1	PLUG	-
28	A3917R	1	O-Ring	(A)
29	U42902	1	O-Ring	(A)
30	U42797	1	SPRING	-
31	H60816	1	Ball	-
32	-	1	Part 32	(SUB AT38775)
..	AT36730	1	VALVE	(B) 4-WAY WITH DOUBLE LOCKOUTS (FRAME STEER) (SUB AT38775) (SUB AT74669)
..	AT73424	1	SEAL KIT	O-RING AND SEAL FOR SECTION ASSEMBLY, (SUB FOR AU41864) (SUB AT74666) (ALL PARTS MARKED(A))
