Открытый узел

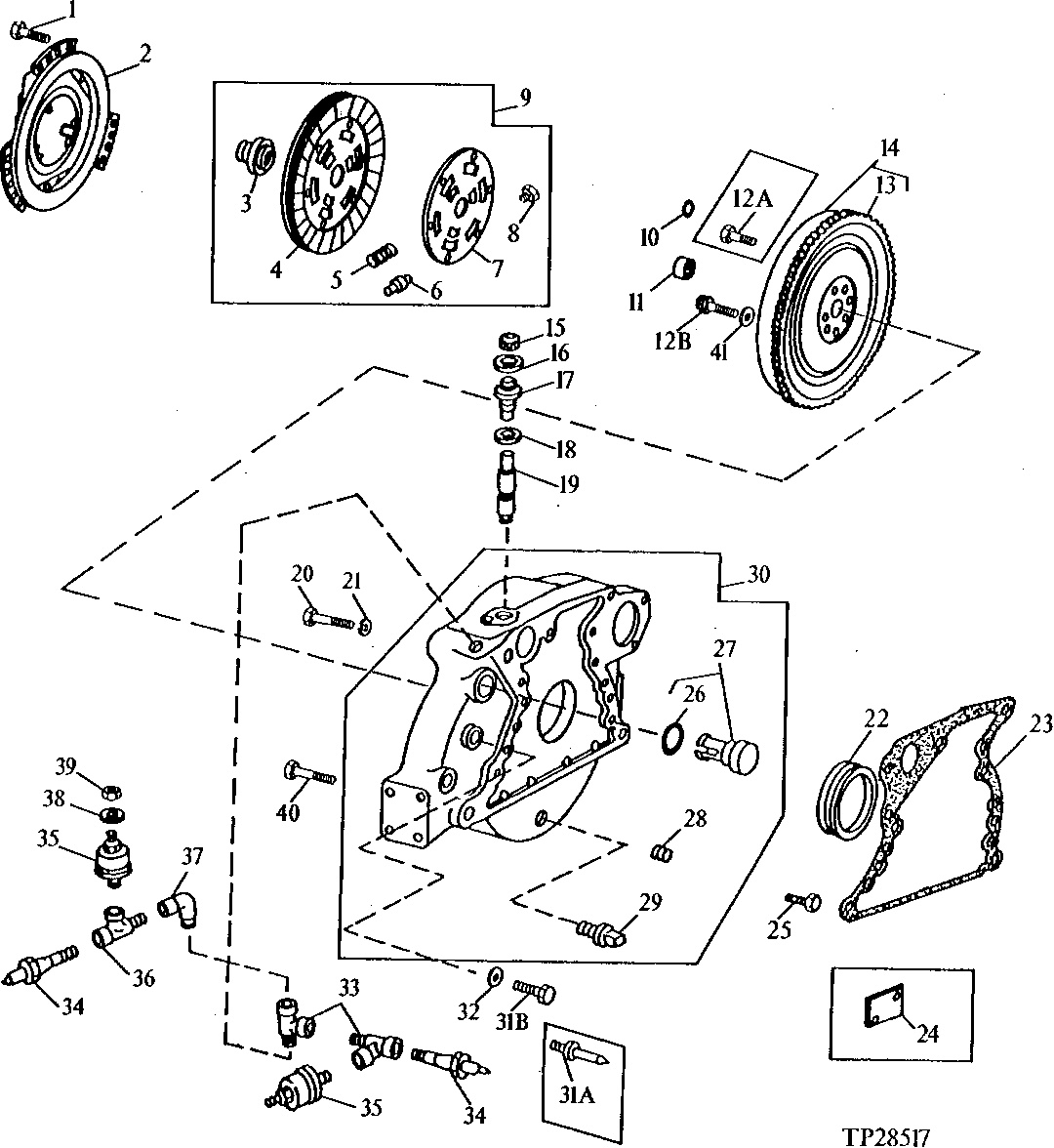

FLYWHEEL HOUSING AND CLUTCH DISK [01G23]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T20843	6	CAP SCREW	-
2	AT25474	1	PLATE	(SUB AT43219)
3	-	1	Part 3	(SUB AT114585)
4	-	1	Part 4	(SUB AT114585)
5	-	3	Part 5	INNER, (SUB AT114585)
5	-	6	Part 6	OUTER, (SUB AT114585)
6	-	6	Part 7	(SUB AT114585)
7	-	1	Part 8	(SUB AT114585)
8	-	18	Part 9	(SUB AT114585)
9	AT114585	1	Clutch Disk	(SUB FOR AT25888 AND AT55983)
10	T27404	6	Washer	PRESSURE PLATE TO FLYWHEEL
11	JD9211	1	BALL BEARING	-
13	R28811	1	Ring Gear	-
14	RE19083	1	FLYWHEEL	(SUB FOR AT25473)
15	B3362R	1	Cap	-
16	B3285R	1	Washer	-
17	T22537	1	Fitting	TACHOMETER DRIVE
18	T13213	1	WASHER	(SUB FOR H1058R, THIS APPLICATION)
19	T22536	1	Gear	TACHOMETER DRIVE
20	19H3385	8	Cap Screw	1/2" X 1-1/8"
21	12H304	8	Lock Washer	3/8"
22	RE24959	1	SEAL	(USE IF AVAILABLE) (SUB FOR RE17831)
22	RE44574	1	Seal	(SUB FOR RE24959)
23	R70483	1	GASKET	(SUB FOR T23596 AND R49516, THIS APPLICATION)
24	T27160	1	COVER	TIMING GEAR, (USE WITH T25920)
25	19H2038	1	Cap Screw	3/8" X 1/2"
26	R27149	1	O-Ring	-
27	AR61533	1	Plug	-
28	15H561	1	Pipe Plug	1/2"
29	AT63089	1	Drain Plug	-
30	RE38348	1	Housing	(MARKED R98778 OR R120034) (SUB FOR AR89606)
32	T20168	1	Washer	-
33	R70752	2	TEE FITTING	(WITH TURBOCHARGER) (SUB FOR T19158, THIS APPLICATION)
34	AT85174	1	Switch	(SUB FOR AR27977)
35	AT84200	1	SENDER	(SUB FOR AT24102)
36	R70752	1	TEE FITTING	(WITHOUT TURBOCHARGER) (SUB FOR T19158, THIS APPLICATION)
37	T12938	1	Elbow Fitting	-
38	12H295	1	Lock Washer	0.190"
39	14H631	1	Nut	0.190"
40	19H2599	4	Cap Screw	5/8" X 2-1/2"
41	T33177	4	WASHER	(USE WITH RE19083)
12A	19H2993	4	Cap Screw	1/2" X 1-1/2" HS, SAE 8 (SUB T20139) (SUB FOR R46162, THIS APPLICATION) (SUB R74444, THIS APPLICATION)
12B	R74444	4	SCREW	-
31A	T20090	1	SCREW	(SUB 19H2351)
31B	19H2351	1	Cap Screw	1/2" X 1/2"

FLYWHEEL HOUSING AND CLUTCH DISK [01G23]

Нет текстового описания
