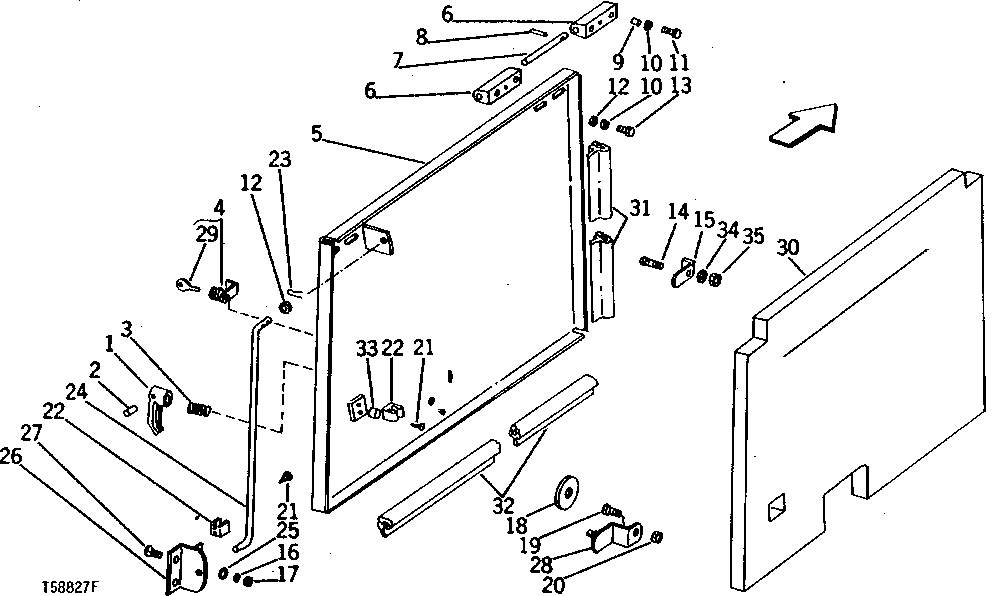

ENGINE SIDE SHIELDS (SERIAL NO. 001700- ) [02I20]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	M61002	1	HANDLE	-
2	25H722	1	GROOVE PIN	1/8" X 1-1/4"
3	T14057	1	SPRING	-
4	AT112471	1	Lock	(SUB FOR AT34634)
5	AT34633	1	Shield	R.H.
5	AT34636	1	Shield	L.H.
6	T35635	4	Hinge	-
7	T35636	2	Pin Fastener	-
8	34H284	2	Spring Pin	3/16" X 1-1/4"
9	28H2481	4	Spacer	3/8" X 1/2"
10	12H304	8	Lock Washer	3/8"
11	19H3483	4	Cap Screw	3/8" X 1-1/8"
12	24H1305	6	Washer	13/32" X 13/16" X 0.065"
13	19H2021	4	Cap Screw	3/8" X 5/8"
14	03H1505	2	Bolt	5/16" X 1-3/4"
15	T35637	2	Angle	-
16	12H303	2	Lock Washer	5/16"
17	14H785	2	Nut	5/16"
18	T36265	1	WASHER	-
19	03H2138	1	BOLT	3/8" X 1-1/2", RD. HD., 3/8" X 1-1/2"
20	14H812	1	NUT	3/8"
21	21H1135	4	Screw	0.164" X 1-1/2", (WITH SOUND REDUCTION PANELS)
21	21H1292	4	SCREW	0.164" X 1/4"
22	T35633	2	Retainer	-
23	11M7015	2	Cotter Pin	3.200 X 25 MM
24	T35632	1	Rod	-
25	24H1136	2	Washer	11/32" X 11/16" X 0.065"
26	AT34638	1	Bracket	RIGHT
26	AT34637	1	Bracket	LEFT
27	03H1540	2	Bolt	5/16" X 3/4"
28	AT35235	1	Latch	-
29	T33802	1	SHAFT KEY	-
30	T41344	1	PANEL	L.H. (SOUND REDUCTION)
30	T41345	1	PANEL	R.H. (SOUND REDUCTION)
31	T41341	2	Isolator	(SOUND REDUCTION)
32	T41342	1	Isolator	(SOUND REDUCTION)
33	28H1656	2	BUSHING	1/2" X 1-1/4" (WITH SOUND REDUCTION PANELS)
34	12H304	2	Lock Washer	3/8"
35	14H812	2	NUT	3/8"
..	-	1	Part 40	ENGINE SIDE, (SET OF TWO) ( AT34631, NO LONGER AVAILABLE)

ENGINE SIDE SHIELDS (SERIAL NO. 001700- ) [02I20]
