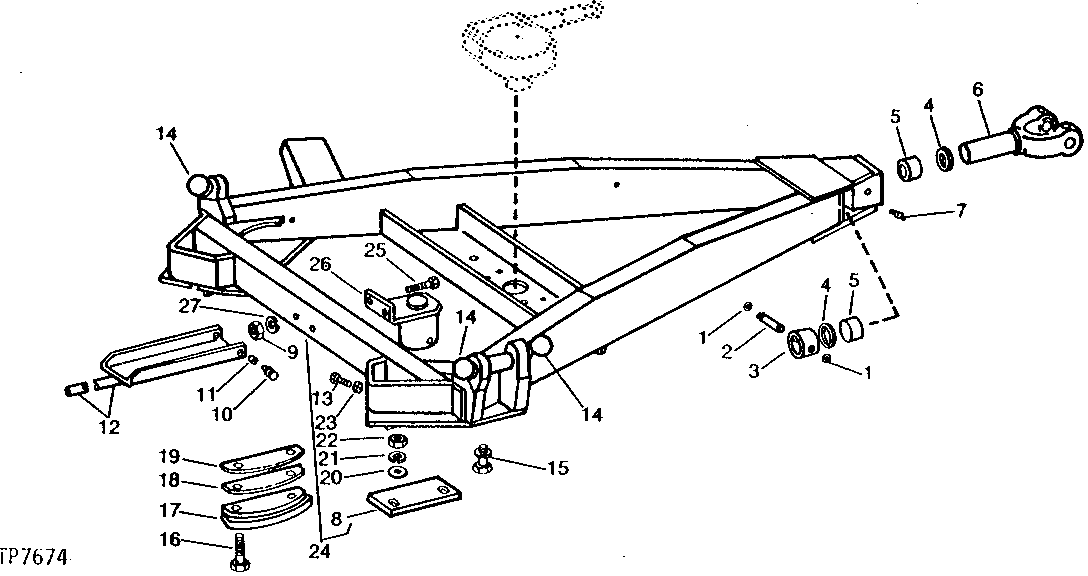

DRAFT FRAME (SERIAL NO. -004643) [02G14]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	W23122	2	Snap Ring	(SUB FOR M40808)
2	U42381	1	PIN FASTENER	-
3	U42390	1	BUSHING	-
4	T60032	2	WASHER	(SUB FOR U42112)
5	U42379	2	BUSHING	-
6	U42403	1	YOKE	-
7	JD7842	1	Lubrication Fitting	1/4"
8	U42184	4	STRAP	-
9	14H1040	2	Nut	1/2"
10	19H2676	2	Cap Screw	3/8" X 1"
10	12H304	2	Lock Washer	3/8"
10	24H1307	1	Washer	13/32" X 1" X 1/16"
11	28H1519	2	Washer	3/8" X .375"
12	-	1	Part 14	( AU41574 USE IF AVAILABLE)
13	19H1734	4	Cap Screw	5/8" X 2"
13	19H3244	4	Cap Screw	5/8" X 2-1/4", (SUB FOR 19H2261, THIS APPLICATION)
14	U42099	3	BALL	-
15	19H2994	4	Cap Screw	HS, SAE 8, 5/8" X 1-1/2"
15	12H294	4	Lock Washer	5/8"
16	19H3457	8	Cap Screw	1" X 4"
16	19H3556	8	Cap Screw	HS, SAE 8, 1" X 4-1/4"
17	U41861	4	WEAR PLATE	-
17	T165187	4	WEAR PLATE	(SUB FOR T36235)
18	U42383	1	SHIM	1.52 MM (.060")
19	U42384	1	SHIM	.91 MM (.036")
20	24H1460	4	WASHER	1-1/32" X 2-5/8" X 1/4", (REAR)
20	24H1459	4	Washer	1-1/32" X 2-1/4" X 1/4", (FRONT)
21	12H234	8	LOCK WASHER	1"
22	14H1048	8	Nut	1"
23	14H821	4	Nut	5/8"
24	-	1	Part 31	( AU41381 AND AT36397 NO LONGER AVAILABLE)
24	AT36397	1	FRAME	-
25	19H3550	2	Cap Screw	1/2" X 4"
26	AU41573	1	MANIFOLD	-
27	12H301	2	Lock Washer	1/2"

DRAFT FRAME (SERIAL NO. -004643) [02G14]
