DIFFERENTIAL DRIVE SHAFT AND GEAR [01I18]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

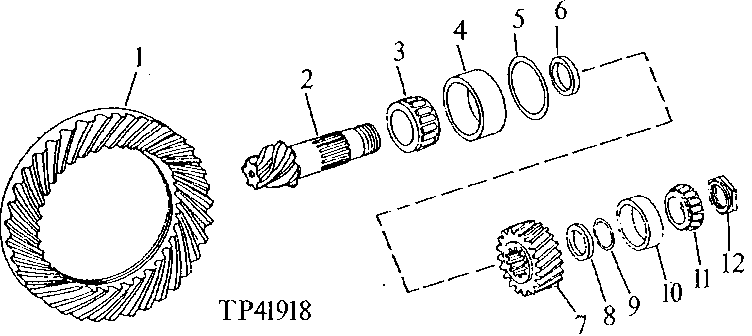

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	-	1	Part 1	(A) (C) (MARKED R41764) (SUB AR63798)
2	-	1	Part 2	(A) (C) (MARKED R41766) (SUB AR63798)
3	JD8970	1	Bearing Cone	-
4	JD8264	1	Bearing Cup	-
5	-	1	Part 5	(A) (C) (D) ( R26227 NOT AVAILABLE) .08 MM (.003")
5	-	1	Part 6	(A) (C) (D) ( R26228 NOT AVAILABLE) .13 MM (.005")
5	R26229	1	Shim	.25 MM (.010")
6	R38178	1	BUSHING	-
7	R84482	1	Gear	(SUB FOR R41768)
8	R33121	1	WASHER	-
9	-	1	Part 12	(E) .13 MM (.005") ( R33414 NOT AVAILABLE) (SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION)
9	-	1	Part 17	(A) (C) (E) .38 MM (.015") STEEL ( R51199 NO LONGER AVAILABLE)
9	-	1	Part 16	(A) (C) (E) .030 MM (.012") STEEL ( R51198 NO LONGER AVAILABLE)
9	-	1	Part 15	(A) (C) (E) .25 MM (.010") STEEL ( R51198 NO LONGER AVAILABLE)
9	-	1	Part 14	(A) (C) (E) .18 MM (.007") STEEL ( R51196 NO LONGER AVAILABLE)
9	-	1	Part 13	(E) .25 MM (.010") ( R33415 NOT AVAILABLE) (SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION)
9	-	1	Part 11	(E) .08 MM (.003") ( R33413 NOT AVAILABLE) (SUB R51196, R51197, (2) R51198, R51199 AND R51200, THIS APPLICATION)
10	JD8258	1	Bearing Cup	-
11	JD8971	1	Bearing Cone	-
12	R33219	1	LOCK NUT	(SUB R51200, R51196, R51197, (2) R51198 AND R51199, THIS APPLICATION)
12	R51200	1	Lock Nut	(A) (C)
..	AR48550	1	GEAR	WITH SHIMS (MATCHED SET) (SUB AR63798)
..	AR63798	1	GEAR	WITH HOUSING AND SHIMS, (MATCHED SET)
