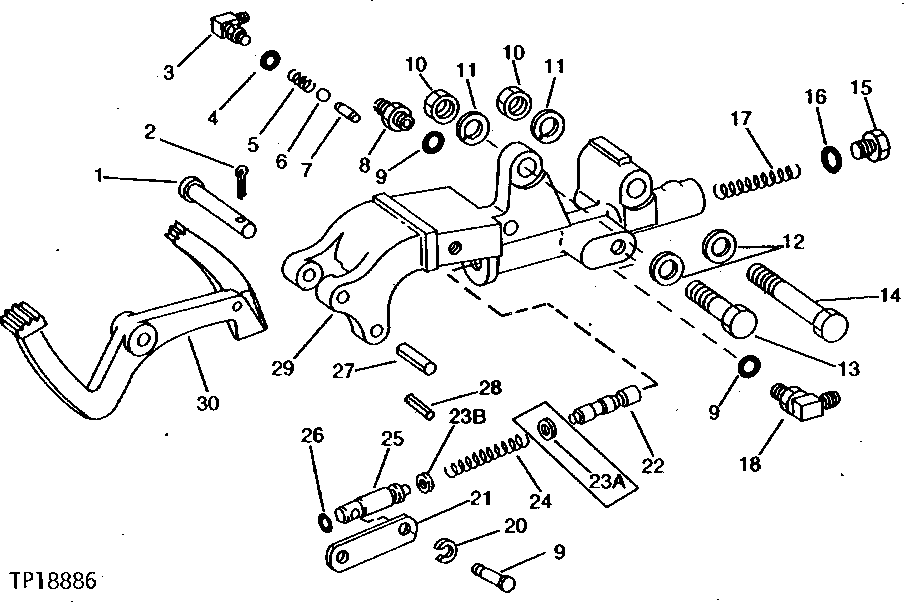

DIFFERENTIAL CONTROL VALVE (SERIAL NO. 001700- ) [01I17]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R46866	1	PIN FASTENER	-
2	11M7059	1	Cotter Pin	3.200 X 20 MM
3	AT32336	1	ELBOW FITTING	ADJUSTABLE, 90° (SUB FOR AT32336)
4	R26287	1	O-Ring	-
5	R26373	1	Spring	-
6	400R	1	Ball	-
7	R33058	1	NEEDLE ROLLER	-
8	R27272	1	Fitting	-
9	R26286	2	O-Ring	-
10	14H886	2	Nut	9/16"
11	12H317	2	Lock Washer	9/16"
12	24H1365	4	Washer	21/32" X 1" X 0.090"
13	19H3653	1	Cap Screw	9/16" X 2"
14	19H2963	1	CAP SCREW	9/16" X 3-1/2"
15	R27218	1	Fitting Plug	-
16	R26448	1	O-Ring	-
17	R31698	1	SPRING	(SUB R82134 AND R74418, THIS APPLICATION)
17	R74418	1	Spring	-
18	RE56322	1	Tee Fitting	ADJUSTABLE, 90°, (SUB FOR AR26771 OR AT32333)
19	R26385	2	PIN FASTENER	-
20	R26386	2	SNAP RING	-
21	R79135	2	STRAP	(SUB FOR R46902)
22	R46855	1	SPOOL VALVE	(SUB R82134 AND R74418, THIS APPLICATION)
22	R79134	1	VALVE	(SUB FOR R74417) (SUB R82134 AND (11) R82133)
22	R82134	1	VALVE	-
22	R85362	1	VALVE	-
24	R46862	1	Spring	-
25	R86162	1	PLUNGER	(SUB FOR R46863 AND R68648)
25	R86162	1	PLUNGER	(SUB FOR R68648)
26	F3353R	1	O-Ring	-
27	E63018	1	Spring Pin	21/64" X 1-3/4", (SUB FOR 34H188)
28	34H286	1	Spring Pin	3/16" X 1-1/2", 5/16" X 1-3/4"
29	R46819	1	Housing	(SUB R86767)
29	R86767	1	HOUSING	-
30	R48247	1	PEDAL	-
23A	R82133	11	SHIM	.508 MM (.020") (SUB FOR R46901)
23B	R79134	1	VALVE	.508 MM (.020")
23B	B1664R	1	SHIM	.76 MM (.030")

DIFFERENTIAL CONTROL VALVE (SERIAL NO. 001700- ) [01I17]
