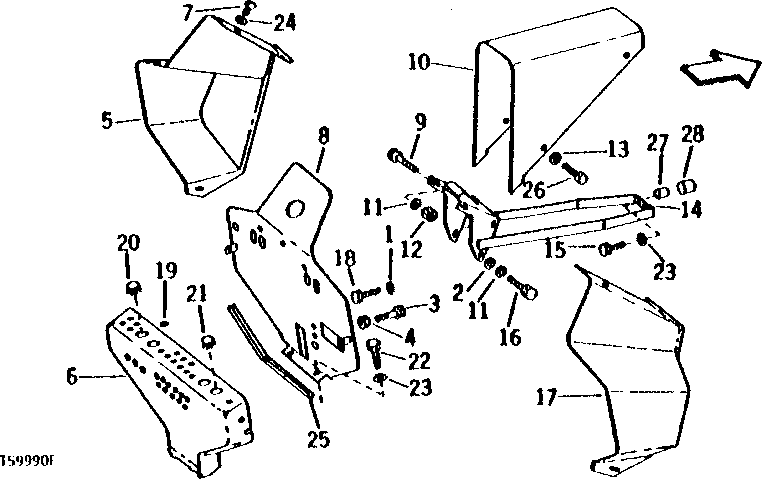

CONTROL PANEL AND STEERING VALVE SUPPORT (SERIAL NO. -002365) [02H12]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	12H293	3	Lock Washer	7/16"
2	24H1305	2	Washer	13/32" X 13/16" X 0.065"
3	19H3031	1	Cap Screw	3/8" X 2-1/2"
4	14H812	1	NUT	3/8"
5	U42255	1	COVER	(SUB T37670, U46357 AND T37671)
5	U46361	1	COVER	L.H. (SUB T37670)
5	T37670	1	VALVE COVER	L.H.
6	-	1	Part 8	( U42258 USE IF AVAILABLE)
6	T34890	1	INSTRUMENT PANEL	-
7	21H1303	4	Screw	1/4" X 3/4"
7	21H1303	6	Screw	1/4" X 3/4"
8	AU41412	1	PANEL	(SUB AT39530)
8	AT53654	1	PANEL	(SUB FOR AT36399 AND AT39530)
9	19H2676	2	Cap Screw	3/8" X 1"
10	U42256	1	COVER	(SUB U46357)
10	U46357	1	COVER	-
11	12H304	2	Lock Washer	3/8"
12	14H812	3	NUT	3/8"
13	19H2664	4	Cap Screw	5/16" X 3/4"
14	AT33954	1	SUPPORT	(A)
14	-	1	Part 20	(B) ( AU41411, NO LONGER AVAILABLE)
15	19H2880	1	CAP SCREW	1/2" X 1-3/4"
16	19H1648	4	Cap Screw	3/8" X 3/4"
17	U42254	1	COVER	(SUB T37670, U46357 AND T37671)
17	U46360	1	COVER	R.H. (SUB T37671)
17	T37671	1	VALVE COVER	R.H.
18	19H1924	3	Cap Screw	7/16" X 3/4"
19	-	4	Part 28	( H20546, NO LONGER AVAILABLE)
19	U45112	9	PLUG	-
20	U45112	2	PLUG	-
21	N31583	1	PLUG	-
22	19H2898	2	Cap Screw	1/2" X 1-1/4"
23	12H301	4	Lock Washer	1/2"
24	24M7207	4	Washer	8.400 X 24 X 2 MM
24	24H1224	6	Washer	11/32" X 1" X 1/16"
25	T38413	1	Hose Guard	3.17 MM X 304.8 MM (1/8" X 12")
26	24H1224	4	Washer	11/32" X 1" X 1/16"
26	24M7178	4	Washer	10.500 X 30 X 2.500 MM
27	28H1596	1	WASHER	1/2" X .312"
28	28H935	1	SPACER	1/2" X .438"

CONTROL PANEL AND STEERING VALVE SUPPORT (SERIAL NO. -002365) [02H12]
