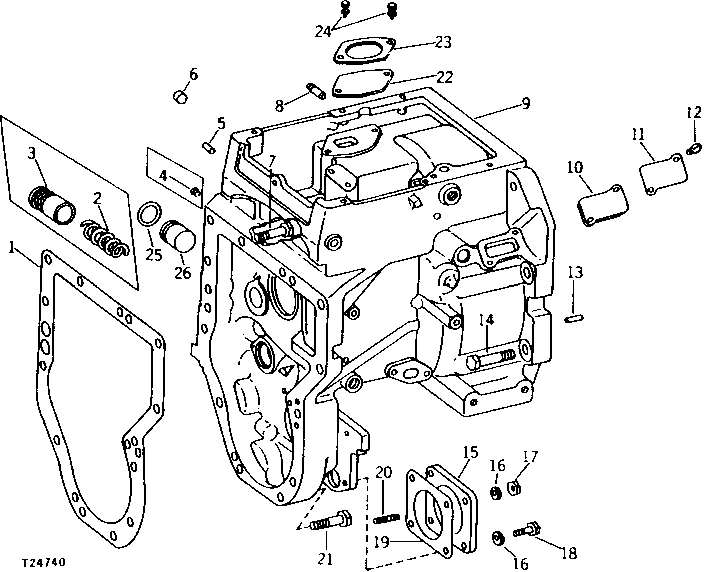

CLUTCH HOUSING (SERIAL NO. -406497) [01G25]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R33519	1	GASKET	(SUB FOR R34091)
2	R33526	1	SPRING	CLUTCH OIL ACCUMULATOR PISTON
3	R33525	1	PISTON	CLUTCH OIL ACCUMULATOR
4	R46373	1	PIPE PLUG	ACCUMULATOR BYPASS ORIFICE, (SUB FOR R33528)
5	R1612R	2	Dowel Pin	CLUTCH OIL VALVE HOUSING
6	R28361	1	DOWEL PIN	-
7	19H2599	2	Cap Screw	5/8" X 2-1/2"
8	R33837	1	PIN FASTENER	CLUTCH PEDAL RETURN SPRING
9	AR34060	1	HOUSING	WITH STUDS AND PINS, (MARKED R33060 OR R45380)
10	R67989	1	Gasket	TIMING HOLE COVER, (SUB FOR R31494)
11	R31493	1	Cover	-
12	21H1318	2	Screw	0.216" X 1/2"
13	C1220R	2	DOWEL PIN	-
14	19H1425	6	CAP SCREW	3/4" X 2-3/4"
15	R42425	1	COVER	POWER SHAFT OPENING, FRONT
16	12H301	4	Lock Washer	1/2"
17	14H1040	2	Nut	1/2"
18	19H2898	2	Cap Screw	1/2" X 1-1/4"
19	R33236	1	GASKET	-
20	R32101	2	STUD	-
21	19H2411	2	Cap Screw	3/4" X 2-1/2"
21	19H2788	4	CAP SCREW	3/4" X 3"
21	19H3167	2	Cap Screw	3/4" X 3-1/4"
21	19H2825	2	Cap Screw	3/4" X 4-1/4"
22	R34212	1	GASKET	-
23	R33963	1	STRAP	-
24	19H2127	2	Cap Screw	5/16" X 7/8"
24	12H303	2	Lock Washer	5/16"
25	R48594	1	SEAL	-
26	R47443	1	PIN FASTENER	-

CLUTCH HOUSING (SERIAL NO. -406497) [01G25]
