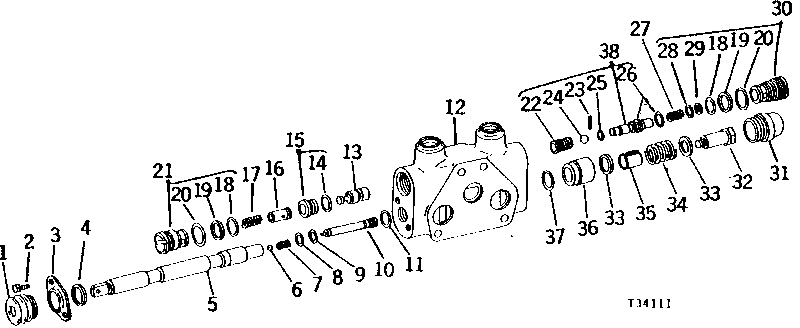

CIRCLE AND BLADE SIDE-SHIFT CONTROL VALVES [01J06]

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42800	1	BOOT	(A)
2	21H1294	2	Screw	0.190" X 5/16"
3	U42790	1	RETAINER	-
4	U42796	1	WASHER	-
5	-	1	Part 5	(SUB AU41850)
5	-	1	Part 6	(SUB AT74670)
6	H60816	1	Ball	-
7	U42797	1	SPRING	-
8	U42902	1	O-Ring	(A)
9	A3917R	1	O-Ring	(A)
10	U42901	1	PLUG	-
11	T107142	1	O-RING	(A) (SUB FOR H36256, THIS APPLICATION)
12	-	1	Part 14	(SUB AT74670)
12	-	1	Part 13	(SUB AU41850)
13	AU41860	1	PLUNGER	(SUB AT74664)
13	AT74664	1	PLUNGER	-
14	32246	1	O-Ring	(A) (SUB FOR R459R, THIS APPLICATION)
15	AU41857	1	SEAT	-
16	U42786	1	POPPET	-
17	N85304	1	SPRING	-
18	P48347	2	O-Ring	(A)
19	H60330	2	BACK-UP RING	(A)
20	N130510	2	O-Ring	(A) (SUB FOR 32240, THIS APPLICATION)
21	AU41855	1	PLUG	-
22	-	1	Part 26	(SUB AT74665)
22	-	1	Part 25	(SUB AU41862)
23	-	1	Part 27	(SUB AU41862)
23	-	1	Part 28	(SUB AT74665)
24	-	1	Part 29	(SUB AU41862)
24	-	1	Part 30	(SUB AT74665)
25	U40962	1	O-Ring	(A)
26	32246	1	O-Ring	(SUB FOR R459R, THIS APPLICATION)
27	U43630	1	SPRING	(SUB FOR U42805)
28	T73704	1	O-RING	(A) (SUB FOR P46051, THIS APPLICATION)
28	T76392	1	O-RING	(A)
29	-	1	Part 36	(A) ( U42806 NO LONGER AVAILABLE)
29	-	1	Part 37	(A) ( T76393 NO LONGER AVAILABLE)
30	AT74663	1	PLUG	-
30	AU41858	1	PLUG	(SUB AT74667)
31	AU42362	1	CAP	(SUB FOR AU41859)
32	U42794	1	SCREW	-
33	N31767	2	WASHER	-
34	U43629	1	SPRING	(SUB FOR U42798)
35	U43626	1	BUSHING	(SUB FOR U42799)
36	U43627	1	BUSHING	(SUB FOR U42804)
37	T107141	1	O-Ring	(A) (SUB FOR R375R, THIS APPLICATION)
38	AU41862	1	PLUNGER	WITH POPPET, (SUB AT74667)
38	AT74665	1	PLUNGER	WITH POPPET
..	AU41850	2	VALVE	(SUB AT74670)
..	AT74670	2	SPOOL VALVE	-
..	AT74666	1	SEAL KIT	(ALL PARTS MARKED(A)) (SUB FOR AU41864) (SUB FOR AT73424)

CIRCLE AND BLADE SIDE-SHIFT CONTROL VALVES [01J06]

Нет текстового описания
