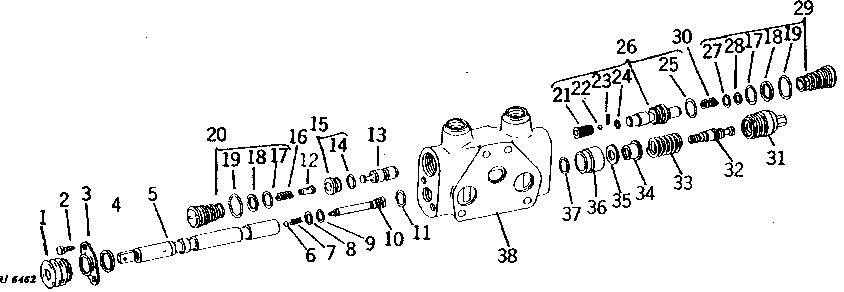

BLADE-LIFT AND SCARIFIER CONTROL VALVE [01J04]

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	U42800	1	BOOT	(A)
2	21H1294	2	Screw	0.190" X 5/16"
3	U42790	1	RETAINER	-
4	U42796	1	WASHER	-
5	-	1	Part 5	(SUB AT38774)
5	-	1	Part 6	(SUB AT74662)
6	H60816	1	Ball	-
7	U42797	1	SPRING	-
8	U42902	1	O-Ring	(A)
9	A3917R	1	O-Ring	(A)
10	U42901	1	PLUG	-
11	T107142	1	O-RING	(A) (SUB FOR H36256, THIS APPLICATION)
12	U42786	1	POPPET	-
13	AT74664	1	PLUNGER	-
13	AU41860	1	PLUNGER	(SUB AT74664)
14	32246	1	O-Ring	(A) (SUB FOR R459R, THIS APPLICATION)
15	AU41857	1	SEAT	-
16	N85304	1	SPRING	-
17	P48347	2	O-Ring	(A)
18	H60330	2	BACK-UP RING	(A)
19	N130510	2	O-Ring	(A) (SUB FOR 32240, THIS APPLICATION)
20	AU41855	1	PLUG	-
21	-	1	Part 23	(SUB AU41862)
21	-	1	Part 24	(SUB AT74665)
22	-	1	Part 25	(SUB AU41862)
22	-	1	Part 26	(SUB AT74665)
23	-	1	Part 27	(SUB AU41862)
23	-	1	Part 28	(SUB AT74665)
24	U40962	1	O-Ring	(A)
25	32246	1	O-Ring	(A) (SUB FOR R459R, THIS APPLICATION)
26	AU41862	1	PLUNGER	WITH POPPET, (SUB AT74667)
26	AT74665	1	PLUNGER	WITH POPPET
27	T73704	1	O-RING	(A) (SUB FOR P46051, THIS APPLICATION)
27	T76392	1	O-RING	(A)
28	-	1	Part 35	(A) ( U42806 NO LONGER AVAILABLE)
28	-	1	Part 36	(A) ( T76393 NO LONGER AVAILABLE)
29	AU41858	1	PLUG	(SUB AT74667)
29	AT74663	1	PLUG	-
30	U43630	1	SPRING	(SUB FOR U42805)
31	AU42361	1	CAP	(SUB FOR AU41861)
32	U42793	1	DETENT	-
33	U43628	1	SPRING	(SUB FOR U42801)
34	U42802	1	ROUND RETAINER	-
35	H26239	1	Washer	-
36	U43627	1	BUSHING	(SUB FOR U42804)
37	T107141	1	O-Ring	(A) (SUB FOR R375R, THIS APPLICATION)
38	-	1	Part 47	(SUB AT38774)
38	-	1	Part 48	(SUB AT74662)
..	AU41853	3	VALVE	(SUB AT38774)
..	AT38774	3	VALVE	(SUB AT74662)
..	AT74662	3	SPOOL VALVE	-
..	AT74666	1	SEAL KIT	(ALL PARTS MARKED(A)) (SUB FOR AU41864) (SUB FOR AT73424)
