Открытый узел

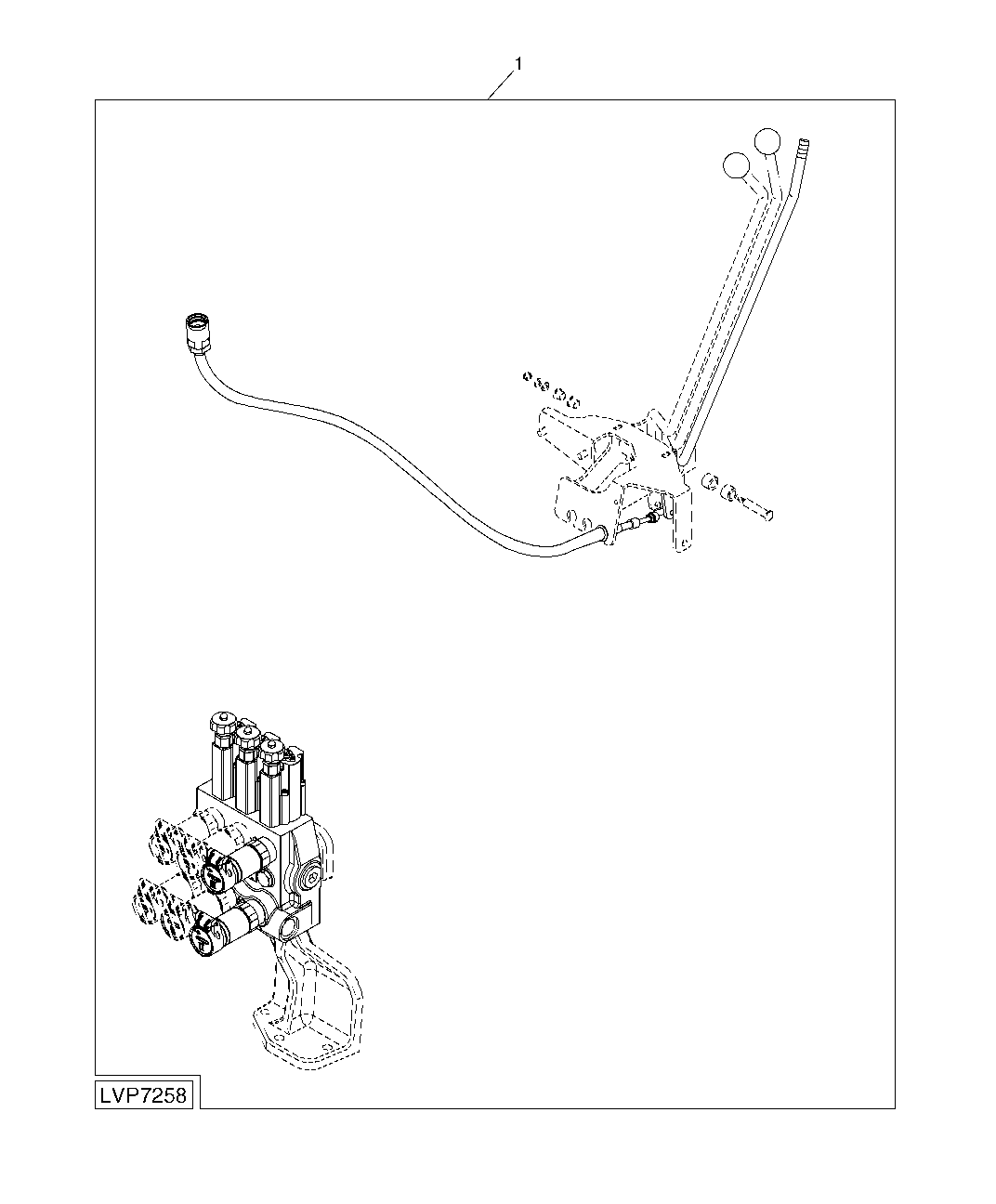

TRIPLE DELUXE REAR SCV (STRADDLE MOUNT)

TRIPLE DELUXE REAR SCV (STRADDLE MOUNT)

TRIPLE DELUXE REAR SCV (STRADDLE MOUNT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

TRIPLE DELUXE REAR SCV (STRADDLE MOUNT)

Нет текстового описания

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	LVB25692	1	Field Installation Kit	(WITHOUT HI-CROP OPTION) (WITH TRIPLE MID AND NO REAR SCV: ALSO ORDER <service-part>RE217126</service-part > AND <service-part>RE217122</service-part>) (WITHOUT MID AND REAR SCV: ALSO ORDER <service-part>RE194460</service-part > AND <service-part>RE223817</service-part>) (UPGRADE FROM 0 TO 3 REAR SCV: ALSO ORDER <service-part>LVB25725</service-part > AND (2) <service-part>RE194856</service-part>) COMPLETE GOODS (INCLUDES VALVE, CABLES AND LEVER)
1	LVB25692	1	Field Installation Kit	(WITH HI-CROP OPTION) (WITH TRIPLE MID AND NO REAR SCV: ALSO ORDER <service-part>RE233117</service-part > AND <service-part>RE217122</service-part>) (WITHOUT MID AND REAR SCV: ALSO ORDER <service-part>RE194460</service-part > AND <service-part>RE223817</service-part>) (UPGRADE FROM 0 TO 3 REAR SCV: ALSO ORDER <service-part>LVB25725</service-part > AND (2) <service-part>RE194856</service-part>) COMPLETE GOODS (INCLUDES VALVE, CABLES AND LEVER)
