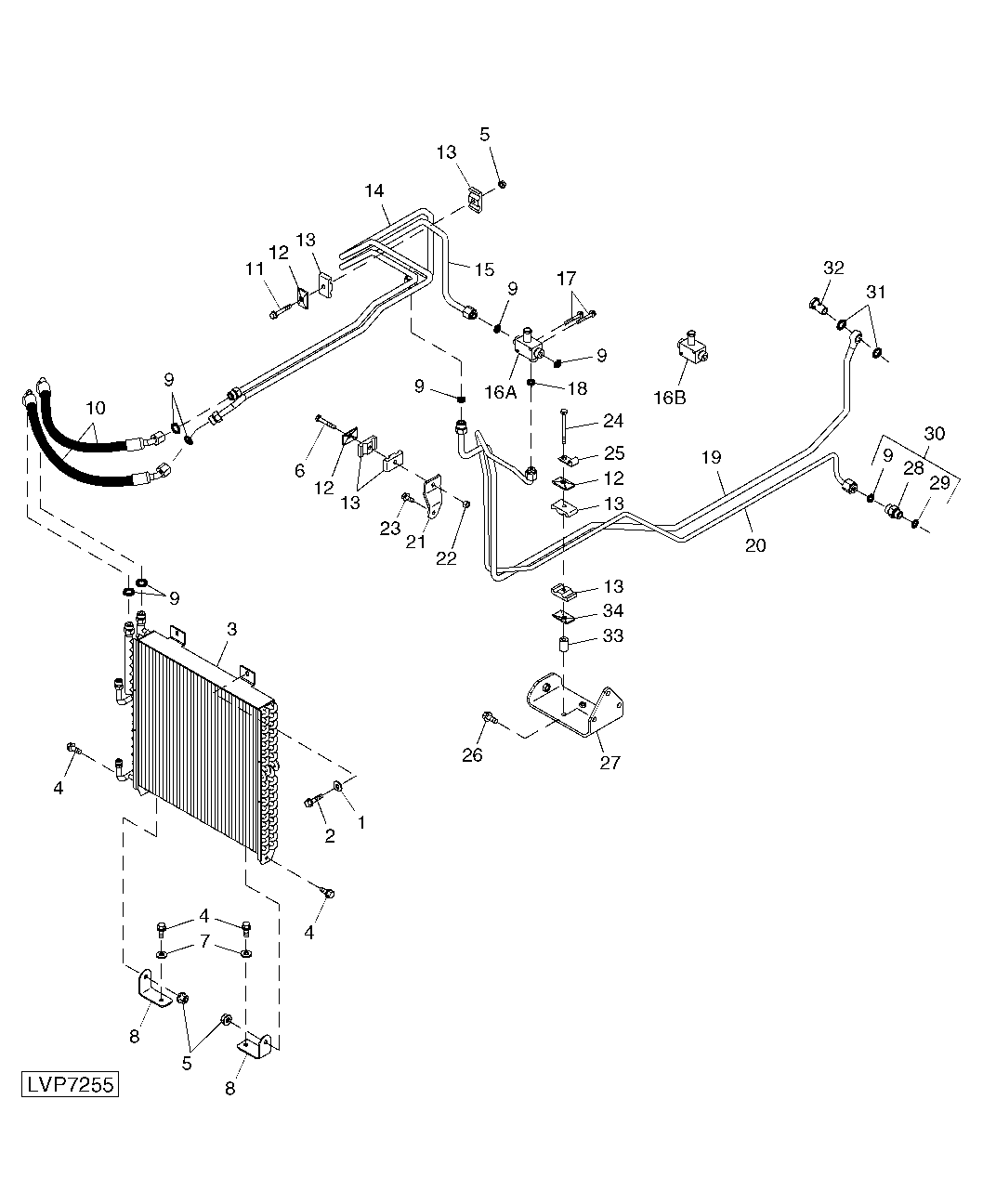

HYDRAULIC OIL COOLER AND LINES (SYNCSHUTTLE™ TRANSMISSION) (CAB)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	24M7100	2	Washer	6.600 X 22 X 2 mm
2	19M7775	2	Screw	M6 X 16, HS=10.9
3	RE229585	1	Oil Cooler	-
4	19M7865	4	Screw	M8 X 16, HS=10.9
5	14M7298	3	Flange Nut	M8
6	19M7164	1	Cap Screw	M8 X 50
7	24M7298	2	Washer	8.400 X 25 X 2 mm
8	R198586	2	Angle	-
9	T77857	7	O-Ring	(2WD)
9	T77857	8	O-Ring	(MECHANICAL FRONT WHEEL DRIVE)
10	RE286042	1	Hydraulic Hose	RETURN
10	RE286041	1	Hydraulic Hose	SUPPLY
10	RE244531	2	Hydraulic Hose	(SUB FOR RE212303 ) (SUB RE286041 AND RE286042)
11	19M8319	1	Screw	M8 X 50, HS=10.9
12	H121168	3	Plate	-
13	H135156	6	Clamp	-
14	RE240673	1	Oil Line	RETURN
15	RE224452	1	Oil Line	SUPPLY
17	19M8321	2	Screw	M6 X 45, HS=10.9
18	T77613	1	O-Ring	(MECHANICAL FRONT WHEEL DRIVE)
19	RE242352	1	Oil Line	-
20	RE195825	1	Oil Line	(MECHANICAL FRONT WHEEL DRIVE)
21	R223532	1	Bracket	-
22	14M7327	1	Lock Nut	M8
23	19M7866	1	Screw	M8 X 20, HS=10.9
24	19M8038	1	Cap Screw	(WITHOUT MID SCV) M8 X 85, HS=10.9
24	19M8318	1	Screw	(WITH MID SCV) M8 X 45, HS=10.9
25	T13914	1	Clamp	(MECHANICAL FRONT WHEEL DRIVE)
26	19M7865	3	Screw	(WITHOUT MID SCV) M8 X 16, HS=10.9
27	RE215845	1	Bracket	(WITHOUT MID SCV)
28	38H5003	1	Adapter Fitting	(MECHANICAL FRONT WHEEL DRIVE)
29	51M7043	1	O-Ring	(MECHANICAL FRONT WHEEL DRIVE) 15.300 X 2.200 mm
30	61M5003	1	Adapter Fitting	(MECHANICAL FRONT WHEEL DRIVE)
31	51M4241	2	Sealing Ring	-
32	38M7007	1	Hollow Screw	-
33	R117351	1	Spacer	(WITHOUT MID SCV)
34	H121163	1	Strap	(WITHOUT MID SCV)
16A	RE198507	1	Valve	(MECHANICAL FRONT WHEEL DRIVE)
16B	RE198506	1	Valve	(2WD)

HYDRAULIC OIL COOLER AND LINES (SYNCSHUTTLE™ TRANSMISSION) (CAB)
