Открытый узел

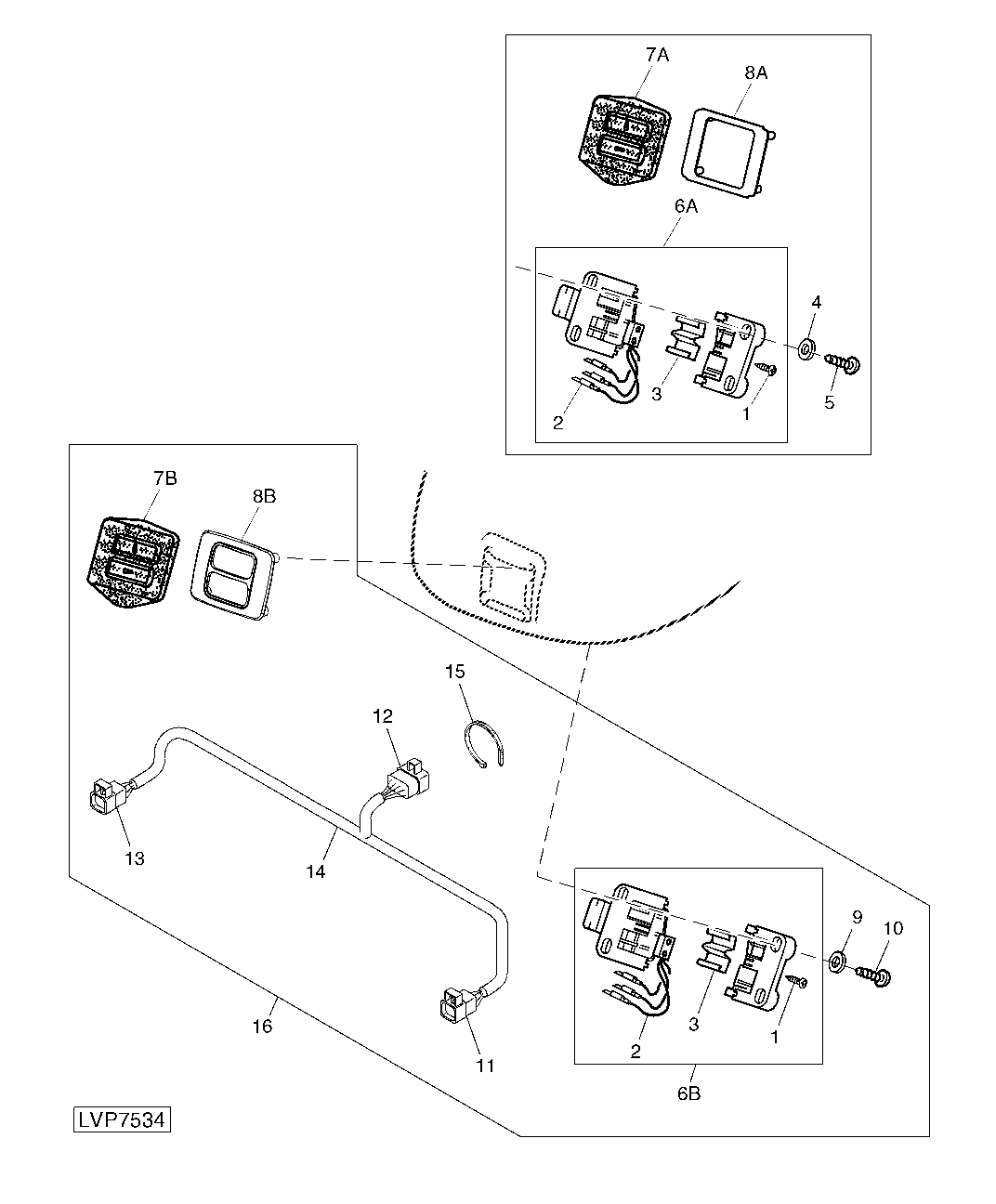

ELECTRO-HYDRAULIC HITCH FENDER SWITCH (RIGHT HAND) (FIELD INSTALLATION KIT)

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	37M7235	1	Screw	(ISOLATED OPEN OPERATOR STATION / CAB)
2	AL81777	1	Elec. Connector Terminal	(ISOLATED OPEN OPERATOR STATION / CAB)
3	L168608	1	Clip	(ISOLATED OPEN OPERATOR STATION / CAB) (SUB FOR L101021)
4	24M7054	4	Washer	(ISOLATED OPEN OPERATOR STATION / CAB) 6.400 X 12 X 1.600 mm, (USE WITH AL81040 OR AL170735 AND RE212783)
5	19M9054	4	Screw	(ISOLATED OPEN OPERATOR STATION / CAB) M4 X 12, HS=10.9, (USE WITH AL81040 OR AL170735 AND RE212783)
9	24M7117	4	Washer	(ISOLATED OPEN OPERATOR STATION / CAB) 4.300 X 9 X 0.800 mm, (USE WITH AL172871 AND R234273)
10	37M7411	4	Screw	(ISOLATED OPEN OPERATOR STATION / CAB) (USE WITH AL172871 AND R234273)
11	57M7260	1	Elec. Connector Housing	(ISOLATED OPEN OPERATOR STATION / CAB) RH FENDER SWITCH
12	57M7263	1	Elec. Connector Housing	(ISOLATED OPEN OPERATOR STATION / CAB) (TO REAR HARNESS)
13	57M7260	1	Elec. Connector Housing	(ISOLATED OPEN OPERATOR STATION / CAB) LH FENDER SWITCH
14	RE216951	1	Chassis Wiring Harness	(ISOLATED OPEN OPERATOR STATION / CAB)
15	R44302	6	Tie Band	(ISOLATED OPEN OPERATOR STATION / CAB)
16	RE227205	1	Kit	(ISOLATED OPEN OPERATOR STATION / CAB) (COMPLETE GOODS); SUB FOR LVB25716
6A	AL170735	1	Control	(ISOLATED OPEN OPERATOR STATION / CAB) (USE WITH AL81040 ) (SUB FOR AL81040)
6B	AL172871	1	Control	(ISOLATED OPEN OPERATOR STATION / CAB) (USE WITH R234273 ) (SUB FOR AL81040)
7A	L154458	1	Boot	(ISOLATED OPEN OPERATOR STATION / CAB) (USE WITH RE212783)
7B	L169912	1	Boot	(ISOLATED OPEN OPERATOR STATION / CAB) (USE WITH R234273)
8A	RE212783	1	Support	(ISOLATED OPEN OPERATOR STATION / CAB) METAL, (USE WITH AL81040 OR AL170735)
8B	R234273	1	Frame	(ISOLATED OPEN OPERATOR STATION / CAB) PLASTIC, (USE WITH AL172871)

ELECTRO-HYDRAULIC HITCH FENDER SWITCH (RIGHT HAND) (FIELD INSTALLATION KIT)

Нет текстового описания
