WITH OR WITHOUT PARKING LOCK, RANGE TRANSMISSION

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	L202557	1	Pawl	SUB FOR L153968
2	L78415	1	Bushing	-
3	L150696	1	Pin Fastener	-
4	19M8397	2	Cap Screw	M8 X 50, (10.9)
5	L209240	1	Cam	SUB FOR L102316
6	L154520	2	Thrust Washer	-
7	JD8856	1	Needle Bearing	-
8	L150693	1	Pin Fastener	-
9	34M7215	1	Spring Pin	5 X 35 mm
10	L155639	1	Extension Spring	-
11	L79037	1	Seal	-
12	24M7398	1	Washer	25 X 36 X 1.200 mm
12	24M7375	1	Washer	25 X 36 X 2 mm
12	24M7374	1	Washer	25 X 36 X 1.900 mm
12	24M7373	1	Washer	25 X 36 X 1.800 mm
12	24M7372	1	Washer	25 X 36 X 1.700 mm
12	24M7371	1	Washer	25 X 36 X 1.600 mm
12	24M7370	1	Washer	25 X 36 X 1.500 mm
12	24M7369	1	Washer	25 X 36 X 1.400 mm
12	24M7399	1	Washer	25 X 36 X 1.300 mm
12	24M7452	1	Washer	25 X 36 X 1.100 mm
13	AL164323	1	Arm	(SUB FOR AL82588)
14	34M7259	1	Spring Pin	8 X 32 mm
15	AL79072	1	Support	-
16	19M7162	1	Cap Screw	M8 X 16
17	L80107	2	Bushing	-
18	AL80670	1	Lever	ORDER AL202941
19	24M7386	1	Washer	13 X 19 X 1.500 mm
20	40M7253	1	Snap Ring	-
21	L80167	1	Torsion Spring	-
22	L100761	1	Rod	-
23	24M7055	2	Washer	8.400 X 16 X 1.600 mm
24	11M7079	2	Cotter Pin	2.500 X 12 mm
25	34M5719	1	Spring Pin	4 X 22 mm
26	L78494	2	Bushing	-
27	19M8533	1	Screw	(W/O PARKING LOCK) M10 X 25, (10.9)
28	30M7008	1	Plug	(W/O PARKING LOCK)
29	AL114390	1	Lever	ORDER AL202946
30	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
31	AL114501	2	Torsion Spring	-
32	AL202941	1	Lever	ORDER AL218197
32	AL218197	1	Lever	-
33	AL202946	1	Lever	-

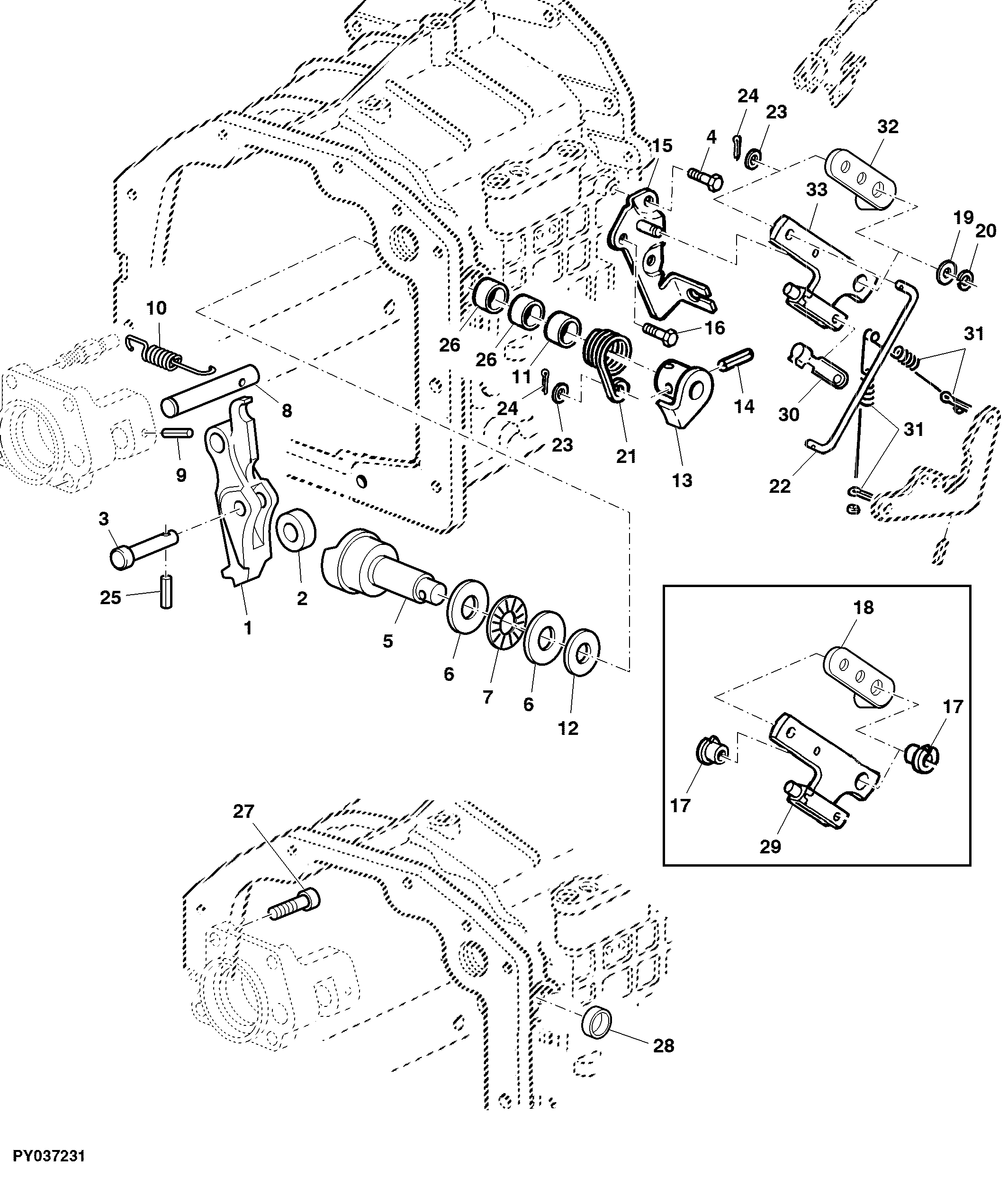

WITH OR WITHOUT PARKING LOCK, RANGE TRANSMISSION
