Открытый узел

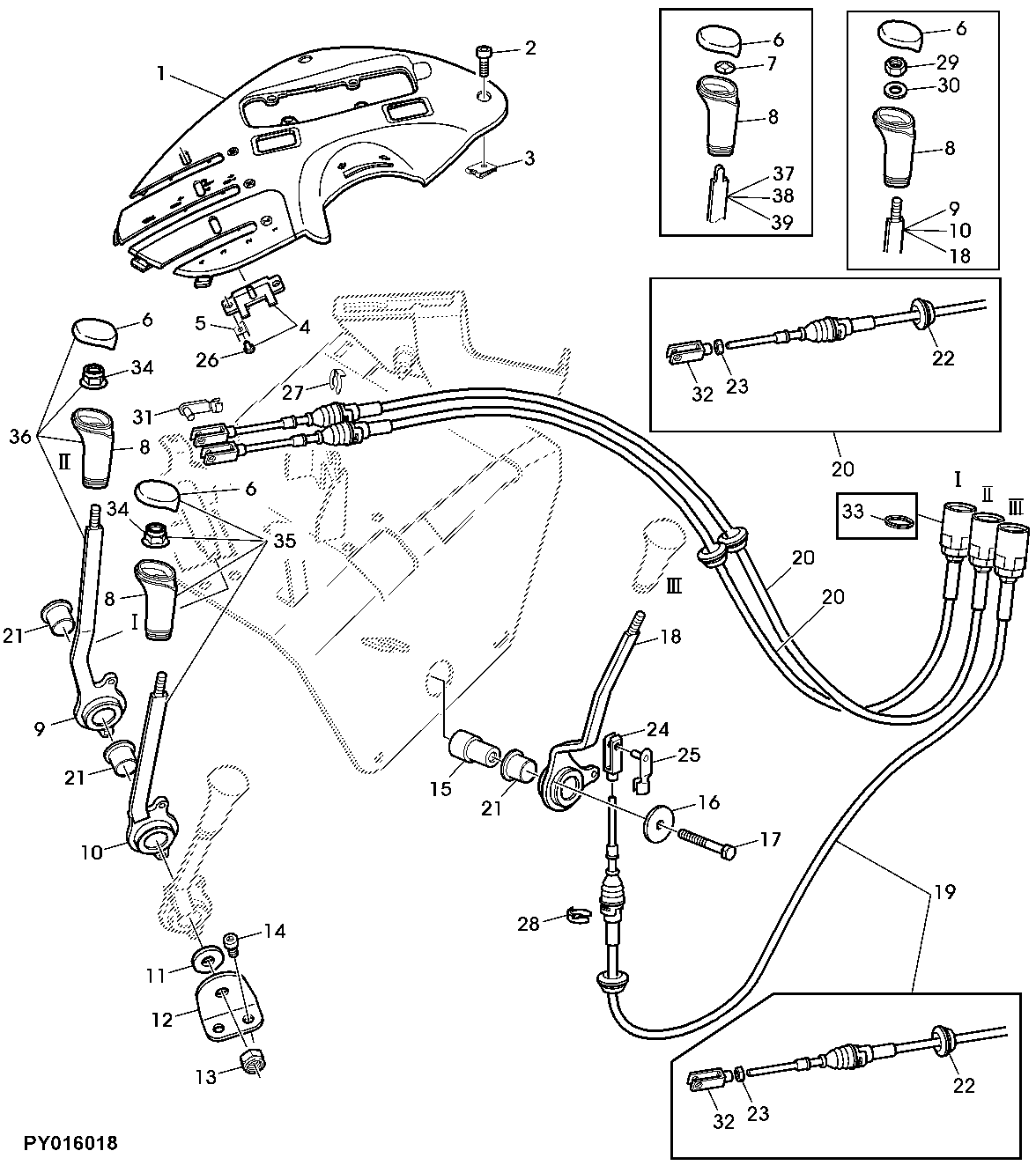

Selective Control Valve, Control Linkage, PowrQuad™

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R202253	1	Panel	-
2	L115292	2	Bolt	-
3	AL115814	2	Nut	-
4	AL81908	1	Lock Kit	(WITH CONTROL VALVE POS.1) (WITH CONTROL VALVE POS.2)
5	R217377	1	Sheet	-
6	L171481	1	Insert	(SUB FOR M113899)
7	R215632	1	Lock Washer	(SUB FOR R201983)
8	L77747	1	Knob	-
9	RE217628	1	Lever	(WITH CONTROL VALVE POS.2)
10	RE217625	1	Lever	(WITH CONTROL VALVE POS.1)
11	L77963	1	Washer	-
12	R204907	1	Bracket	-
13	14M7168	1	Lock Nut	M12
14	19M7647	2	Screw	M8 X 16
15	R201415	1	Bushing	(WITH CONTROL VALVE POS.3)
16	L150084	1	Washer	(WITH CONTROL VALVE POS.3)
17	19M7800	1	Screw	(WITH CONTROL VALVE POS.3) M8 X 50
18	RE223225	1	Lever	(WITH CONTROL VALVE POS.3)
19	RE224840	1	Push Pull Cable	(WITH CONTROL VALVE POS.3) (SUB FOR RE207238)
19	RE260645	1	Push Pull Cable	(WITH CONTROL VALVE POS.3)
20	RE198600	1	Cable	-
20	RE232274	1	Push Pull Cable	(SUB FOR RE221629, RE224841)
20	SJ299862	1	Push Pull Cable	(SUB FOR RE260644)
21	L110766	1	Bushing	-
22	L76801	1	Grommet	(WITH CONTROL VALVE POS.1) (WITH CONTROL VALVE POS.2)
23	14M7272	1	Nut	M6
24	L80052	1	Yoke	-
25	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
26	37M7237	1	Screw	(WITH CONTROL VALVE POS.1) (WITH CONTROL VALVE POS.2)
27	L219493	1	Snap Ring	(WITH CONTROL VALVE POS.1) (WITH CONTROL VALVE POS.2) SUB FOR L79076
28	R206118	1	Snap Ring	(WITH CONTROL VALVE POS.3)
29	14M7273	1	Nut	M8
30	24M7055	1	Washer	8.400 X 16 X 1.600 mm
31	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
31	AL79050	1	Pin Fastener	ORDER 45M7101
31	45M7101	1	Spring Locking Pin	-
32	L80052	1	Yoke	-
32	L80051	1	Yoke	(FOR SJ299862)
33	L41536	1	O-Ring	-
34	14M7396	1	Lock Nut	M8
35	RE217624	1	Lever	(WITH CONTROL VALVE POS.1)
36	RE217627	1	Lever	(WITH CONTROL VALVE POS.2)
37	RE206675	1	Lever	(WITH CONTROL VALVE POS.2) (ORD RE217628, 14M7273, 24M7055)
38	RE206671	1	Lever	(WITH CONTROL VALVE POS.1) (ORD RE217625, 14M7273, 24M7055)
39	RE211908	1	Lever	(WITH CONTROL VALVE POS.3) (ORD RE223225, 14M7273, 24M7055)
..	LG100475	1	Field Installation Kit	(WITH CONTROL VALVE POS.1) FI
..	LG100563	1	Field Installation Kit	(WITH CONTROL VALVE POS.2) FI
..	LG100566	1	Field Installation Kit	(WITH CONTROL VALVE POS.3) FI

Selective Control Valve, Control Linkage, PowrQuad™

Нет текстового описания
