Открытый узел

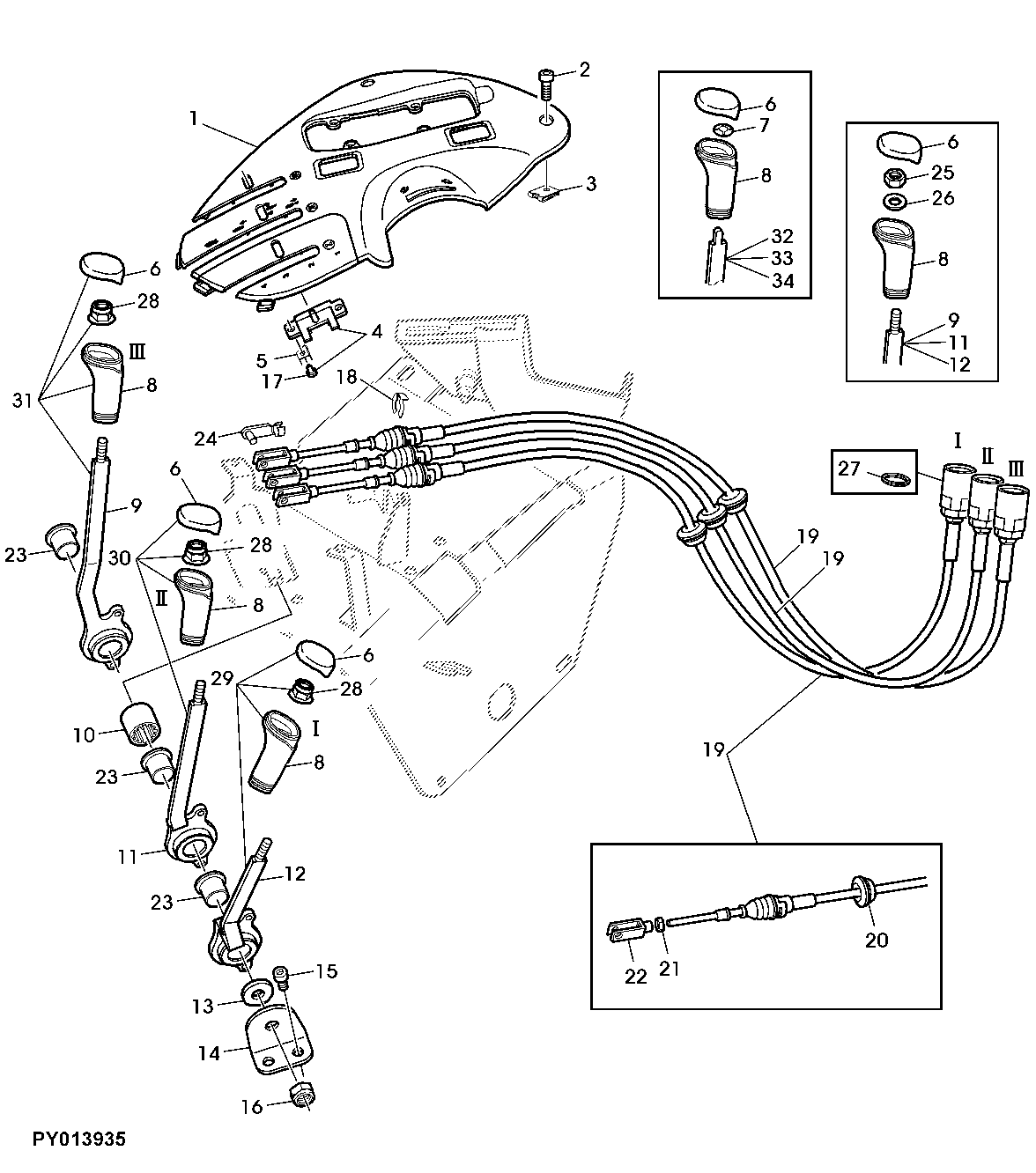

Selective Control Valve, Control Linkage, PowrQuad™ PLUS

Серийный номер

Бренд

John Deere

Читать описание

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	R197200	1	Panel	-
2	L115292	2	Bolt	-
3	AL115814	2	Nut	-
4	AL81908	1	Lock Kit	-
5	R217377	1	Sheet	-
6	L171481	1	Insert	(SUB FOR M113899)
7	R215632	1	Lock Washer	(SUB FOR R201983)
8	L77747	1	Knob	-
9	RE217628	1	Lever	(WITH CONTROL VALVE POS.3)
10	L101931	2	Spacer	(WITH CONTROL VALVE POS.1)
11	RE217625	1	Lever	(WITH CONTROL VALVE POS.2)
12	RE251728	1	Control Lever	(WITH CONTROL VALVE POS.1) (WITH MULTI-FUNCTION UNIT) (SUB FOR RE208858)
12	RE217622	1	Lever	(WITH CONTROL VALVE POS.1)
13	L77963	1	Washer	-
14	R204907	1	Bracket	-
15	19M7647	2	Screw	M8 X 16
16	14M7168	1	Lock Nut	M12
17	37M7237	1	Screw	-
18	L219493	1	Snap Ring	SUB FOR L79076
19	RE198600	1	Cable	-
19	RE232274	1	Push Pull Cable	(SUB FOR RE221629, RE224841)
19	SJ299862	1	Push Pull Cable	(SUB FOR RE260644)
20	L76801	1	Grommet	-
21	14M7272	1	Nut	M6
22	L80052	1	Yoke	-
22	L80051	1	Yoke	(FOR SJ299862)
23	L110766	1	Bushing	-
24	AL79051	1	Pin Fastener	(SUB FOR 45M7080)
24	AL79050	1	Pin Fastener	ORDER 45M7101
24	45M7101	1	Spring Locking Pin	-
25	14M7273	1	Nut	M8
26	24M7055	1	Washer	8.400 X 16 X 1.600 mm
27	L41536	1	O-Ring	-
28	14M7396	1	Lock Nut	M8
29	RE208857	1	Lever	(WITH CONTROL VALVE POS.1) (WITH MULTI-FUNCTION UNIT)
29	RE217621	1	Lever	(WITH CONTROL VALVE POS.1)
30	RE217624	1	Lever	(WITH CONTROL VALVE POS.2)
31	RE217627	1	Lever	(WITH CONTROL VALVE POS.3)
32	RE206675	1	Lever	(WITH CONTROL VALVE POS.3) (ORD RE217628, 14M7273, 24M7055)
33	RE206671	1	Lever	(WITH CONTROL VALVE POS.2) (ORD RE217625, 14M7273, 24M7055)
34	RE206667	1	Lever	(WITH CONTROL VALVE POS.1) (ORD RE217622, 14M7273, 24M7055)
..	LG100474	1	Field Installation Kit	(WITH CONTROL VALVE POS.1) FI
..	LG100475	1	Field Installation Kit	(WITH CONTROL VALVE POS.2) FI
..	LG100563	1	Field Installation Kit	(WITH CONTROL VALVE POS.3) FI

Selective Control Valve, Control Linkage, PowrQuad™ PLUS

Нет текстового описания
