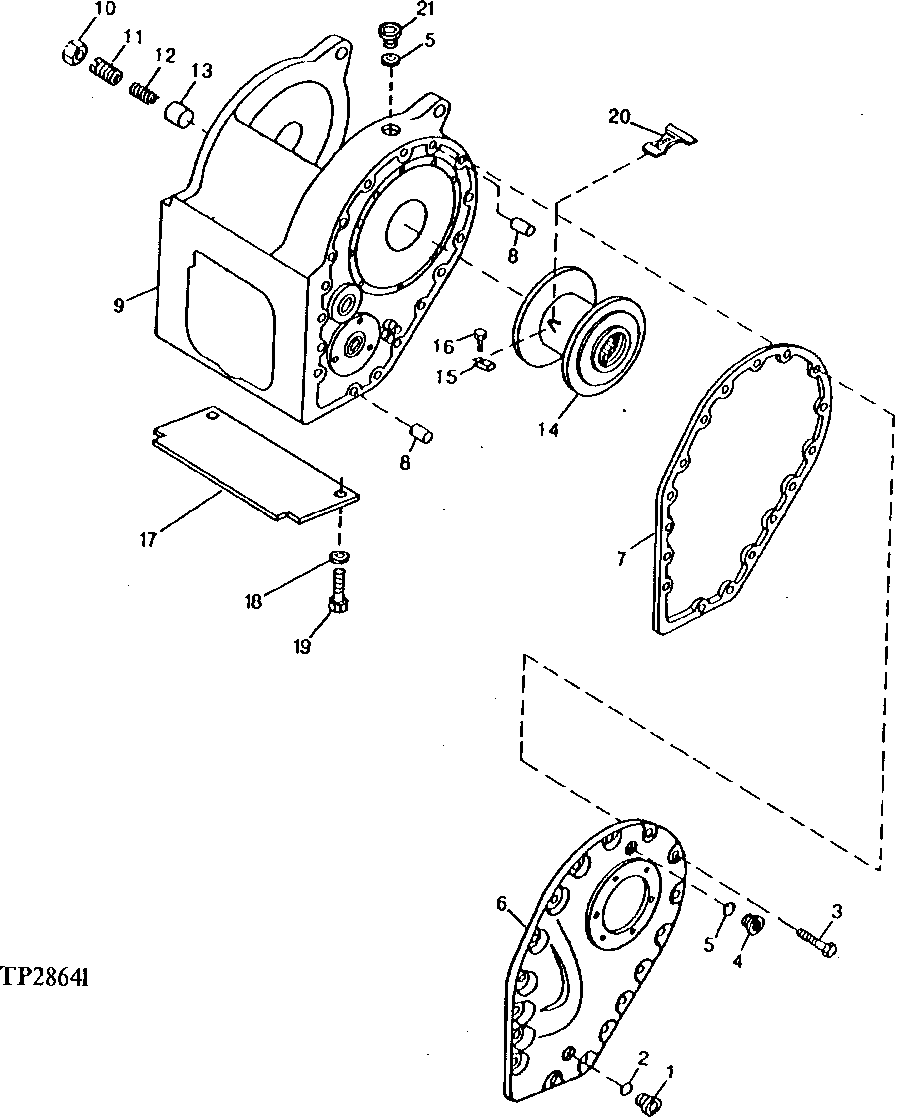

WINCH HOUSING, DRUM AND COVER (MODEL 4000 WINCH)

Серийный номер

Бренд

John Deere

100

баллов

Нашли неточность, знаете аналог или есть вопрос?

Воспользуйтесь этой формой и получите бонусы

№ на схеме	Серийный номер	Кол-во	Название	Описание
1	T64769	1	Drain Plug	-
2	U12547	1	O-Ring	-
3	19M7662	19	Cap Screw	M10 X 30
4	T64769	1	Drain Plug	-
5	R26375	2	O-Ring	-
6	T84700	1	Cover	-
7	T84701	1	Gasket	-
8	T26565	2	Dowel Pin	-
9	T84710	1	Housing	-
10	14M7278	1	Nut	M24
11	T132914	1	Set Screw	-
12	T132915	1	Compression Spring	-
13	T132916	1	Arrestor	-
14	AT151125	1	Drum	(INCLUDES 8 INCH DIAMETER DRUM)
14	AT151025	1	Drum	(CONTAINS 10 INCH DIAMETER DRUM)
14	AT181675	1	Gear	Freespool Ring Gear Kit, USE WITH AT151125 OR AT151025; INCLUDES T84696, (6) U42011, T162677
15	T52368	1	Strap	(FOR USE WITH BREAKAWAY CABLE)
16	19M7662	1	Cap Screw	M10 X 30
17	T133048	1	Plate	(NOT USED THIS APPLICATION)
18	T83426	2	Washer	(NOT USED THIS APPLICATION)
19	19M7597	2	Cap Screw	M20 X 50, (NOT USED THIS APPLICATION)
20	T133170	1	Wedge	FILLER, (FOR USE WITH BREAKAWAY CABLE) (NOT FOR USE WITH 10 INCH DRUM)
20	T84818	1	Wedge	(TO HOLD CABLE - 3/4 INCH) (NOT FOR USE WITH 10 INCH DRUM)
20	T84819	1	Wedge	(TO HOLD CABLE - I INCH) (NOT FOR USE WITH 10 INCH DRUM)
21	R33138	1	Fitting	-

WINCH HOUSING, DRUM AND COVER (MODEL 4000 WINCH)
